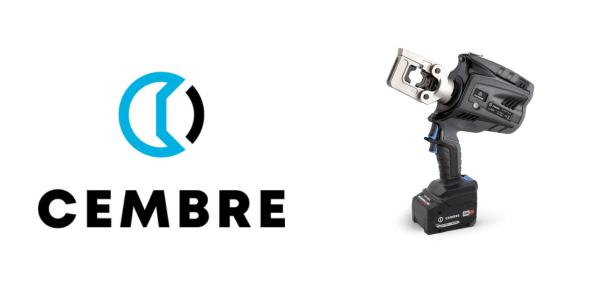

Cembre B500E Battery Crimping Tool (up to 300sqmm cables)

Cembre B500E Battery Crimping Tool (up to 300sqmm cables)

Cembre B500E Battery Crimping Tool (up to 300sqmm cables)

B500E

LV-HV Cable Crimping Tools | Distributed from Stock | Approved Cembre Supplier | UK & Export Sales


Cembre B500E battery crimping tool is an 18.0V cordless hydraulic crimping tool which can be operated with one hand and is balanced for greater control.

The tool has a greater crimping speed and crimping force as a result from a revitalised hydraulic system with double speed action: a rapid approach of the dies to the connector then a slower more powerful speed for crimping.

The Cembre B500E is lightweight and robust due a bi-component plastic moulded body which is highly resistance to damage.

The B500E battery crimping tool is fitted with a maximum pressure sensor and an Li-Ion 18.0V 4.0Ah high power battery and produces minimal noise and vibration.

Additionally an OLED display provides operating information data such as the crimping force being generated, battery power remaining, tool identification, LED state, rest, number of operational and service crimping cycles and a tool service to maintain optimum condition.

Cembre’s B500E crimping tool can be fitted with many crimping dies common to 50kN and are supplied with a spare battery, battery charger, USB cable and plastic carrying case.


Cembre B500E crimping tool

Specification

  • Rated Crimping Force: 63kN
  • Miniumum Crimping Force: 60kN
  • Rated Operating Pressure: 661 bar (9,587 psi)
  • Dimensions: Length 300mm, Width 343mm, Height 83mm
  • Cable Crimper Weight: 4.2kg
  • Oil: ENI ARNICA 32 / equivalent (Approved by Cembre)

Cembre crimping tools should be cleaned daily (or after use) with a clean cloth removing any residue in particular particles close to pivots and moveable parts. Every six months it is essential check the oil level in the reservoir. If necessary fill oil level to the top lip and remove any excess air from the reservoir.

Designed to replace the B51 crimper, the new B500E is suitable for a wide range of connectors up to 240sqmm, using die sets common to the Cembre 50kN tooling range

For storage and protection the Cembre B500E tool is supplied in a robust carrying case for storage of the crimping tool and 14 die sets.

  • Dimensions 520x432x126 mm

B500E Crimping Tool Main Applications

LV Cable Lugs Splices “C” Sleeve Connectors Insulated Terminals End Sleeves
300sqmm 70sqmm 120sqmm 120sqmm

B500E Dimensions

Cable Crimping Force  Length Height Width Weight
63kN 300mm 343mm 83mm 4.2kg

Cembre B500E Battery Crimping Tool

User Instructions

  • When introducing or changing dies, the battery must first be removed from the Cembre B500E tool.

Preparation

  • The Cembre tool can be easily carried using either the handle or the shoulder strap attached to ring.
  • To replace the battery, remove it by pressing the release button, then insert the new battery, sliding it into the guides until it locks.
  • The display shows the operational parameters of the tool; to customise them proceed as described.
  • Select the appropriate Cembre die set for the connector.
  • Open the latch and release the upper die holder.
  • Insert one die into the upper die holder until locked by the ball and one die.
  • Close the crimp tool head.
  • Insert the conductor into the connector.
  • Position the connector between the dies and ensure the correct location of the crimp.

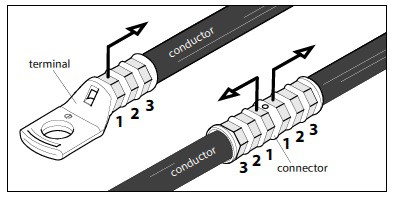

Note: when more compression is required, proceed according to the sequence and direction indicated in the figure.

Cembre B500 Battery Crimping Tool (up to 300sqmm cables)

Ensure that the latch and the upper die holder are fully secured, otherwise damage may occur during tool operation.



Die Advancement

  • Grip the tool firmly and comfortably and press operating button to activate the motor pump and advance the lower die. To halt the advancement, release the operating button and the motor will cut out.
  • Make sure the dies are exactly positioned on the desired crimp point otherwise re-open dies and reposition the connector.

Compression

  • By keeping the operating button pressed, the motor continues to operate: the ram will gradually move forward until the two dies touch.
  • The motor will stop automatically when the set pressure has been reached.
  • To display the momentary force or pressure during the work cycle, select the appropriate display from the menu. When the operating button is released before the motor stops automatically, the display will show the peak force (Fp) or the peak pressure (Pp) reached at that instant. To complete the work, press the operating button again until the motor stops automatically; the display will show the maximum force or pressure reached followed by “OK” to confirm correct operation.
  • The display “ERROR”, combined with a beep and the LEDs flashing indicates an incorrect crimping proceedure caused by the work cycle being interrupted before the control parameters (force/pressure) of the tool are reached. This error appears when the pressure release button has been operated and the tool has already reached  a pressure > 100 bar. In this case, repeat the compression by pressing and holding the operating button until the motor stops automatically.

Release of Dies

  • Press the pressure release button, the ram will retract and open the crimp dies.

LED Worklights

  • Whilst the tool is in operation, the compression area is illuminated by two high luminosity LED Worklights that switch off automatically at the end of the cycle.

Head Rotation

  • For ease of operation the Cembre B500E tool head can rotate through 180º, allowing the operator to work in the most comfortable position.
  • Warning: Do not attempt to rotate the head when the hydraulic circuit is pressurised.

Capacitive Touch Button For Menu Selection

  • This button is located under the display and allows selection of various screens; it only works when the display is on. Wearing gloves or using other objects may inhibit the operation of the button, therefore use a bare finger to apply only a light touch.

Battery Status

  • The battery is equipped with LED indicators that indicate the remaining battery life at any time by pressing the adjacent button.
  • 4 LEDs illuminated: Fully charged
  • 2 LEDs illuminated: 50% capacity
  • 1 LED flashing: Minimum charge, replace the battery.
  • With the battery inserted into the tool, the remaining battery life can also be checked on the display, via touch button selection.

When the battery voltage has dropped below a minimum safety threshold, the tool will not start, and it is necessary to recharge or replace the battery. The approximate time to fully recharge a battery is about 80 minutes.

After each working cycle, and after the extraction of the battery from the tool, an integrated battery cut-off device will operate after 70s approx. Then the LED nearest to button will flash 5 times each 14s approx. The battery will be reactivated when it is reintroduced into the tool and the operating button is pressed.

Using The Battery Charger

  • Carefully follow the instructions in the battery charger user manual.

Cembre B500E tool features LED lighting of the working area, anatomically shaped grip for improved comfort, multifunction OLED display with touch button and slot-in battery with release button.

Cembre B500E

Operating Features:

  • 180° rotating head
  • Start button protected against accidental operation
  • Pressure release button
  • Automatic battery connection system with release button
  • LED lighting of the working area
  • Motor ventilation
  • Bi-component plastic body
  • OLED multifunctional display with touch button
  • Centre of gravity positioned for optimised handling
  • Anatomical shaping for more convenient and practical grip
  • Li-Ion 18.0 V rechargeable high capacity battery

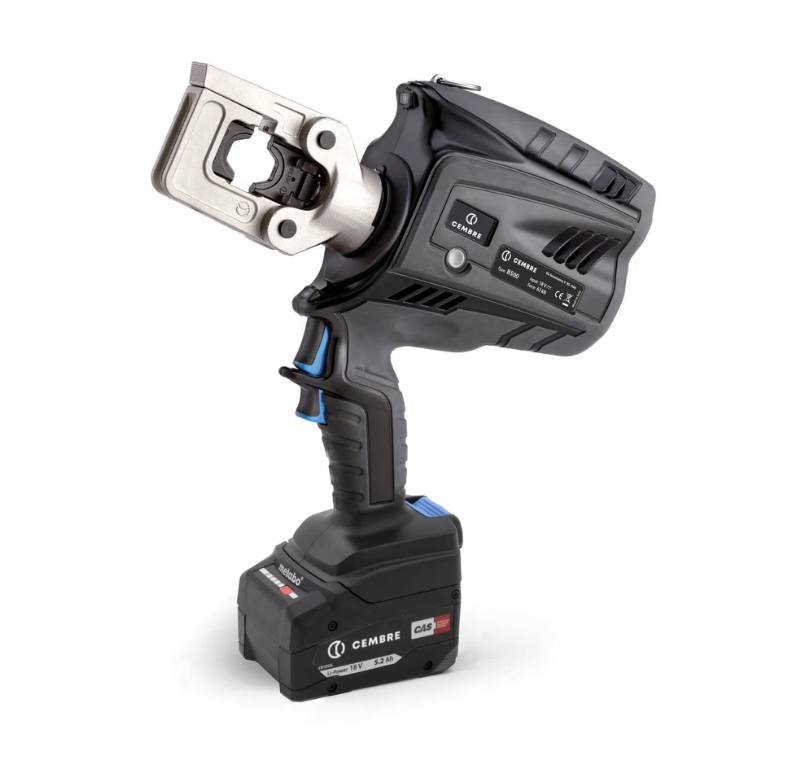

Cembre B500E Battery Crimping Tool

Technical Specification

Type Of Action  Crimp
Force Developed 63kN
Battery Material Li-Ion
Battery Voltage 18V
Battery Current 4Ah
Length 300mm
Height 343mm
Width 83mm
Weight (with battery) 4.2kg
Cembre B500E Battery Crimping Tool (up to 300sqmm cables)

Order Code – Cembre B500E


LV- HV Cable Crimping Applications

The Cembre B500E cordless hydraulic crimping tool with new 18V Li-Ion battery has the following crimp ranges:

  • LV Lugs & Splices – up to 300sqmm cable conductors
  • Insulated Terminals – up to 120sqmm cable conductors
  • End Sleeves – up to 120sqmm cable conductors
  • “C” Sleeve Connectors – up to 70sqmm cable conductors

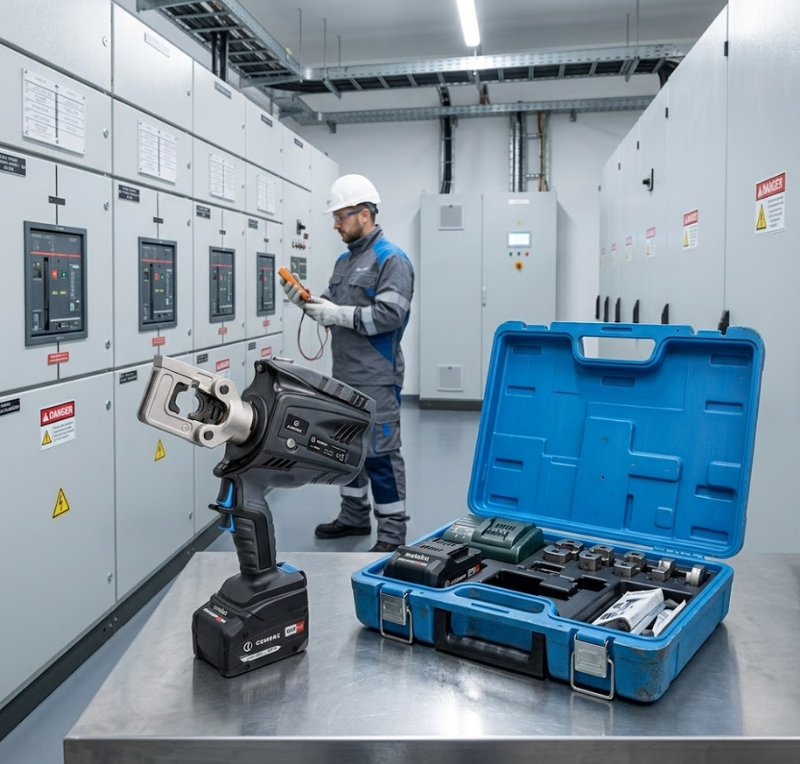

Cembre B500E Battery Crimping Tool & Carry Case

Cembre B500E Battery Crimping Tool & Carry Case

➡ For Cembre electrical connections, see Cable Crimps, Lugs & Connectors

Contact T&D to discuss crimping cables at MV-HV, including 11kV-33kV, to ensure correct Cembre tool, lug/splice and die set selection.

Full range of battery cable cutting tools also available.

➡ See Cable Jointing Tools for a complete range of LV-HV-HV Tools to enable outer sheath removal, insulation removal and screen stripping from power cables operating typically at 11kV, 33kV, 66kV, 132kV and up to 400kV.
