Nexans HSGK3 is a cable gland kit for use with single core cables with polymeric insulation (XLPE) and aluminium wire armour (AWA) when using heat shrink terminations to connect MV-HV cables into air insulated cable boxes.

HSGK3 “top-hat” design cable glands are manufactured from aluminium alloy and suitable for indoor or outdoor use on switchgear or transformer cable boxes with all types AWA cables up to 33kV/36kV with under armour diameters up to 63mm.

The cable armour wires are effectively earthed around the circumference of the cable gland with an integral earth facility provided on the mounting flange to allow connection to the building system earth.

Nexans HSGK3 cable glands are suitable for single-core MV-HV power cables with aluminium wire armour (AWA) and supplied with a sealant lined heatshrink shroud to provide a barrier to moisture ingress and are made to comply with stud spacings to BS2562 – insulated cable glands also available for medium/high voltage power systems.

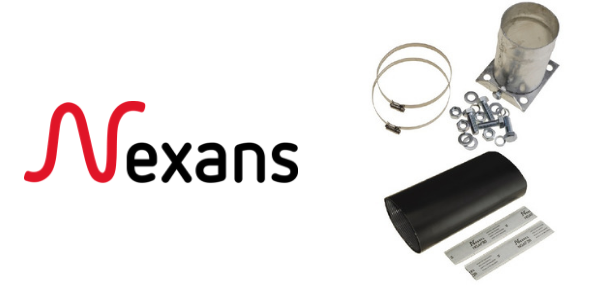

Each Nexans cable gland kit includes metal gland body, heat-shrinkable sleeve, armour clamps, copper braid and mastic tapes and is suitable for a range of conductor cross-sectional areas depending on the cable’s maximum voltage rating – please see the datasheet attached.

Also Cable Glands for SWA 11kV 33kV Armoured Cables

Nexans HSGK3

BS 2562:1979 is the current British Standard covering the specification for cable boxes for MV-HV transformers and switchgear.

Nexans Part Number – HSGK3 Cable Gland
Cable Cross Section – Single-core cables with an under armour diameter of up to 63mm
Single Core Cables – 35-630sqmm conductor cross section areas
1 Core AWA Aluminium Wire Armour Cable Gland Kit
