Heat Shrink Cable Terminations

Nexans Power Cable Accessories are in widespread service and are Approved by UK DNO’s including SSE, WPD, UKPN and SPEN for the termination and connection of medium voltage power cables into air and gas-insulated electrical switchgear.

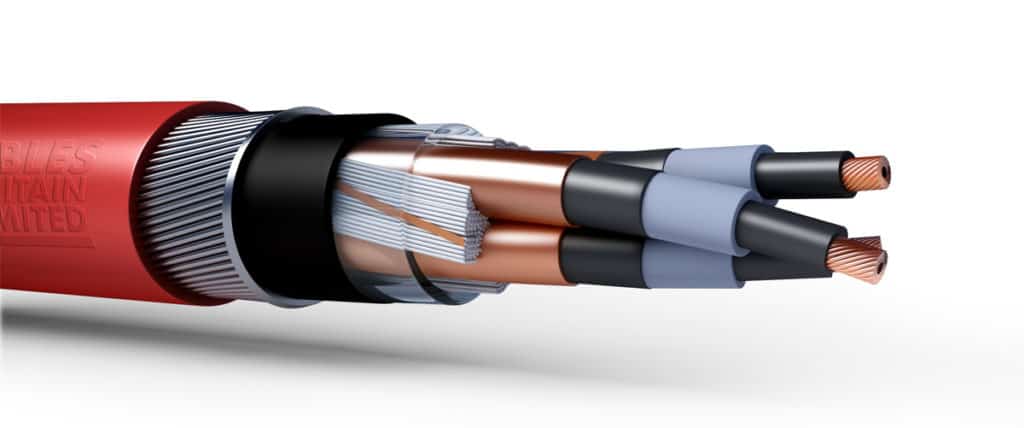

Nexans cable terminations are suitable for connecting and terminating 11kV 3 core polymeric cables with stranded copper or aluminium conductors, 35-400sqmm. 11kV terminations connect medium/high voltage power cables with polymeric insulation including XLPE and EPR to MV-HV switchgear, transformers and cable boxes – suits 3 core bonded or easy strip semi-conductive screens.

  • XLPE 3 Core
  • EPR 3 Core

11kV cable terminations suit both copper tape screened (CTS) and copper wire screened (CWS), armoured (steel wire/braid) or unarmoured cables – 3 core heat shrink cable terminations are supplied with sufficient materials to effectively terminate a 3 core cable.

11kV terminations are tested to international standards including CENELEC HD629.1 and IEC60502-4.

Thorne & Derrick stock a complete range of Heat-Shrinkable type cable terminations for the connection of screened medium/high voltage power cables with or without armour, 6.6kV/33kV.

 Cable Jointers Termination Instruction: 11kV Cable Termination 3 Core


11kV Indoor Terminations

3 Core Cables

The following selection tables enable the correct specification of 11kV 3 core cable terminations for indoor or outdoor (pole-mounted) locations:

Nexans Order Code  Cable Voltage Conductor Range – 3 Core Cables  Cable Termination Tails
SRDI 12 35-95  11kV XLPE EPR 35, 50, 70 95sqmm  650mm
SRDI 12 120-240  11kV XLPE EPR 120, 150, 185, 240sqmm  650mm
SRDI 12 240-400  11kV XLPE EPR 240, 300, 400sqmm  650mm

11kV Outdoor Terminations

Nexans Order Code  Cable Voltage  Conductor Range – 3 Core Cables  Cable Termination Tails
SRDF 12 35-95  11kV  35, 50, 70 95sqmm  650mm
SRDF 12 120-240  11kV  120, 150, 185, 240sqmm  650mm
SRDF 12 240-400  11kV  240, 300, 400sqmm  650mm

Cable Termination 11kV Design

  1. Cable Lugs (Cembre Crimp Lugs or Pfisterer Sicon Mechanical Lugs)
  2. Water Sealing Mastic
  3. Anti Tracking Heat Shrink Tube (Red)
  4. Anti Tracking Sheds (Outdoor Terminations Only)
  5. Stress Control Heat-Shrinkable Tube (Black)
  6. Stress Control Mastic
  7. 3 Core Heat Shrink Cable Break-out

    11kV Terminations 3 Core XLPE EPR Heat Shrink Cable Terminations

    11kV Terminations 3 Core XLPE EPR Heat Shrink Cable Terminations


11kV Terminations 3 Core Cables

Nexans SRDI range of heat shrink cable terminations are suitable for following 11kV medium/high voltage power cable voltages:

  • 11kV 3 Core PVC XLPE SWA Armoured Cable BS6622 IEC60502
  • 11kV 3 Core LSZH Zero Halogen XLPE SWA Armoured Cable BS7835 IEC60502
  • 11kV Cables with copper tape screen require Nexans SE solderless screen earth kits
  • Indoor Air Termination Cable Boxes, Switchgear, Transformers, Motors, Junction Box Enclosures & Substations
  • Outdoor Overhead Line (OHL) & Pole Mounted Cable Terminations
  • GIS Gas Insulated Switchgear Bushings – see Nexans Euromold Separable Connectors
  • More MV HV Cable Terminations

➡ Cable terminations product should be installed only by competent Jointers trained in good safety practices and cable preparation involving high voltage electrical equipment. The Jointing instructions are not intended as a substitute for adequate cable jointer training or experience in such safety practices. Personnel should be proficient and knowledgeable about preparing cables and installing medium voltage terminations.

11kV Cable Terminations


Termination Kit Accessories

Complete range of 11kV cable accessories are available to support the installation and termination of 3 core cables.

Terminations 11kV 33kV

Cable Glands | Screen Earth Kits | Cable Lugs (Crimp Shearbolt) | Bushing Boots


♦ Solderless Earth Kit For Copper Tape Screened Cables

Solderless Earth Kit For Copper Tape Screened Cables

Nexans Order Code 6.6kV 11kV/12kV 17kV/24kV 33kV/36kV Diameter Over Copper Tape Screen
SE1 16-50sqmm 16-50sqmm 12-18mm
SE2 70-150sqmm 70-150sqmm 25-70sqmm 25-35sqmm 19-24mm
SE3 185-300sqmm 185-240sqmm 95-150sqmm 50-70sqmm 25-30mm
SE4 400-630sqmm 300-630sqmm 185-500sqmm 95-300sqmm 31-44mm
SE5 800-1000sqmm 800-1000sqmm 630-1000sqmm 400-1000sqmm 41-65

♦ Cable Gland For SWA Steel Wire Armoured Cables

Cable Gland For SWA Steel Wire Armoured Cables

Nexans Order Code Cable Cross Section & Conductor Size 3 Core Cables
HSGK1 11kV 3 Core Cable Gland – under armour diameter up to 63mm (16-95sqmm)
HSGK2 11kV 3 Core Cable Gland – under armour diameter up to 94mm (95sqmm-400sqmm)

♦ Bushing Boots For Switchgear/Transformer Cable Termination Box Insulation

Bushing Boots For Switchgear/Transformer Cable Termination Box Insulation

Nexans Order Code Voltage Level Description Diameter Over Cable Termination
FB1 17.5kV Maximum Flexible Cold Applied Insulating Boots 35-400sqmm 3 Core Cables

Offshore Cable Terminations 11kV

HV cable terminations are suitable for the connection and terminating of 11kV 3 core BS6883 shipwiring and offshore cables with EPR insulation – this includes cables with galvanised steel, tinned annealed copper or tinned bronze wire braid.

Cold shrink terminations are available for installation in hazardous area locations where the presence of flammable gas or vapour precludes use of naked flames associated with heat shrinking installations. Note, MV-HV cables distributing 11kV power should always be prepared using correct cable jointing tools.

Offshore Cable Terminations

Complete range of Offshore Cable Accessories | Terminations | Glands | Cleats | Joints LV MV HV
