3M LVI-2/x PTU Scotchcast Resin Pilot Cable Joints (40 Resin) – Armoured Cables
3M LVI-2/x PTU Scotchcast Inline Cable Joint Resin Kit (40 Resin) – Armoured Cables
CABLE JOINTS FOR LV POWER CABLES
3M LVI-2/x PTU Scotchcast resin cable joint kits are designed to be used for multi-core armoured, polymeric telecom cables with an induced voltage of up to 8.5kV, and for Pilot cables with an induced voltage of up to 15kV.
3M LVI-2/x Scotchcast cable joints incorporate electrical insulation and mechanical protection of joints with compression or mechanical connectors– the cable joints can be used for indoor and outdoor, underground and submerged applications with high humidity or weather exposure.
3M Scotchcast hazardous area cable joints are also available for jointing power, pilot and instrumentation cables in Zone 1 and Zone 2 potentially explosive atmospheres.
3M LVI-2/x PTU SCOTCHCAST Inline CABLE JOINT RESIN KIT (40 RESIN)
FEATURES
- Scotchcast Resin 40 in transparent two chamber bags with integrated Closed Mixing and Pouring (CMP) system.
- One part transparent Mould Body with Snap Fit closing system for quick and easy handling.
- Pre cut foam sealing elements to provide reliable sealing to the Mould Body without tooling for all cable application diameters.
- Closure cap to prevent any pollution.
3M LVI-2/x PTU KIT CONTENTS
- Two part (upper and lower) transparent mould shelves with closure cap
- Scotchcast 40 resin bag with CMP
- Pre-cut sealing elements
- Abrasive sponge
- Detailed Jointing instruction
- Armour connection components
3M CABLE JOINT DESCRIPTION – Inline CABLE JOINTS
Scotchcast Joints – Safe & Reliable Resins

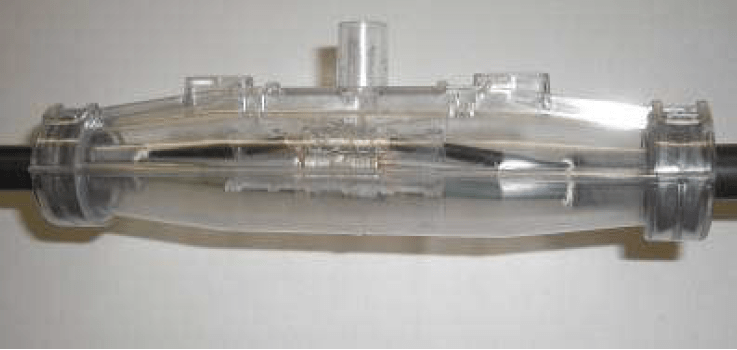

3M Y branch LVI-2/x-PTU resin inline cable joint kits are supplied with a one part translucent mould body for simple and easy handling. Distances inside the cable joint body can be checked easily.
All necessary dimensions, including kit application range, cable preparation are given in the detailed jointing instruction.
The two foam sealing elements can be adapted to the required cable diameter by removing the pre-cut adapter rings.
Scotchcast resin 40 is delivered in a two chamber bag with integrated spout and aluminium Guard Bag for protection of the resin against humidity.
The re-openable seam and integrated spout with a membrane provides a 3M Closed, Mixing and Pouring (pictured) cable jointing system. After the seam of the two chamber bag is opened, the Scotchcast resin components can be mixed.
To pour the resin into the mould body, the spout is connected with the dome by turning 180°.
While turning, the membrane is cut open to pour the resin. The 3M Closed Mixing and Pouring System provides resin handling without any skin contact – for protection against pollution, a closure cap is applied onto the dome. After curing, the remaining joint resin in the bag can be disposed as household waste.
3M Scotchcast Joints – resin cable joints for power, control and instrumentation cables in industrial and hazardous area Zone 1 and Zone 2.
3M LVI-2/X SCOTCHCAST Inline CABLE JOINT RESIN KIT (40 RESIN)
ARMOURED CABLES
| 3M Part Number | Cable Range (Pairs) | Max Cables OD (mm) | Recommended Connector |
| PE Insulated Armoured Multi pair Cables, 0.9mm² | |||
| LVI-2/3-PTU | 4 | 32 | 314 |
| LVI-2/4-PTU | 7 | 36 | 314 |
| LVI-2/5-PTU | 19 | 45 | 314 |
| LVI-2/6-PTU | 37 | 54 | 314 |
| LVI-2/7-PTU | 61 | 67 | 314 |
| PVC Insulated Armoured Multi pair Cables, 0.9mm² | |||
| LVI-2/2-PTU | 2 | 25 | 314 |
| LVI-2/4-PTU | 5-15 | 36 | 314 |
| LVI-2/5-PTU | 20-30 | 45 | 314 |
| LVI-2/6-PTU | 40-50 | 54 | 314 |
| LVI-2/7-PTU | 75-100 | 67 | 314 |
| PVC Insulated Armoured Multi Core Cables, 1.5 – 2.5mm² | |||
| LVI-2/3-PTU | 2-4 | 32 | 198-411 |
| LVI-2/4-PTU | 7-12 | 36 | 198-411 |
| LVI-2/5-PTU | 12-27 | 45 | 198-411 |
| LVI-2/6-PTU | 27-37 | 54 | 198-411 |
3M LVI-2/x Scotchcast resin cable joints are tested according to EN50393.
| Type of Test According To EN50393 Table 3 / I / A1 | Results |
| AC Voltage Withstand Test In Air 4kV AC / 1 min | Passed |
| Insulation Resistance Test In Air 1kV DC | > 10,000MΩ |
| Heat Cycle In Air 63 Cycles: 5h/3h | Passed |
| Heat Cycle In Water 63 Cycles: 5h/3h | Passed |
| AC Voltage Withstand Test In Water 4kV AC / 1 min | Passed |
| Insulation Resistance Test In Water 1kV DC | > 10,000MΩ |
3M SCOTCHCAST 40 RESIN
3M Scotchcast Resin 40 is a non-filled, 2 part polyurethane cable jointing resin for temperature curing – the Scotchcast Resin has been specifically designed for electrical insulation and mechanical protection of resin cable joints.
The 3M Scotchcast 40 Resin is classified as LIW (low voltage insulation water curable) according Cenelec HD 631.1 S2 Standard. Once cured, the resin provides impact resistance and durability against moisture and atmospheric corrosion. Continuous operating temperature of installed product is -40°C to + 110°C.
The 40 Resin is in compliance with EU regulation 1907/2007/EC (REACH).
