Cembre A60-4ESI

Transformer Lugs LV HV 11kV

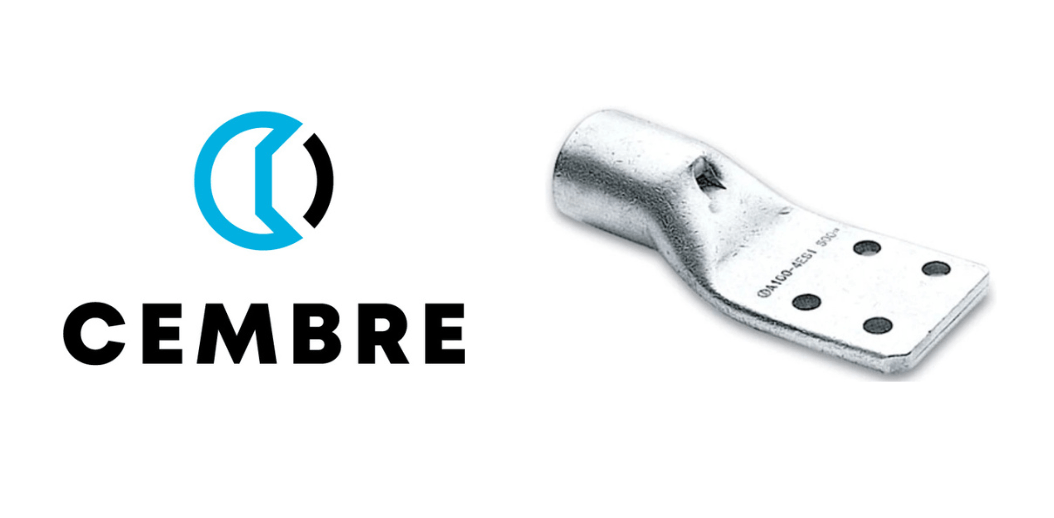

Cembre A60-4ESI is a transformer cable lug available in high purity copper tube, annealed and tin plated – suitable for connecting and crimping copper and flexible copper conductors and cables up to 11kV and a maximum cross section of 300sqmm stranded copper.

The transformer cable lugs manufactured by Cembre features 4 x M8 stud holes and are designed to connect and terminate power cables to most common transformer fixings in accordance with ESI standards.

Cembre A-4ESI series of transformer cable lug connectors are made from high purity electrolytic copper tube (body and fixing), annealed and tin plated

Cembre A-4ESI series of transformer cable lugs are made from high purity electrolytic copper tube (body and fixing), annealed and tin plated

300sqmm Transformer Cable Lug LV HV

Cembre A60-4ESI

Cembre Part Ref – A60-4ESI
Cable Lug Material – Copper Tube
Connect, Crimp or Terminate – Stranded Copper Conductor 240sqmm
Voltages – 600/1000V 11kV | Medium Voltage (MV) – High Voltage Cable Lugs 33kV are also available. Contact T&D.
No of Holes – 4
Stud Hole Size – M8 8mm
Cable Lug Øi – 23.7mm
B – 61mm
L – 133mm
M – 20mm
N – 15mm
Pack Quantity – 15 A60-4ESI Transformer Cable Lugs
Product Type – Transformer Cable Lug LV HV
See also | Cable Crimping Tools | Cable Cutting Tools

Cable Crimping Tools

Install A60-4ESI using Cembre HT131-C Crimping Tool and die set Cembre ME60-C for 300sqmm cable.

Pictured | Cembre HT131-C, the industry standard hydraulic compression tool for installing copper and aluminium lugs, connectors and splices up to 400sqmm to all cables, switchgear and transformers distributing electrical power at LV. MV & HV.

Cembre tools provide a secure and reliable integrated cable crimping and electrical connection system – as a leading manufacturer that develops and manufactures systems for electrical connections including Connectors, Dies Sets & Tools.

Cembre A60-4ESI – Dimensions
