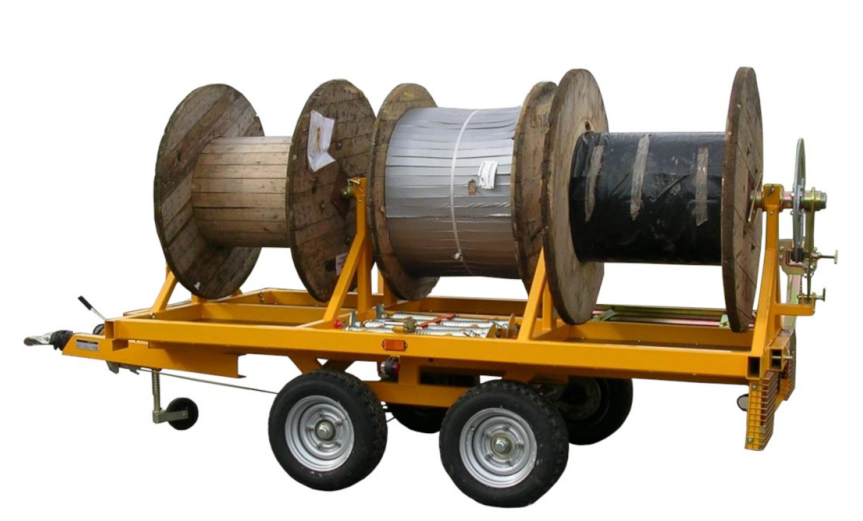

CBS C-1290 Cable Drum Trailer

The C-1290 Drum Trailer is designed for efficient and secure transportation of cable drums and is available in three different versions. Constructed from robust steel sections, it features a manually operated hydraulic system for lifting drums. An optional drum braking arrangement can be added, which is particularly beneficial for conductor stringing operations where pulling the conductor is necessary.

The trailer uses an overrun braking system that meets EC specifications and includes an auto-reverse feature as standard for enhanced safety. Additionally, all models come equipped with standard lighting for improved visibility during transport. Importantly, all versions of the C-1290 Drum Trailer are IVA approved, ensuring compliance with relevant safety and regulatory standards.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.

Drum Trailer | CBS C-1290 Triple Braked Trailer

➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.

CBS C-1290 Cable Drum Trailer Key Features

Cable drum trailer with low centre of gravity
Off set drums to enhance stability during towing
Independent disc braking of each drum
Standard drum drive pin location
Convenient storage area for stabilisers (located in base frame)

Length	4710mm
Width	1768mm
Height	1777mm
Weight (Net)	1000kg
Weight (Gross)	3100kg
Max Drum Diameter	1220mm
Max Drum Width	830mm
Braking Capacity	60kgm
Drum Hole	65mm / 80mm – Specify when ordering
Max Drum Weight	3x 650kg
