Insulated Tool Set Cable Jointers Mates Tool Kit 7
Insulated Tools

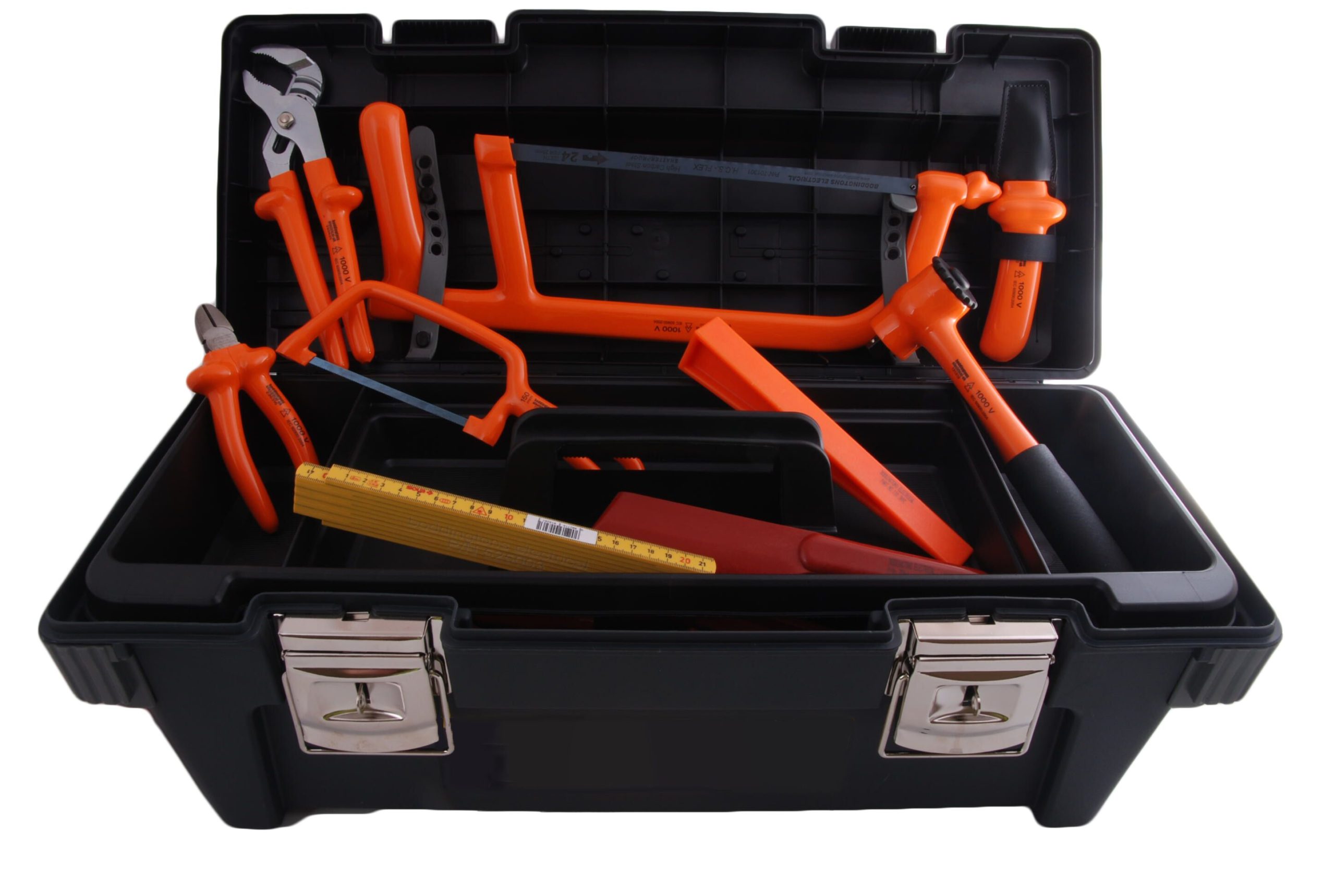

18 Piece Jointer’s Mate Tool Kit 7
Tool Kit 7, manufactured by Boddingtons Electrical, contains a full set of 18 insulated tools for Cable Jointers for live line working and electrical safety. Tools are insulated according to IEC 60900 and usable up to 1000 V AC/1500 V DC.
- Order Code: Boddingtons Electrical 24011KIT2/240K02
- Weight: 9500g
- Boddingtons Electrical Tool Kit 1 | Boddingtons Electrical Tool Kit 2 | Boddingtons Electrical Tool Kit 3 | Boddingtons Electrical Tool Kit 4
- See also: Boddingtons Electrical 25 40 65 100 Cal Arc Flash Protection Gloves
- Product Category: Insulated Tools
Cable Jointer’s Mate Tool Kit 7
Contents
| Tool Part Number | Insulated Tools Description |
| 104060 | Insulated Cable Coring Knife with Curved Blade, 60mm Blade Depth, 180mm Length |
| 1103NY | Non Conductive Insulating Nylon Cable Core Wedges with Groove, 225mm Length |
| 111310 | Insulated Slotted Screwdriver, 10mm Tip Length, 1.6 Tip Width, 200mm Blade Length |
| 111354 | Insulated Slotted Screwdriver, 5.5mm Tip Length, 1.0 Tip Width, 150mm Blade Length |
| 114302 | PZ Insulated Pozidrive Screwdrivers , PZ2, 100mm Blade Length, 210mm Overall Length |
| 236316 | Insulated Diagonal Side Cutter, >4mm ⌀ Cutting Rates, 160mm Length |
| 283002 | Heavy Duty 210mm Hack Cable Knife, 32mm Blade Depth, 190mm Overall Length, 90mm Blade Length |
| 292625 | Insulated Groove Joint Pliers, 250 mm Length |
| 430315 | Insulated Depth Armour Gauge Saw, 150 mm Length of Blade |
| 525002 | Plastic 1m Folding Jointed Ruler |
| 701150 | Insulated Junior Hacksaw with a 32 TPI Blade, 150mm Blade Length |
| 701300 | Insulated HackSaw with 24 TPI Blade, 480mm Overall Length, 300mm Blade Length |
| C99000 | Cable Coring Knife with Curved Blade, 70mm Blade Depth, 55mm Length |
| JTN-1 | Non Conductive Insulating Mini Hepwedge Core Separator, 130mm Length |
| JTN-2 | Non Conductive Insulating Midi Hepwedge Core Separator, 160mm Length |
| PA1968/10 | Heavy Duty Insulated Cable Cutter – EL Type , 25 mm2 Material Cross Section, 250mm Length |
| 124510 | Tin English Pattern Snips 250mm Length |
| BPH016 | Ball Pein Hammer 454g / 16oz |
| PPCR10 | Half Round Cabinet Rasps 250mm/10in, 25mm Width |
Live Working Insulated Tools
Insulated tools are used by utility contractors for safe cable preparation, jointing and working on waveform, wavecon, paper/lead low voltage distribution cables – see also cable jointing tools for stripping, cutting and removing sheath, insulation and screen from LV-HV cables.
Insulated Tools – LV MV HV Cable Jointers Tools Live Working
Insulated Cable Cutters
The Klauke ES32SISML-WSH is a battery powered cable cutting tool with a maximum cutting range of 32mm suitable for use with copper and aluminium conductors up to 300sqmm. The Klauke ES32SISML has a slim cutting head for Jointers working in substations, switchgear and trenches with confined spaces – the insulated cable cutters provide advanced worker and electrical protection to utility contractors working live in the vicinity of energised Mains and Service cables up to 1000V.
Klauke cutting tools are available with 10.8V DeWalt Li-Ion Batteries and are fully insulated to the electrical requirements of IEC 60900.
Designed specifically for LV Cable Jointers, the ES32SIS-WSH features a shortened blade profile, minimizing the risk of accidental contact with an adjacent phase during cable cutting and jointing operations. The redesigned blade pivot point ensures maximum cutting leverage, allowing for the efficient cutting of single-core stranded copper and solid aluminium cables up to 300sqmm – lightweight, compact and providing ultimate electrical safety when cutting and working on LV networks and cables prior to Jointing or Terminating.
Insulated Cable Cutters
THORNE & DERRICK are Specialist Distributors of LV HV Cable Jointing, Earthing, Substation & Electrical Eqpt up to 66kV – this includes the most extensive range of Ex Stock Innovation Tooling to facilitate safe and reliable spiking, cutting, crimping, preparation, termination and installation of cables.
