Insulated Tool Set | LV Cable Jointers Tool Kit

Boddingtons Electrical Insulated Tool Set Cable Jointers Tool Kit 1

Live Line Working & Cable Jointing Tool Sets

Insulated Tools for ICP Jointers

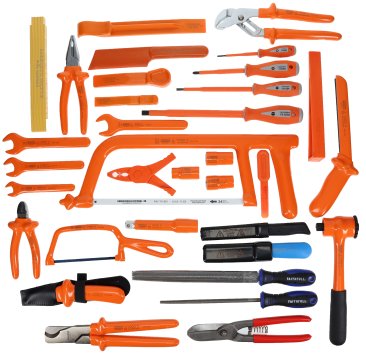

35 Piece Cable Jointer’s Tool Kit 1

Tool Kit 1, manufactured by Boddingtons Electrical, contains a full set of 35 insulated tools for LV Jointers working on energised (live-working) or de-energised low voltage cables and connections – – this insulated tool provides advanced worker and electrical protection to utility contractors working live in the vicinity of energised Mains and Service cables up to 1000V.

Tools are insulated according to IEC 60900 and usable up to 1000 V AC/1500 V DC.

Order Code: Boddingtons Electrical 240K01/24011/KIT
Tool Kit Weight: 10000g
See also: Boddingtons Electrical 25 40 65 100 Cal Arc Flash Protection Gloves
Product Category: Insulated Tools

Insulated Tool Set | LV Cable Jointer's Tool Kit 1

LV Live Jointing | Single & 3 Phase Service & Mains

Cable Jointers Tool Kit

Tool Part Number	Insulated Tools Description
103075	Insulated Hybrid Neutral Cable Wedge, 130mm Length
104060	Insulated Cable Coring Knife with Curved Blade, 60mm Blade Depth, 180mm Length
1103NY	Non Conductive Insulating Nylon Cable Core Wedges with Groove, 225mm Length
111310	Insulated Slotted Screwdriver, 10mm Tip Length, 1.6 Tip Width, 200mm Blade Length
111354	Insulated Slotted Screwdriver, 5.5mm Tip Length, 1.0 Tip Width, 150mm Blade Length
114302	PZ Insulated Pozidrive Screwdrivers , PZ2, 100mm Blade Length, 210mm Overall Length
115303	Insulated Allen Key Screwdrivers for Hexagon Screws, 3mm Point Size, 80mm Blade Length, 170mm Overall Length
124510	Tin English Pattern Snips 250mm Length
130413	Insulated 6 Point Socket 1/2″ Square Drive Standard for Hexagon Bolts, 50mm Length, 13mm Size
130417	Insulated 6 Point Socket 1/2″ Square Drive Standard for Hexagon Bolts, 50mm Length, 17mm Size
130419	Insulated 6 Point Socket 1/2″ Square Drive Standard for Hexagon Bolts, 50mm Length, 19mm Size
131312	Insulated 1/2″ Square Drive Reversible Ratchet Lever, 260mm Length, 85mm Height
133312	Insulated 1/2″ Square Drive Extension Bar, 125mm Length
150716	Insulated Open Ended Spanners – Whitworth 200mm Length, Size 7/16 W
151313	Insulated Open Ended Spanners – Metric/Whitworth/A/F 135mm Length, Size 13mm
151317	Insulated Open Ended Spanners – Metric/Whitworth/A/F 155mm Length, Size 17mm
151319	Insulated Open Ended Spanners – Metric/Whitworth/A/F 175mm Length, Size 19mm
216320	Insulated Combination Pliers, 200 mm Length, Cutting Rates ⌀ 13mm Soft Wire
236316	Insulated Diagonal Side Cutter, >4mm ⌀ Cutting Rates, 160mm Length
283002	Heavy Duty 210mm Hack Cable Knife, 32mm Blade Depth, 190mm Overall Length, 90mm Blade Length
292625	Insulated Groove Joint Pliers, 250 mm Length
430315	Insulated Depth Armour Gauge Saw, 150 mm Length of Blade
525003	Plastic 2m Folding Rule
651409	Insulated Safety Clamps with Rubber Contacts in Jaw To Protect Insulating Material, 45mm Opening, 140mm Length, 85mm Width
701150	Insulated Junior Hacksaw with a 32 TPI Blade, 150mm Blade Length
701300	Insulated HackSaw with 24 TPI Blade, 480mm Overall Length, 300mm Blade Length
C99000	Cable Coring Knife with Curved Blade, 70mm Blade Depth, 55mm Length
JTN-1	Non Conductive Insulating Mini Hepwedge Core Separator, 130mm Length
JTN-2	Non Conductive Insulating Midi Hepwedge Core Separator, 160mm Length
JTN-3	Non Conductive Insulating Maxi Hepwedge Core Separator, 262mm Length
JTN-4	Non Conductive Insulating Plastic HEPNYF Hack Knife, 245mm Overall Length
PA1968/10	Heavy Duty Insulated Cable Cutter – EL Type , 25 mm2 Material Cross Section, 250mm Length
PPHRSC10	Half Round Second Cut Engineers File 250mm
PPRSC8	Round Second Cut Engineers File 200m

Live Working Insulated Tools

Insulated tools used by utility contractors for safe cable preparation, jointing and working on waveform, wavecon, paper/lead low voltage distribution cables – see also cable jointing tools for stripping, cutting and removing sheath, insulation and screen from LV-HV cables.

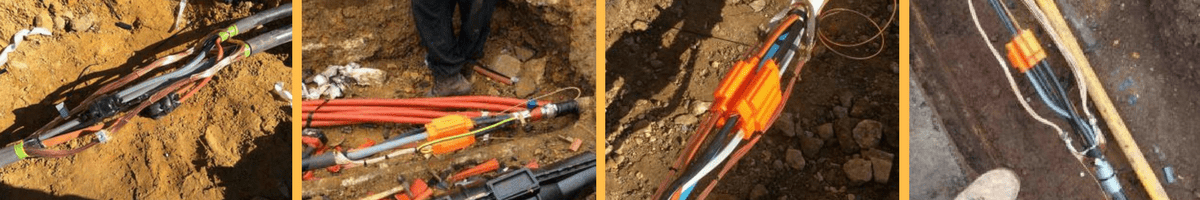

Insulated Tools – LV MV HV Cable Jointers Tools Live Working

Insulated Cable Cutters

The Klauke ES32SISML-WSH is a battery powered cable cutting tool with a maximum cutting range of 32mm suitable for use with copper and aluminium conductors up to 300sqmm. The Klauke ES32SISML has a slim cutting head for Jointers working in substations, switchgear and trenches with confined spaces – the insulated cable cutters provide advanced worker and electrical protection to utility contractors working live in the vicinity of energised Mains and Service cables up to 1000V.

Klauke cutting tools are available with 10.8V DeWalt Li-Ion Batteries and are fully insulated to the electrical requirements of IEC 60900.

Designed specifically for LV Cable Jointers, the ES32SIS-WSH features a shortened blade profile, minimizing the risk of accidental contact with an adjacent phase during cable cutting and jointing operations. The redesigned blade pivot point ensures maximum cutting leverage, allowing for the efficient cutting of single-core stranded copper and solid aluminium cables up to 300sqmm – lightweight, compact and providing ultimate electrical safety when cutting and working on LV networks and cables prior to Jointing or Terminating.

The cable cutting tool is typically used by UK DNO’s and their ICP Contractors to core cut 185sqmm, 240sqmm and 300sqmm BS7870 Waveform 600/1000V cables.

Insulated Cable Cutters
