Cable Accessories & Electrical Equipment
400V-66kV
Thorne & Derrick supply an extensive range of 400V-66kV Rail Cable Accessories & Electrical Equipment to contractors undertaking LV Power Distribution, HV Electrification & Substations, OLE and Track Feeder Cable Renewals – we stock Network Rail PADS Approved Low Voltage & Medium Voltage Cable Accessories including cable terminations, joints, cable repair and connection products up to 66kV.
Based in the UK, we are highly customer responsive and absolutely committed to providing a world-class service.
Since 1985, we have provided expert technical support and express delivery from extensive UK stocks to world-wide destinations.
Medium Voltage
Joints | Terminations | Connectors
PADS Approved Joints & Terminations by Network Rail | Thorne & Derrick specify and supply from extensive stocks market-leading brands in Cold Shrink, heat-shrink, silicone and EPDM rubber technology to support the energisation of Medium & High Voltage Power Cable Systems, 11kV, 24kV, 33kV, 66kV.
Safe, Reliable & Compliant Cable Accessories for Substation, Trackside & OHL Power Supply
Cold Shrink Joints & Terminations | Transformers Switchgear Overhead Line Connections | Track Feeder & Concentric Cables 25/45kV (52)kV | 11kV 3 Core XLPE SWA BS6622 | 33kV Single Core XLPE Unarmoured BS7870 | Custom Variants To Suit MV HV Rail Power Cables
Separable Connectors
11kV 25kV 33kV
Inner & Outer Cone Style for Gas Insulated Switchgear & Transformer Connections
 |
 |
| Pfisterer CONNEX Connector (Size 1 2 3 Bushings Inner Cone) | Euromold Connector (Interface A B C D E F Bushings Outer Cone) |
Joints & Terminations
Heat Shrink, Cold Shrink & Silicone Push-on for Air Insulated Switchgear, Transformers & Equipment
 |
 |
| Nexans JTS Heat Shrink Cable Joints | Nexans MONO Cable Terminations |
25kV Switchgear Terminations
Nexans AFN36-6 single core MV cable terminations are Network Rail PADS Approved for indoor 25kV switchgear applications. The Slip-on cable termination is approved for use with Siemens ASG25 – 25kV air insulated switchgear for AC traction power supply systems.
Nexans 42kV Order Code AFN36-6 | Network Rail 054/214930 | Certificate of Acceptance PADS PA05/06215
Nexans AFN Medium Voltage Cable Terminations
132kV Connections
Pfisterer Dry Type Terminations EST EST | OHL Tower Connections | UK DNO Approved | Outdoor Grid Energisation
Temporary Cable Supports
Avoid Slips, Trips & Falls
CableSafe Hooks are designed to provide secure and safe support for temporary cables during construction, maintenance or track possessions – made of high-quality and high strength materials to suspend cables up to 300kg maximum load.
S-shaped hooks are UV Stabilized, Flame Retardant (Class: 94V-0, Flame Class Rating 3) and Cold Weather Rated.
Ask About | Dropped Object Prevention (Walkway & Work Mats – Safety Netting) & Confined Space Safety
LOW VOLTAGE
Cleats | Lugs | Transits | Glands | Joints
Thorne & Derrick supply an extensive range of LV Cable Accessories & Electrical Distribution Equipment to enable the installation of rail signalling, telecom and power cables 600/1000V – all heat shrink products feature Network Rail PADS Approval numbers and also London Underground (LUL) acceptance.
Duct Seals
Sealing Cable Ducts | Cable and pipe transit sealing systems for substations, penetrations and building entries to prevent water ingress or flammable gas migration with fire resistance performance. Quick and easy to install for station, tunnel and trackside power, telecom and signal cable sealing.
Feeder Pillars
LV Electrical Distribution | Robust, durable and secure feeder pillars provide power distribution with pre-wired custom design option. Network Rail approved GRP feeder pillars are non-conductive and available for permanent outdoor location in trackside or station installations eliminating risk of dangerous touch voltages in rail electrified areas.

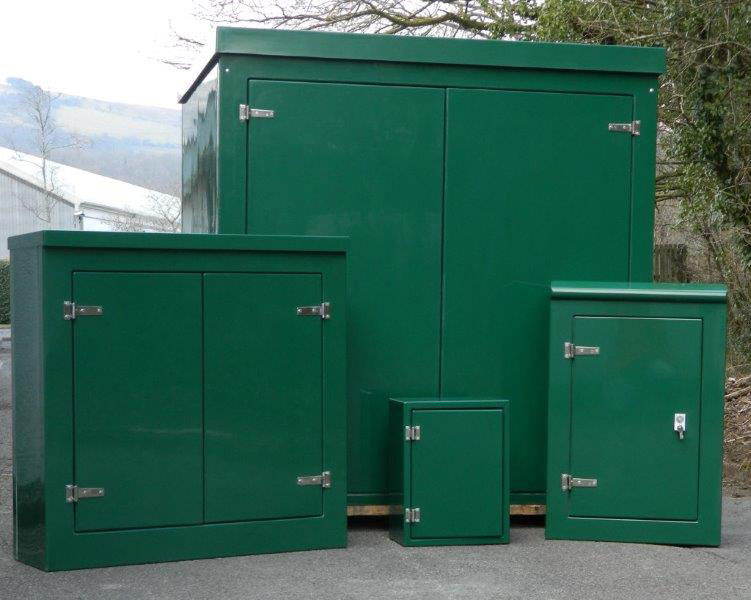

GRP Feeder Pillars
Non-Conductive | Corrosion Resistant | UV Stability | Lightweight | Flame & Fire Retardant for LV Power Distribution
Cold Shrink
Track Feeder Connections

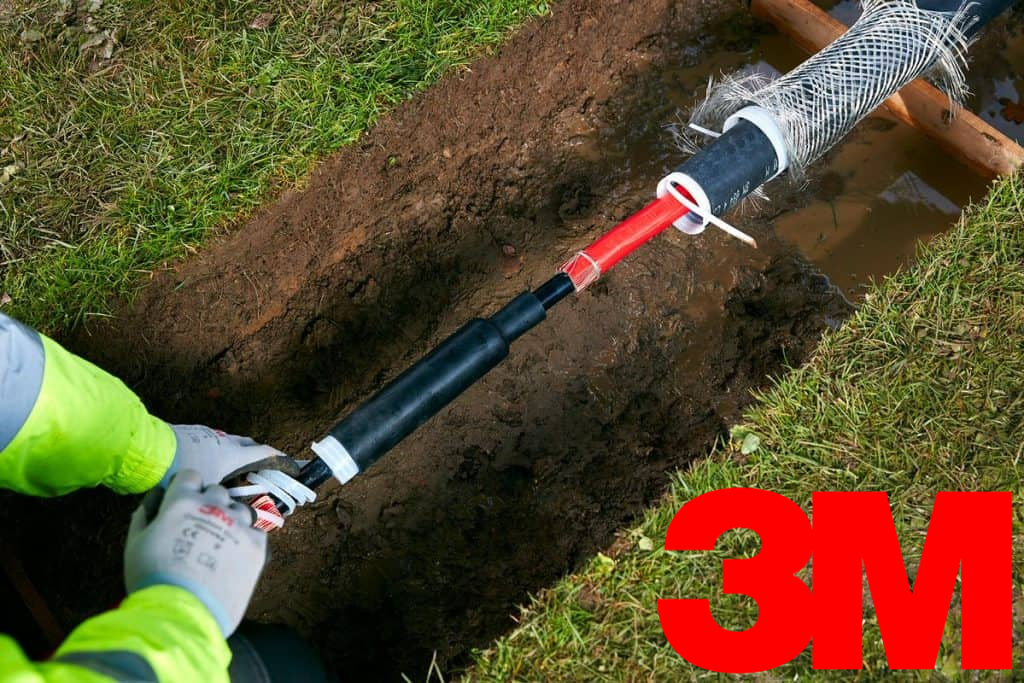

3M Cold Shrink cable joints require no hot-work permit or special tools for installation – specified for rail cable sealing, insulation and protection and are approved by Network Rail for live rail terminations and inline cable joints for DC track feeder cable applications. 3M Cold Shrink Tubes are made from EPDM rubber, expanded onto a removable supporting plastic core providing a permanent radial seal, expanding and contracting with the cable under load conditions.
Fast & Easy | Cable Insulating, Termination, Repair, Jointing & Abandonment | Cold Shrink Cable Accessories
RAIL CONNECTORS

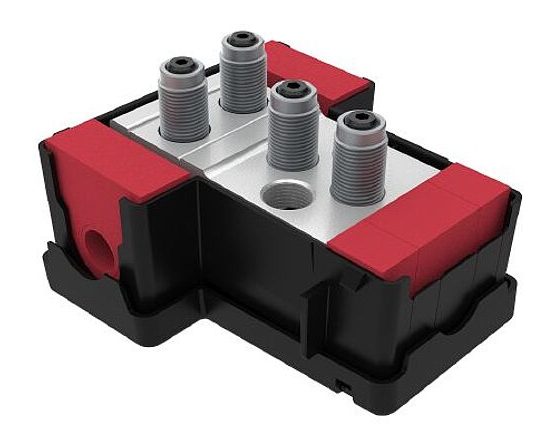

Pfisterer RSC-T ground tap rail connectors comprise of several parts and can be mounted directly onto an existing system – the ground cable is laid in place without any preparatory work and enclosed by the electrical connector using a locking bolt.
The SICON piercing bolts penetrate the insulation to establish safe and reliable contact with the ground conductor. Any possible damage to the metallic conductor is avoided by means of the proven SICON technology typical to their range of shearbolt lugs and connectors.
Pfisterer RSC-T Rail Connectors | PA05/06096 | Insulation Piercing Tap-off Connectors | SICON 332846012
Push / Pull Tools
REDUCE RISK & WORKER INJURY
The range of Hand Safety Tools keep your hands off loads enabling “no-touch” lifting, guiding and positioning – this mitigates the risk of load handling, pinch-point injury and improves Health & Safety in the workplace.
The ShoveIt No Touch tool helps avoid hand injuries while working with suspended loads or manoeuvring objects.
Cable Tooling
Thorne & Derrick are Specialist Distributors of Innovation Tooling & Accessories for LV HV Power Systems to facilitate safe and reliable cutting, crimping, preparation, termination and installation of cables, 600V to 132kV.
STRIP
Simple, Smooth & Consistent Semi-Con Stripping
Quickly and easily remove bonded semi-conductor layers from MV HV cables with the Ripley US02 – no grease or clamps required.
Unique design enables efficient stripping of 66kV to 132kV power cables with the Alroc CAMF4.
|
|
| Ripley US02 Bonded Semicon Shaving Tool | Alroc CAMF4 Bonded Semicon & Insulation Stripping Tool |
CUT
SWA Cables Up To 105mm Diameter
The most powerful and versatile battery powered cable cutting tool Klauke ESG105 – available with a remote control option to maintain a safe distance during cutting of cables.
  |
| Klauke ESG105 Battery Powered Cable Cutting Tool |
Insulated Cutters

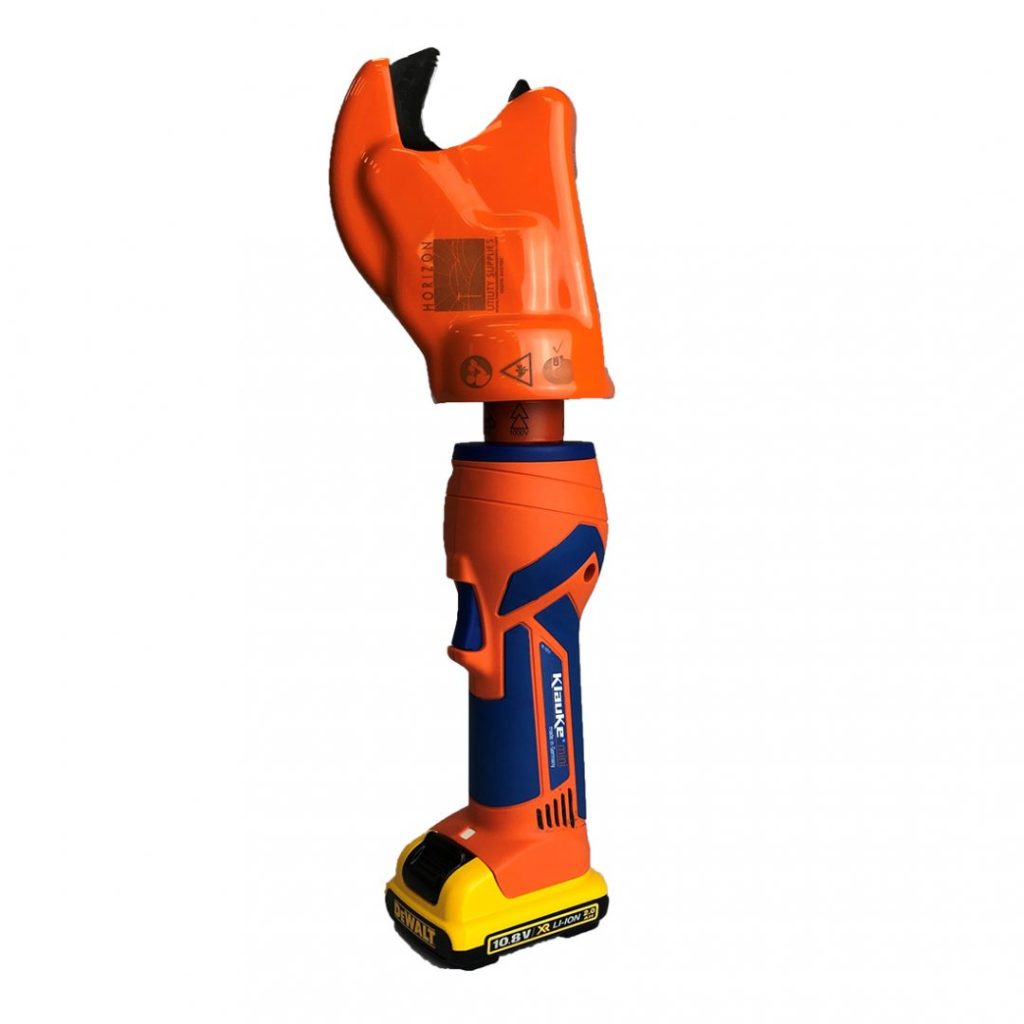

This new compact and lightweight insulated cable cutting tool is specifically designed for optimal performance in confined spaces.
Designed specifically for LV Cable Jointers, the ES32SIS-WSH features a shortened blade profile, minimizing the risk of accidental contact with an adjacent phase during cable cutting and jointing operations. The redesigned blade pivot point ensures maximum cutting leverage, allowing for the efficient cutting of single-core stranded copper and solid aluminium cables up to 300sqmm.
CRIMP
Hydraulic crimp up to 400sqmm cables using double speed action technology with Cembre HT131-C
Battery crimp up to 630sqmm cables without strain injury or worker fatigue with Klauke EK135FT
|
 |
| Cembre HT131-C Hydraulic Crimping Tool | Klauke EK135FT Battery Powered Cable Crimping Tool |
SPIKE & CUT
Up to 140mm Diameter Cables (SWA) | LV MV HV
Hydraulic & Remote Operation (Bluetooth) 2-in-1 Spiking & Cutting Tools are used to check for and ensure the absence of voltage on LV MV HV underground cables then provide a clean cut.
Cable Spiking & Cutting Tools
PREPARE
MV Cable Jointers Tool Kit
Remove cable sheath, screen and insulation from MV cables up to 33kV – Jointers Tool Kit.
The following table outlines the Tools included in the Pfisterer MV Jointers Tool Kit stocked and supplied by Thorne & Derrick;
| Supplier | Part No | Jointers Tool Description | |
| 1 | Pfisterer | N/A | Folding Ruler |
| 2 | Pfisterer | N/A | Round File |
| 3 | Pfisterer | N/A | MV Knife |
| 4 | Pfisterer | N/A | Long Nosed Pliers |
| 5 | Ripley | US10-7000 | Insulation Chamfer Tool |
| 6 | Alroc | PG4HTA/3033 | Sheath Removal Tool (Pliers Type) |
| 7 | Ripley | KS-1 | Scissors |
| 8 | Ripley | US02 | Fully Bonded Semi-conductive Screen Removal |
| 9 | Pfisterer | N/a | Garrotte |
| 10 | Alroc | LH2 | Insulation Removal Tool |
| 11 | Ripley | US15 PRO | Easy Peel Semi Conductive Layer/Sheath Removal |
Support

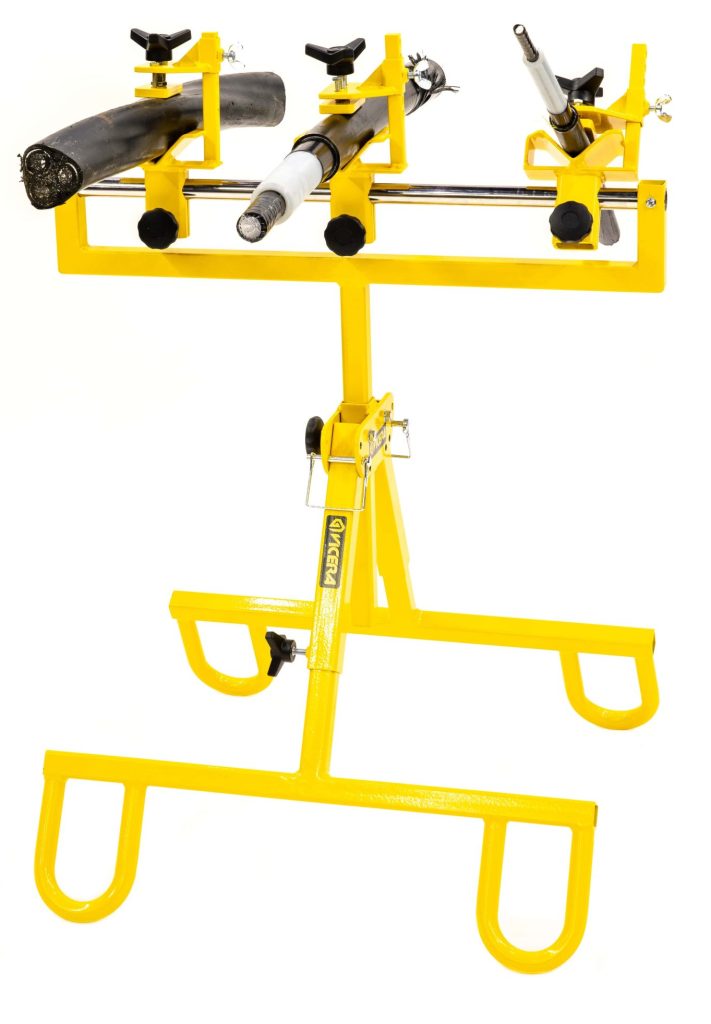

The APU2.0 Cable Stand provides secure and balanced cables when Jointers are undertaking highly skill-sensitive cable preparation preventing inadvertent damage to cables and future potential O&M reliability – the Cable Stand is adopted for Training Centre and Field Operations and provides lateral and tilt adjustment to provide cable support and stability during Jointing and Termination.
Industrial Plug & Socket Assemblies
Electrical Safety & reliability
Marechal Decontactors can be disconnected under full electrical load for planned maintenance or rapid change out of equipment during shutdowns and construction – typical applications include generator sets, motors, machines, distribution boxes, pumps and electric cabinets .
Decontactors are a Plug & Socket Assembly with Integral Switch Disconnector featuring a safety button placed on the upper section of the safety socket enabling the user with a single press of the button to disconnect the equipment – can be removed in complete safety and a shutter protects the user according to IP4X/IPXXD as the live contacts are inaccessible behind the closed shutter.
- Industrial (20A-700A 400°C 1000V)
- Multicontact (7-37 Contacts up to 50A)
- Single Pole Connectors (680A/ 1000V)
- IP67 IP68 IP69 | ATEX & IECEx Certified
Electrical SAFETY
Thorne & Derrick stock and distribute the most extensive range of Low & High Voltage Electrical Safety Equipment to ensure safe working and protection against electrocution during the installation, commissioning and testing of underground power cables, overhead lines and electrical substation equipment including switchgear and transformers.
Arc Flash Protection
CATU | Helmet & Integrated Face Shield – 12 Cal Protection
Switching Suits | 25 40 100 Cal Arc Flash Protection | Breathable, Lightweight & Comfortable
Arc Flash Coverall | PROGARM 4690 | Designed for workers on or near the trackside requiring garments certified to RIS-3279-TOM

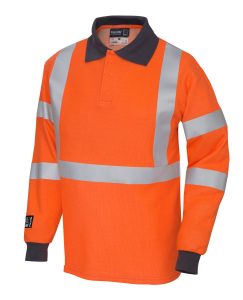

Arc Flash Polo Shirt | PROGARM 5290 Hi Vis & Flame Resistant unique VXS+ blend of fibres meeting requirements of RIS-3279-TOM for workers on or near the trackside
Substation Safety Kits
CATU CZ | 11kV 24kV 36kV Substation Life Saving Kits (Portable & Wall Mounted)
Portable Earths
CATU MT | Short Circuit & Portable Earthing Kits
Voltage Detector
CATU CC775 | OHL & UGC | 11kV 33kV 66kV 132kV
Insulating Mats
LV MV HV Switchgear & Substation Matting
Fire Safety & Protection
Thorne & Derrick stock an extensive range of Fire Resistant Cable Accessories, Management & Sealing Systems – this includes cable cleats, glands, joints and tapes to protect, insulate, seal and manage LV MV HV Power Systems.
Fire Resistant & Halogen Free Cable Joint Using 3M STFF.
3M STFF Shield (Smoke, Toxicity, Fire and Fume) | STFF enables standard cable joints and accessories to be installed in areas such as underground rail and tunnels where fire resistance, flame retardancy and low toxicity cable solutions are required. Fire safety material compliance to Transport for London (TfL)/London Underground (LU) S1085.
> More info | 3M Fire Resistant & Halogen Free Cable Joints
Cable Pulling & Laying Equipment
Thorne & Derrick distribute Cable Pulling & Laying Products to enable the installation of Low, Medium & High Voltage Cables into underground trench or duct – products also supplied for fibre optic blowing, subsea trenching, offshore umbilical installations and pulling armoured cables onto cable tray.
Trench & Duct | Cable Rollers, Socks, Drum Jacks, Trailers & Winches | LV MV HV EHV
Cable tROUGH
MITA WIBE is the leading “fit & forget” Cable Troughing & Management System manufactured in GRP with PADS Approval and specific material specifications for trackside and tunnel applications on Network Rail infrastructure.
The MITA GRP elevated cable route has been fully approved by Network Rail under Certificate of Acceptance PA05/00442.
Zero Halogen Low Smoke version has also been approved for use in sub-surface stations and connecting tunnels.
Cable Cleats

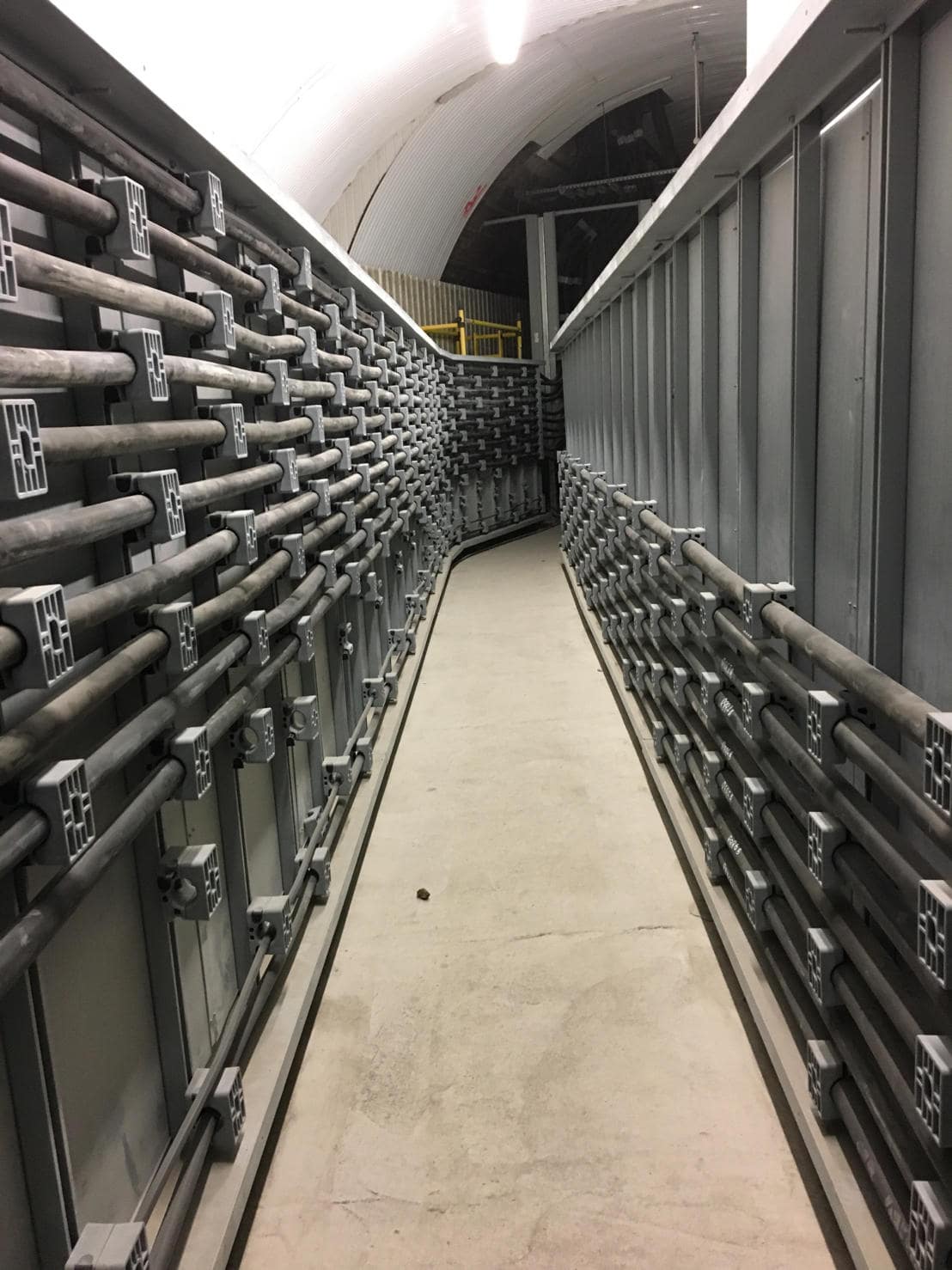

Thorne & Derrick stock and distribute the complete range of Cable Cleats & Hangers manufactured by Ellis Patents including “No Bolts” cleats for short circuit retention and cable protection of LV (Low Voltage), MV (Medium Voltage) and HV (High Voltage) cable systems in single-way formation in accordance with London Underground 1-085 Specification.
Ellis No Bolts Cleat are all polymeric, metal-free and stackable cable cleats – the first ever cable cleat to be granted PADS approval by Network Rail. Ellis Patents No Bolts cable cleats are part of the single cable cleat range and feature integral “Twist-Foot” function for speed of installation – the stackable cleats require no conventional metal fixings for supporting steel-work for use in underground rail tunnels.
CABLE HANGERS

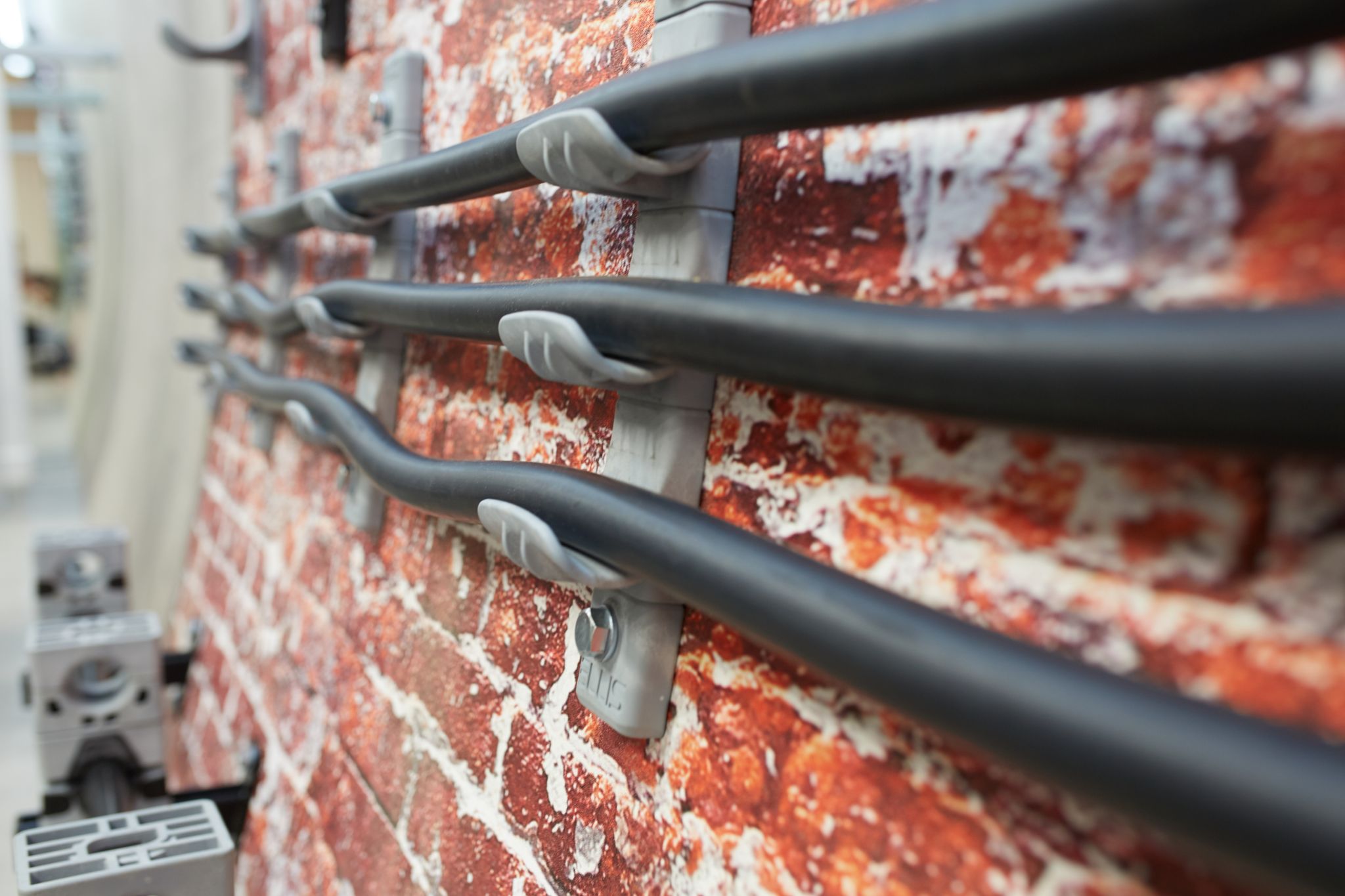

Pegasus Cable Hangers | Non-Metallic | non-corrosive, marine grade, extruded aluminium spine that supports any multiple combinations of cable configurations. Manufactured from a high strength nylon the modular cable hanging system is stronger and lighter than conventional galvanised steel to meet the requirements of the London Underground 1-085 Specification.
Operating Poles & Portable Temporary Earth Kits | PENTA Aluflex Earth Kits include DEP Short Earth Leads, J117 Rail Clamps, Portable Earthing, Long Blue Interlocked Earths, Short-Circuiting Straps, Rail Bonds, Insulating Poles, Rail Jumper Bonds, Rail Poles, Voltage Detectors, Rail Socket and Heads for use on Network Rail high voltage electrification and isolation projects.
We look forward to working to with you on your next Rail project.
