Protect MV HV Cables – 11kV 33kV Cable Covers, Tiles & Tapes Using Tapetile & Stokbord

• Uploaded By Chris Dodds – Thorne & Derrick Sales & Marketing Manager

Why Use Cable Protection Covers?

Tape Tile & Stokbord

Centriforce Stokbord underground cable protection covers are manufactured from high impact, recycled polyethylene designed to withstand damage and protect medium/high voltage cables from plant and hand tools – the cable covers protect high voltage cables from damage caused by diggers and excavators inadvertently causing cable strikes when working around underground cables and utility services.

Both Tape Tile and Stokbord cable covers are used to protect LV-HV cables and cable ducts installed by the ‘open cut’ trench method – the cable protection products are intended, during any future excavation work, to give a clear visual warning of the presence of underground cable, cable joints or cable ducts. The cable identification is compliant with ENATS Standard 12-23 and meets the impact requirements of BS2484.

Pictured: High Voltage 11kV Cable Strike – an excavator has impacted onto a 11kV high voltage power cable penetrating the cable sheath and XLPE insulation to cause a power outage. Lack of planning on development projects increases the possibility of serious injuries to operatives and greatly increase cost to projects. On site cable records and use of cable fault locators should ensure worker safety and prevent accidental damage and strikes to high voltage cables.

Damage to underground cables can have serious repercussions such as damage to anyone working on or near the cables or a power blackout such as that experienced in Londonderry, December 2013.

LV Low Voltage | MV Medium Voltage | HV High Voltage Cable Protection

Why Use Stokbord?

Centriforce Stokbord cable covers are suitable for underground high voltage cable protection (22kV, 33kV, 66kV, 132kV and up to 400kV). The 4 thickness variations of Stokbord covers are 6, 9, 12 and 18mm. This coupled with the fact that Stokbord is easy to fabricate ensures Centriforce Stokbords are the ideal product for protecting underground cables.

Stokbord Cable Cover Application

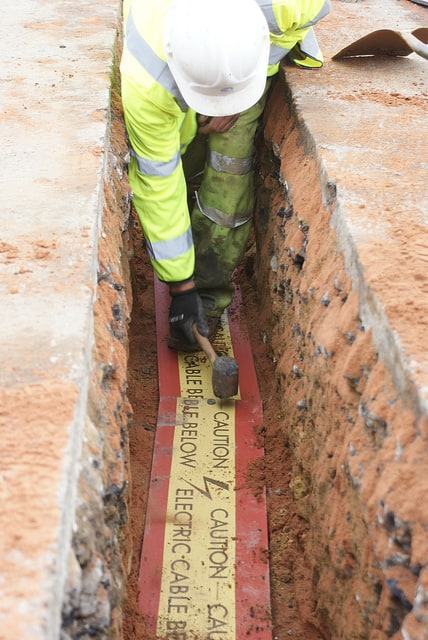

Centriforce Stokbord Cable Covers are fully jointed, laid overlapped and connected with plastic jointing pegs to provide safe high voltage underground cable protection.

Centriforce Stokbord cable covers feature a red background with yellow top tape containing visible warning “Caution Electric Cable Below” – Stokbord cable covers meet BS2482 impact requirements for underground cable cover protection.

Not only does this protect from any impact to the cables that would be made by excavation, it also shows exactly where cables are laid. The locating of cables is therefore simplified.

The features and benefits of Centriforce Stokbord makes the performance of the products far superior to steel and concrete cable covers / tiles /plates.

Stokbord Cable Covers – Benefits At A Glance

• Stokbord covers provide the clear warning to 3rd parties of underground buried cables
• Cable covers can be custom made with sizes to suit medium/high voltage cable trenches
• Contains bold warning text and company logo for clear MV-HV cable identification
• Damages to cables reduced – cost of repairs, HV jointing and supply disruption reduced
• Lightweight and easy to install Stokbord cable covers irrespective of weather conditions
• Durable with good impact resistance for MV HV EHV cable protection
• Rotproof and resistant to soil conditions for burial in underground cable trench

Plastic Cable Covers v Concrete Cable Covers

Cable Protection

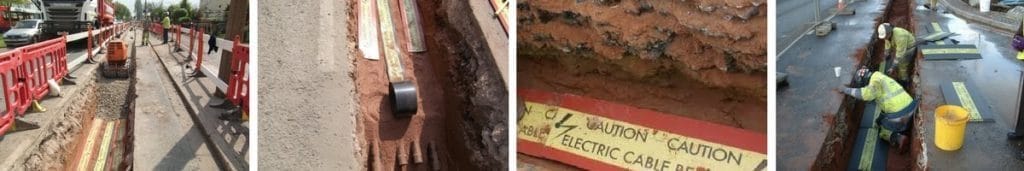

Installation Of Cable Trench Covers & Cable Protection Tiles

All cables and ducts laid into cable trench should be over-protected by a cable protection cover or tape depending upon the highest voltage cable to be protected within the cable duct – typically in the UK the following cable protection tapes and covers are used for LV, MV and HV cables.

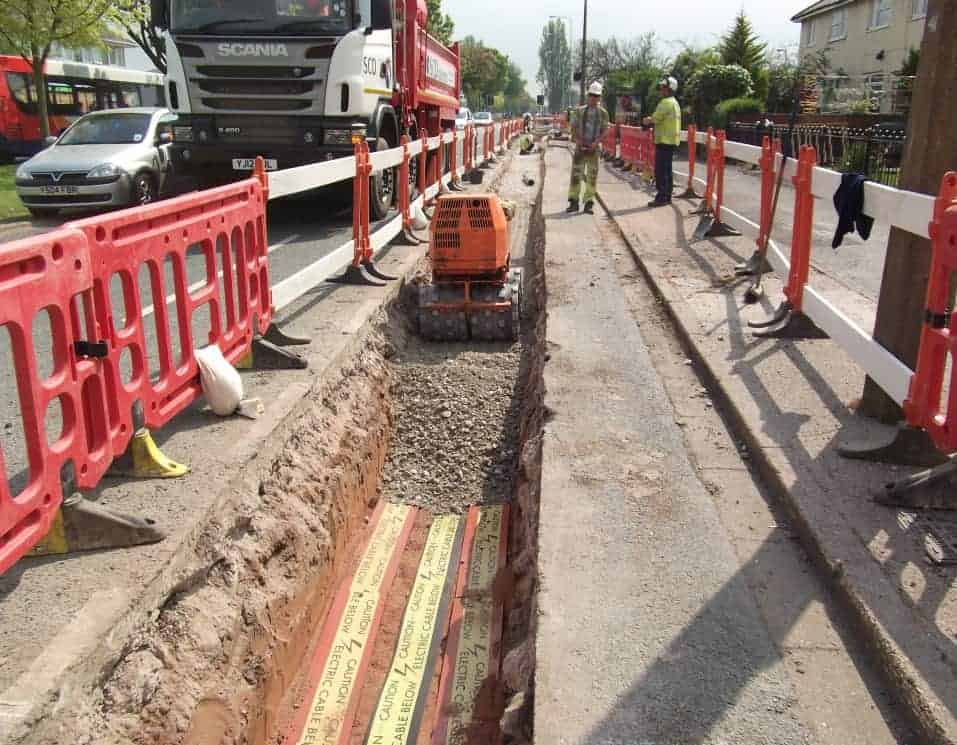

Marker tile tapes or Stokbord covers are installed over the cable in the appropriate trench drawings – usually there is no requirement to install either above approved cable ducts installed using trenchless techniques (i.e. directional drill) but either may be installed if it is deemed that additional MV-HV cable protection is required.

When Tape Tile is used it should be cut cleanly and installed so that the medium/high voltage cable is fully covered along the whole length of the installed cable duct.

• LV Service Cable 40m x 200mm x 2.5mm Tape Tile
• LV Mains Cable 40m x 200mm x 2.5mm Tape Tile
• 11kV MV Cables 40m x 200mm x 2.5mm Tape Tile
• 22kV MV Cables 40m x 200mm x 2.5mm Tape Tile
• 33kV MV Cables 1000mm x 244mm x 9mm Stokbord
• 66kV MV Cables 1000mm x 244mm x 9mm Stokbord
• 132kV MV Cables 1000mm x 244mm x 9mm Stokbord

More info  ➡ Tile Tape | Stokbord

Underground Cable Protection

• Further reading :

• Cable Laying & Pulling – Installing LV-HV Cable In Duct (Part 1 of 2)
• Cable Laying & Pulling – Installing LV-HV Cable In Trench (Part 2 of 2)

Cable Pulling & Cable Laying Equipment

Suppliers & Distributors

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation of low, medium and high voltage power cables into underground trench or duct – products also supplied for fibre optic blowing, subsea trenching, offshore umbilical installations and pulling armoured cables onto cable tray.

Contact us for 3M Electrical, ABB, Alroc, AN Wallis, CATU Electrical, Cembre, Centriforce, CMP, CSD, Elastimold, Ellis Patents, Emtelle, Euromold, Filoform, Furse, Lucy Electric & Zodion, Nexans, Pfisterer, Polypipe, Prysmian, Roxtec, Sicame, WT Henley.
