Cold Shrink Technology & Moulded Parts For Electrical Installation | Fast & Easy To Install
Published 04 May 2021
3M Cold Shrink
Cold shrink tubing and moulded parts for electrical installation

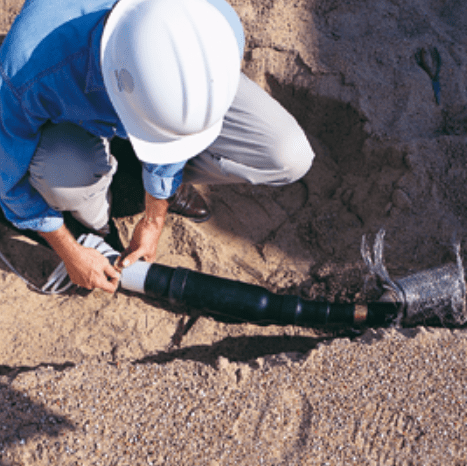

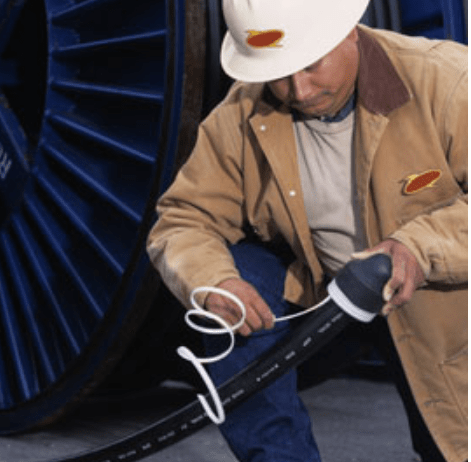

Invented over 40 years ago by 3M, 3M Cold Shrink Technology is designed to make cable insulating, termination and abandonment as simple as possible. The secret of 3M Cold Shrink technology lies inside it, in the form of a plastic coil. After the 3M Cold Shrink Tube has been placed over the joint or cable end, this inner spiral is pulled out. The insulating tube then contracts and seals onto the cable, exerting constant radial pressure for the lifetime of the joint or termination.

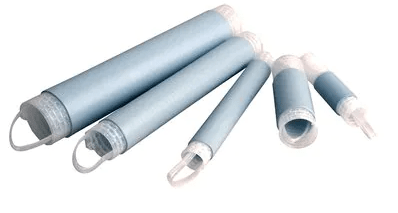

3M Cold Shrink Tubes are installed easily and reliably without the use of cable jointing tools (e.g. gas torches or naked flames). The Cold Shrink tubes manufactured by 3M Electrical are made from extruded EPDM (Ethylene-Propylene-Diene-Monomer) or silicone rubber that are stretched onto a spiral core.
The benefits of cold shrink tubes clear a long-term environmental seal that has high performance even in extreme conditions. The tool-free installation reduces downtime, installation time and training requirements.
Cold Shrink Applications
- Electrical insulation up to 1000 volts
- Insulation of low voltage joints for electrical cables
- Cold Shrink is suitable for indoor and outdoor use
- Mechanical protection of installation
- Cable jacket repair
- Protecting and sealing non-electric applications
Silicone
Cold Shrink Advantages
- Easy and safe installation
- High reliability
- High shrink ratio
- Compressive environmental seal
- Tool-less installation of Cold Shrink
- Reduced contractor training requirement
- Reduced installation time compared to heat shrink
- High performing in extreme conditions
