Cable Terminations

Cable Terminations | Heat Shrink | Cold Shrink | Push-On | MV HV Medium & High Voltage

  • Category: Nexans Power Cable Accessories Videos
  • Product: Cable Terminations
  • Type: Heat Shrink Cable Termination
  • Cable Termination Range: Nexans MONOi | Nexans MONOe
  • Voltage Category: MV Medium Voltage | HV High Voltage
  • Voltage Classes: 11kV/12kV | 24kV | 33kV/36kV
  • Manufacturer: Nexans
  • Uploaded By Chris Dodds – Thorne & Derrick Sales & Marketing Manager

Cable Terminations

Nexans MONO type MV cable terminations are heat shrink terminations consisting of a single-piece heat shrink tube – the anti track tube features integral stress control co-extruded into the heat shrink tubing suitable for terminating single core polymeric insulated cables, such as XLPE or EPR, with working voltage classes of 11kV, 24kV and 33kV.

Both Nexans MONOi (Indoor Termination) and MONOe (Outdoor Termination) contain sufficient material to terminate 3 single core cables i.e. 3 phase cable termination kits.

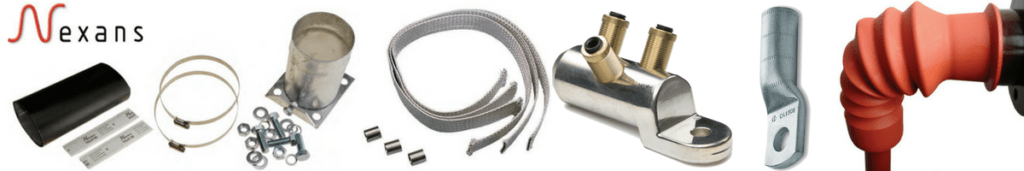

Nexans terminations are available in both heat shrink, cold shrink and slip-on type technologies for terminating cables into switchgear, transformers and pole-mounted applications – single core termination kits are available for MV cables with copper wire or copper screen and armoured/unarmoured construction. The cable termination accommodates both shearbolt cable lugs or crimp lugs.

Nexans MONOi

MV HV Heat Shrink Indoor Cable Terminations

Up To 33kV

The following table enables the selection of Nexans MONOi indoor heat shrink terminations for 11kV, 24kV and 33kV voltage cables:

Voltage Um kV Indoor Cable Termination Nexans Type Application Range (sqmm) Termination L (mm)
11/12kV 3x12MONOi 1.95 25-95 260
11/12kV 3x12MONOi 1.240 70-240 260
11/12kV 3x12MONOi 1.400 185-400 280
11/12kV 3x12MONOi 1.630 400-630 310
24kV 3x24MONOi 1.95 25-95 320
24kV 3x24MONOi 1.240 70-240 320
24kV 3x24MONOi 1.400 185-400 340
24kV 3x24MONOi 1.630 400-630 370
33/36kV 3x36MONOi 1.95 25-95 420
33/36kV 3x36MONOi 1.240 70-240 420
33/36kV 3x36MONOi 1.400 185-400 440
33/36kV 3x36MONOi 1.630 400-630 460



Nexans MONOe

MV HV Heat Shrink Outdoor Cable Terminations

Up To 33kV

The following table enables the selection of Nexans MONOe outdoor heat shrink terminations for 11kV, 24kV and 33kV voltage cables:

Voltage Um kV Outdoor Cable Termination Nexans Type Application Range (sqmm) Termination L (mm)
11/12kV 3x12MONOe 1.95 25-95 390
11/12kV 3x12MONOe 1.240 70-240 390
11/12kV 3x12MONOe 1.400 185-400 410
11/12kV 3x12MONOe 1.630 400-630 440
24kV 3x24MONOe 1.95 25-95 410
24kV 3x24MONOe 1.240 70-240 410
24kV 3x24MONOe 1.400 185-400 440
24kV 3x24MONOe 1.630 400-630 490
33/36kV 3x36MONOe 1.95 25-95 470
33/36kV 3x36MONOe 1.240 70-240 470
33/36kV 3x36MONOe 1.400 185-400 500
33/36kV 3x36MONOe 1.630 400-630 520



More Cable Jointing Videos | Heat Shrink Joints Transition | Heat Shrink Joints Straight | Separable Connectors | Cold Shrink Joints | Cold Shrink Terminations

THORNE & DERRICK Product Categories: Duct Seals | Cable Cleats | Cable Glands | Electrical Safety | Arc Flash Protection | Cable Jointing Tools | Cable Pulling | Earthing | Feeder Pillars | Cable Joints LV | Joints & Terminations MV HV

Euromold

The Euromold range of Separable Connectors are suitable for the termination of power cables onto all MV-HV bushing interfaces:

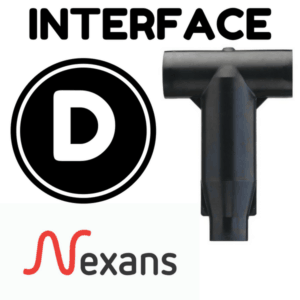

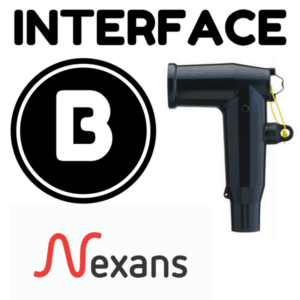

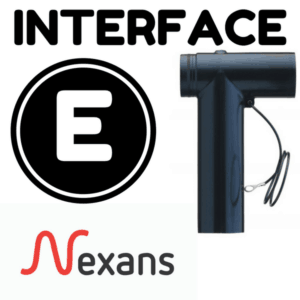

Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs - Interface A Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs – Interface B Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs – Interface C Compact Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs – Interface C Symmetrical Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs – Interface D Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs – Interface E
