3M 92 NBA GS Scotchcast resin cable joint kits are low-voltage cable jointing kits using the innovative epoxy, CMR-free 3M™ Scotchcast™ 4 GS Resin.
3M 92-NBA GS Scotchcast cable joints incorporate electrical insulation and mechanical protection and are compatible with both compression (crimp) or mechanical shearbolt connectors for conductor jointing of copper or aluminium cores – this includes approved brands Cembre, Prysmian and Klauke.
92 NBA GS Scotchcast resin cable joint kits includes 8 sizes with options of an integrated connector and different joint types. It features a unique design which builds upon the experience of 3M in low voltage cable accessories.
3M Scotchcast hazardous area cable joints are available for jointing power, pilot and instrumentation cables in Zone 1 and Zone 2 potentially explosive atmospheres – see information about Cold Shrink type cable joints for safe installation (“no hot-working”) required for hazardous area location (HAZLOC) applications.
3M Scotchcast Resin 4 GS with Colour Indicator
3M Scothcast Resin 4 GS is a 2-part, epoxy-based, CMR-free electrical resin for cable splicing, up to 1kV application.

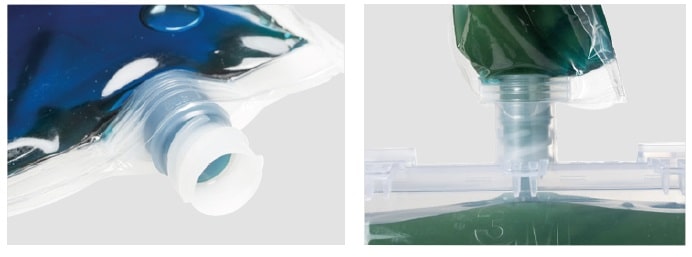

The unique 3M formulation changes colour after the two components of the resin have been correctly mixed. The resin has an enhanced humidity performance during the curing process, and it is supplied with an innovative delivery spout integrated to the resin bag for easy and clean application.
An innovative one-part transparent mould design with a closed mix resin pouring system ensures a mess free, no contact, fast application. The sealing foam at each end of the joint means there is no need to cut the mould shell to size.
Through a colour changing indicator, the resin will turn green when properly mixed. The resin colour changes to a darker green as the curing proceeds. The resin will complete the colour
change in 30 minutes (average time for a kit 92-NBA 3 GS at 23°C).
- Newly designed CMR Free formulation
- Unique colour change indicator for mixing
- Enhanced water and humidity resistance during curing
- Fully integrated mess-free delivery spout
- Immediate power-up
- Choice of bag sizes to suit your application
- Practical – One-piece transparent mould
- Reliable – Visual control of resin delivery
- Clean – Integrated pouring spout
- Fast – No cutting, no taping, mess-free application
- Safe – Contact free design

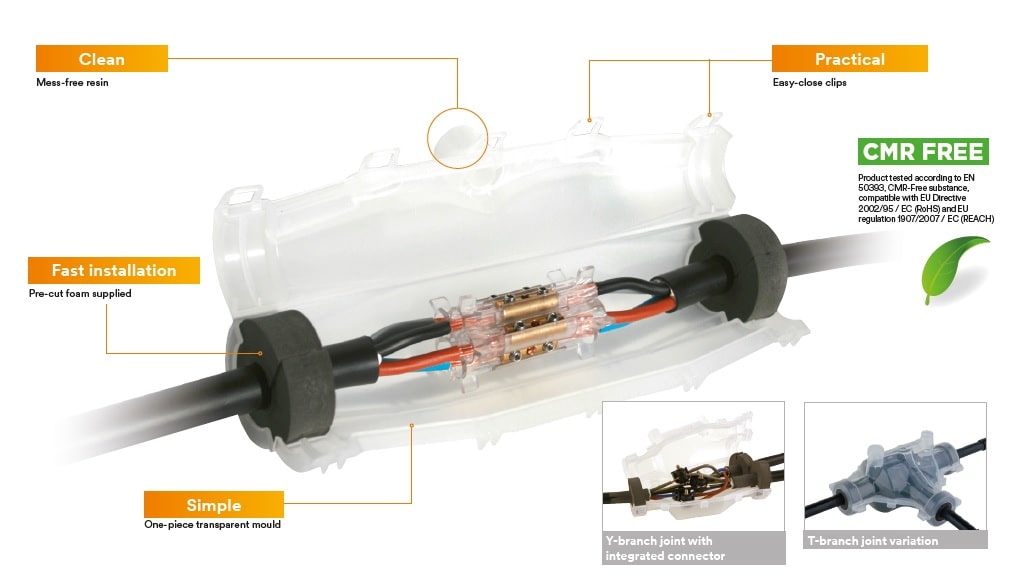

3M Scotchcast 92 NBA GS Resin Kit
Safe, Fast & Easy Installation of Cable Joints
3M™ Scotchcast™ Resin 4 GS is a general-purpose premium electrical resin supplied in a two-component bag. A bag opener is included. After the yellow and blue components have been mixed the resin turns into a homogeneous green colour, and the colour becomes darker green when the resin is cured.
It is suitable for the electrical insulation and mechanical protection of electrical splices for application up to 1 kV. The 3M Scotchcast Resin 4 GS meets IEC 60455-3-8 requirements and is compliant with EU directive 2011/65/EU (RoHS) and EU directive 1907/2007/EC (REACH), guaranteeing the highest grade of electrical insulation for professional and safe application.
3M Scotchcast 92 NBA GS Resin Kits ship with Epoxy Resin 4 GS resin 2-part bag
Simple, Colour Indicating Mixing & Curing
 |
 |
 |
 |
 |
 |

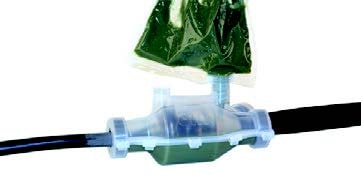

| Transparent two-chamber bag with an integrated spout ensures no contact with resin during pouring. | Open the seam between the two chambers to mix the resin and hardener. | In approx 2 minutes the resin will turn green to indicate it is thoroughly mixed. | A visible colour change indicates the mixture is ready to pour. | Place the spout on the mould body, quarter turn to release the resin and fill the kit. | Within 30 minutes the resin colour changes to darker green as the curing proceeds. |
In-Line Cable Jointing kits
| 3M Part Reference | 0.6/1kV Cables, Application Range Guide | Other Cables Cable Diameter (mm) | External Size Ø x L (mm) | Volume of Resin | SAP ID | |
| Min | Max | |||||
| 92 NBA 0 GS | 4 core 1.5-4 mm2 | 4 | 16 | 38 x 148 | 1 x 90 ml | 7100229879 |
| 92 NBA 1 GS | 4 core 1.5-10 mm2 | 10 | 22 | 42 x 178 | 1 x 135 ml | 7100229880 |
| 92 NBA 2 GS | 4 core 16-25 mm2 | 12 | 25 | 48 x 230 | 1 x 200 ml | 7100229876 |
| 92 NBA 3 GS | 4 core 16-35 mm2 | 13 | 32 | 56 x 270 | 1 x 370 ml | 7100229841 |
| 92 NBA 4 GS | 4 core 25-50 mm2 | 18 | 36 | 69 x 319 | 1 x 680 ml | 7100229842 |
| 92 NBA 5 GS | 4 core 50-95 mm2 | 19 | 45 | 82 x 369 | 1 x 1375 ml | 7100229874 |
| 92 NBA 6 GS | 4 core 70-150 mm2 | 27 | 54 | 107 x 479 | 2 x 1375 ml | 7100229873 |
| 92 NBA 7 GS | 4 core 120-240 mm2 | 29 | 64 | 136 x 643 | 3 x 2200 ml | 7100229872 |
Branch Cable Jointing Kits
| 3M Part Reference | Branch Type | 0.6/1kV Cables, Application Range Guide | Other Cables, Cable Diameter (mm) |
SAP ID | ||
| Main | Branch | Main | Branch | |||
| 92 NBB 0 GS | Y | 4 core 1.5-4 mm2 | 4 core 1.5-4 mm2 | 9 – 18 | 9 – 18 | 7100229871 |
| 92 NBB 1 GS | Y | 4 core 2.5-16 mm2 | 4 core 2.5-16 mm2 | 11 – 23 | 11 – 23 | 7100229886 |
| 92 NBB 2 GS | Y | 4 core 4-35 mm2 | 4 core 4-25 mm2 | 16 – 33 | 16 – 33 | 7100229884 |
| 92 NBC 2 GS | T | 4 core 4-35 mm2 | 4 core 4-25 mm2 | 16 – 33 | 16 – 33 | 7100229424 |

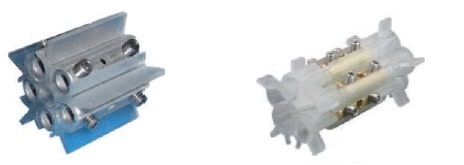

Resin Cable Joint kits with integrated connectors
Description: Resin cable joint kits with integrated connector consist of a one-piece transparent mould body, one or more Scotchcast No. 4 GS 3M epoxy resin bags and a multi-section connector.
- 92 NBA 1C GS: multi section connector, suitable for 5 core 1.5-6 mm2 solid or stranded copper conductors
- 92 NBA 3C GS : multi section connector, suitable for 5 core 1.5-16 mm2 solid or stranded copper conductors
| 3M Scotchcast Part Reference | 0.6/1kV Cables, Application Range Guide | External Size Ø x L (mm) | SAP ID |
| 92 NBA 1C GS | 5 core 1.5-6 mm2 | 178 x 42 | 7100229878 |
| 92 NBA 3C GS | 5 core 1.5-16 mm2 | 270 x 56 | 7100229875 |
Branch jointing kits with integrated connector
Description: T and Y branch cable joint kits variations for joint flexibility. Product includes with transparent mould body, Scotchcast No. 4 GS 3M epoxy resin bags and a multi-section connector.
| 3M Part Reference |
Branch Type |
0.6/1kV Cables, Application Range Guide |
SAP ID |
|
| Main | Branch | |||
| 92 NBB 1C GS | Y | 4 core 2.5-10 mm2 | 4 core 2.5-10 mm2 | 7100229885 |
| 92 NBB 2C GS | Y | 4 core 4-16 mm2 | 4 core 4-16 mm2 | 7100229855 |
| 92 NBC 2C GS | T | 4 core 4-16 mm2 | 4 core 4-16 mm2 | 7100229606 |
3M Scotchcast Epoxy Resin 4 GS Bags
| 3M Part Reference | Scotchcast Resin Volume | SAP ID |
| Bag size A | 90 ml (121 g) | 7100229425 |
| Bag size B | 200 ml (268 g) | 7100229877 |
| Bag size C | 370 ml (496 g) | 7100229863 |
T&D Stock & Distribute the complete range of 3M Cable Joints & Cable Terminations using resin and cold shrink for LV, MV & HV cables.
