Alroc CNPT/630-1-MV-NG – 11kV 33kV Cable Jointers Tool Kits (With Pencilling Tool)

Alroc CNPT/630-1-MV-NG MV HV Cable Jointing Kit

ALROC CNPT/630-1-MV-NG

Medium & High Voltage Cable Preparation & Jointing

Alroc CNPT/630-1-MV-NG cable tool kits are used by MV-HV jointers to remove the outer sheath and insulation to prepare the cable ready for the installation of joints, terminations or connectors. This Jointers Tool Kit can be used to:

  • Work on and remove the outer sheath
  • Remove or work on the shield
  • Remove the outer semi-conductor
  • Remove the insulation
  • Shape the insulation
  • Tool kits overview
  • Maintain, hang and fix cables

Cable jointing tools included in the kit CNPT/630-1-MV-NG enable the user to splice each layer of distribution underground cable ranging from 50sqmm up to 630sqmm in 12/20 kV, prior to junctions or cables terminations installation. When pencilling is required (not normally needed for moulded rubber cable accessories) a full, smooth taper is needed to eliminate the possibility of air voids. The semi-conductive layers and resulting reside must be completely removed – this is achieved the jointer using either abrasives or cleaners.

For any other voltage rating, please check the outer diameter capacity of each tools included in the kit.

Alroc - Cable Jointing Tools

Tool Kit Contents

Alroc MF2/60 – Multifunction tool for outer sheath and insulation
MF1+/60 – Tool for bonded semiconductor and peelable with stylus
SCH – Chamfering stylus for insulation
ALROC-FENTE – Tool to perform slits on cable’s outer sheath
ROTO-TMG – Connector holder for bolted and clamping connections
GFE-TMG – Roller block for R OTO-TMG to tighten the outer sheath over screen connection
K7/GRATT – Cartridge dedicated to sheath abrading, to be mounted on tool ROTO-TMG
EV/NPT – Tool to spread PE outer sheath with aluminium screen
EV 630 – Tool to spread PVC outer sheath with aluminium screen
LIGAREX – Clamping tool with return spring for straps
TC630 – Penciling tool for insulation for 630sqmm in 12/20 kV cables

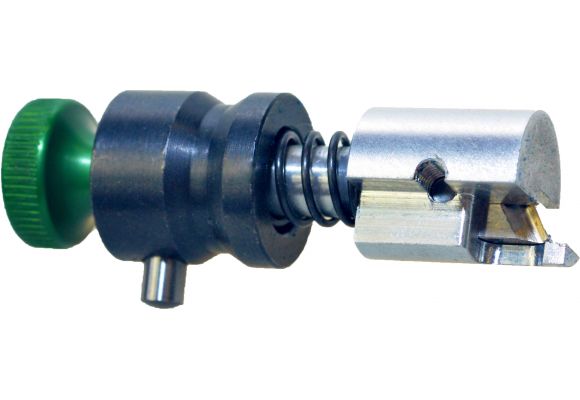

Alroc SCH - Chamfering stylus for insulation

Alroc SCH – Chamfering stylus for insulation

Alroc CNPT/630-1-MV-NG – Technical Specification

Cable Tool Part Number Diameter Tool Capacity Dimensions Packaging
Section according to voltage rating Penciling tool included Length Width Height
Alroc CNPT/630-1-MV-NG 16 – 58 mm 0,630 – 2,283 in 50 – 630sqmm TC630 575 mm 22,638 in 470 mm 18,504 in 145 mm 5,709 in Case

Cable Jointing Tool Sets

Jointers ToolsCable Tools Jointing Cables Alroc MV HV 11kV 33kV

MV HV EHV

  • MV Medium Voltage Cables 11kV 33kV
  • HV High Voltage Cables 66kV
  • EHV Extra High Voltage Transmission & Distribution Cables 132kV 245kV 400kV
MV HV – Medium & High Voltage Cable Joints, Terminations & Connectors (11kV 33kV EHV)

Pfisterer | 3M | Nexans | Prysmian – Joints, Terminations & Connectors MV HV

➡ For further information about Alroc cable tools for removing cable screen from MV-HV cables please see below.

T&D also distribute Cembre tools for cable cutting and cable crimping of copper and aluminium conductors.

Remove Cable Screen - Cable Jointing Tools
