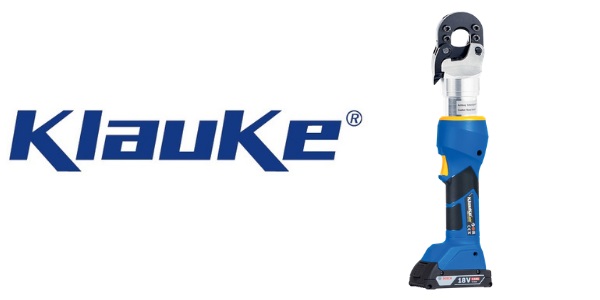

Battery Powered Cable Cutting Tool 25mm Dia – Klauke ESG25

attery Powered Cable Cutting Tool 25mm Dia – Klauke ESG25

attery Powered Cable Cutting Tool 25mm Dia – Klauke ESG25

The Klauke ESG25 is a battery powered cable cutting tool that has a maximum diameter range for cable lugs and connectors of 25mm – suitable for cutting Al/St cables (ACSR), round materials (Cu, Al, St) as well as armoured cables, solid structural steel and fine stranded copper cables. The Klauke ESG25 is high-performance cutting characteristics for highly-flexible conductors and wire cables and is extremely robust and lightweight in design.

The Klauke ESG25 cutting tool uses iPress App which allows all tool data to be viewed at a glance.

Klauke cutting tools are available with Bosch or Makita battery system.

Battery powered hydraulic cutting tool with a cutting range up to 25mm.

➡ See also: Battery Operated Cable Crimping Tools

Battery Powered Cable Cutting Tool 25mm Dia – Features

  • Option for battery system: Bosch or Makita
  • Easy readout of all data via Bluetooth
  • Closed head, flip top style, rotatable battery powered cable cutting tool
  • Klauke ESG25 is simple and safe: one-button operating concept for controlling all tooling functions
  • Effortless operations because of balanced centre of gravity
  • Cutting tool features a LED for workplace illumination
  • Simple and safe: Automatic retraction of cutting tool head when operation is complete
  • Manual retraction stop (MRS) for efficient operations
  • Always ready for use thanks to the battery charge status and service display
Battery Powered Cable Cutting Tool 25mm Dia - Klauke ESG25

Battery Powered Cable Cutting Tool 25mm Dia – Klauke ESG25

Technical Specification

Cutting head type Guillotine closed
Cutting tool range max. 25 mm dia.
Cutting tool force 60 kN
Cutting time Depending on material
Battery voltage 18 V
Battery capacity 2.0 Ah, Li-Ion
Charging time 15 min
Weight incl. battery 2.0 kg
Ambient temperature -10°C to +40°C



CABLE TOOLS

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.

Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.

Cable Crimping Cable Cutting Tools

View the complete range of Cable Crimping & Cable Cutting Tools
