Cable Drum Trailer | CBS C-751 (Max Weight 1630kg)

Cable Drum Trailer | CBS C-751

Cable Drum Trailers

CBS C-751

The C-751 Drum Trailer is designed for efficient and secure transportation of cable drums and is available in three different versions. Constructed from robust steel sections, it features a manually operated hydraulic system for lifting drums. An optional drum braking arrangement can be added, which is particularly beneficial for conductor stringing operations where pulling the conductor is necessary.

The trailer uses an overrun braking system that meets EC specifications and includes an auto-reverse feature as standard for enhanced safety. Additionally, all models come equipped with standard lighting for improved visibility during transport. Importantly, all versions of the C-751 Drum Trailer are IVA approved, ensuring compliance with relevant safety and regulatory standards.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.

Cable Drum Trailer

➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.

CBS C-751 Cable Drum Trailer Key Features

Lighting – Stop, tail, direction, indicators with connectors
Suspension – Swinging arm with aeon suspension
Braking – Drum brakes to EC specification with hand brake
Lifting Arrangement – Hand operated hydraulic pump with individual valves for each ram
Towing Eye – 50mm diameter fitted as standard

Drum Trailer Specification

	C-751-10	C-751-13-01	C-751-16
Max Drum Weight	1000kg	1300kg	1630kg
Max Drum Width	1050mm	1100mm	1050mm
Min Drum Diameter	1000mm	800mm	900mm
Max Drum Diameter	1800mm	2000mm	2185mm
Tyres	185 R13	195 R14 08	215/75R 16C
Length	2700mm	3172mm	3419mm
Width	1950mm	2140mm	2233mm
Height (No Drum)	1350mm	1646mm	1855mm
Weight	350kg	475kg	680kg
Spindle Diameter	63mm	63.5mm	70mm

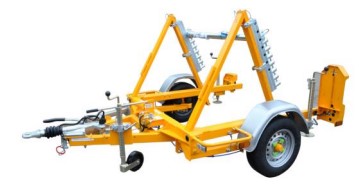

C-751 Cable Drum Trailer

Cable Drum Trailer Ordering Information

C-751-10	C-751 – 1000kg
C-751-13-01	C-751 – 1300kg
C-751-16	C-751 – 1600kg

Cable Drum Trailer | Triple Braked Drum Trailer
