Capstan Winch | CBS C-1210-500-1 Petrol Winch
capstan winch

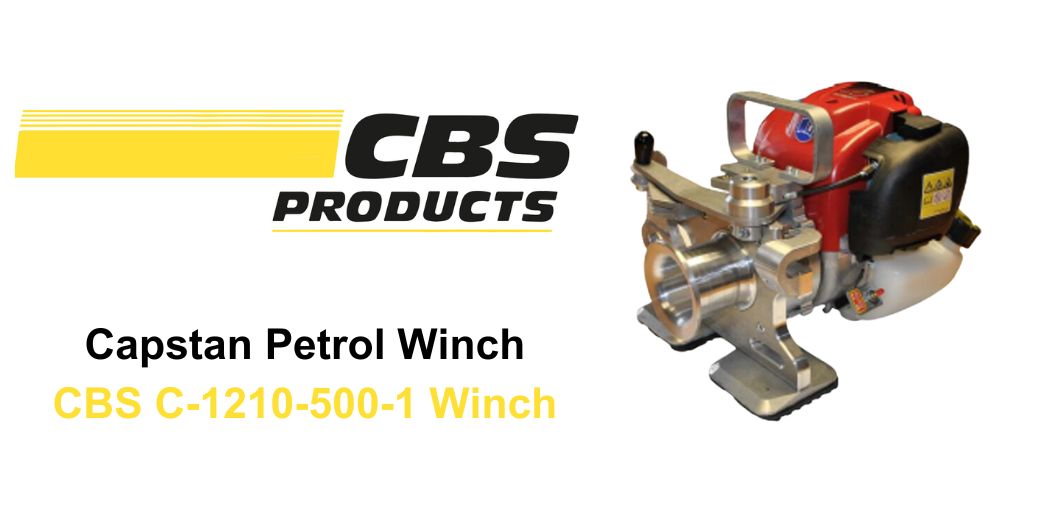

CBS C-1210-500-1 Petrol Winch
The Petrol Capstan Winch is designed by CBS Products for overhead lines to provide reliable safe vehicle lifting operations for 11/33kV work and maintenance requirements. Winching is controlled via a proportional hydraulic valve giving the operator precise control over the load when needed or high speed if necessary.
Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.
Cable Winch Design Features
The C-1210-500-1 Petrol Capstan Winch is a lightweight at just 8.5kg, therefore enabling easy handling and smooth running. This unit is designed for the operator to use from a safe distance, by gently pulling the rope of the throttle control unit, the load is pulled.
Fitted with a rope brake that ensures a users safety during operation, as soon as the rope is release by the operator, the winch will stop, preventing unintentional sliding back.
Winch Specification
➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.
| Capacity | 500kg |
| Length | 33cm |
| Width | 29cm |
| Height | 26cm |
| Weight | 8.5kg (No Rope) |
| Speed | Max. 12m/min |
motor details
| Type | Air-cooled, 4 stroke |
| Power | 1 kw/1.3 hp |
| Cylinder Capacity | 35.8cm³ |
| Motor Speed | Max. 7000rpm |
| Tank Capacity | 0.58ltr |
| Noise level | 106db (A) |
Ordering information
| C-1210-500-1 | Petrol Capstan Winch |
optional extras
Designed for towing behind small vehicles, the Petrol Capstan Winch has operational stability provided by ground anchors on the towbar or by employing the towing vehicle as an anchor.
| C-1210-500-2 | Vehicle Tow Hitch Attachment |
