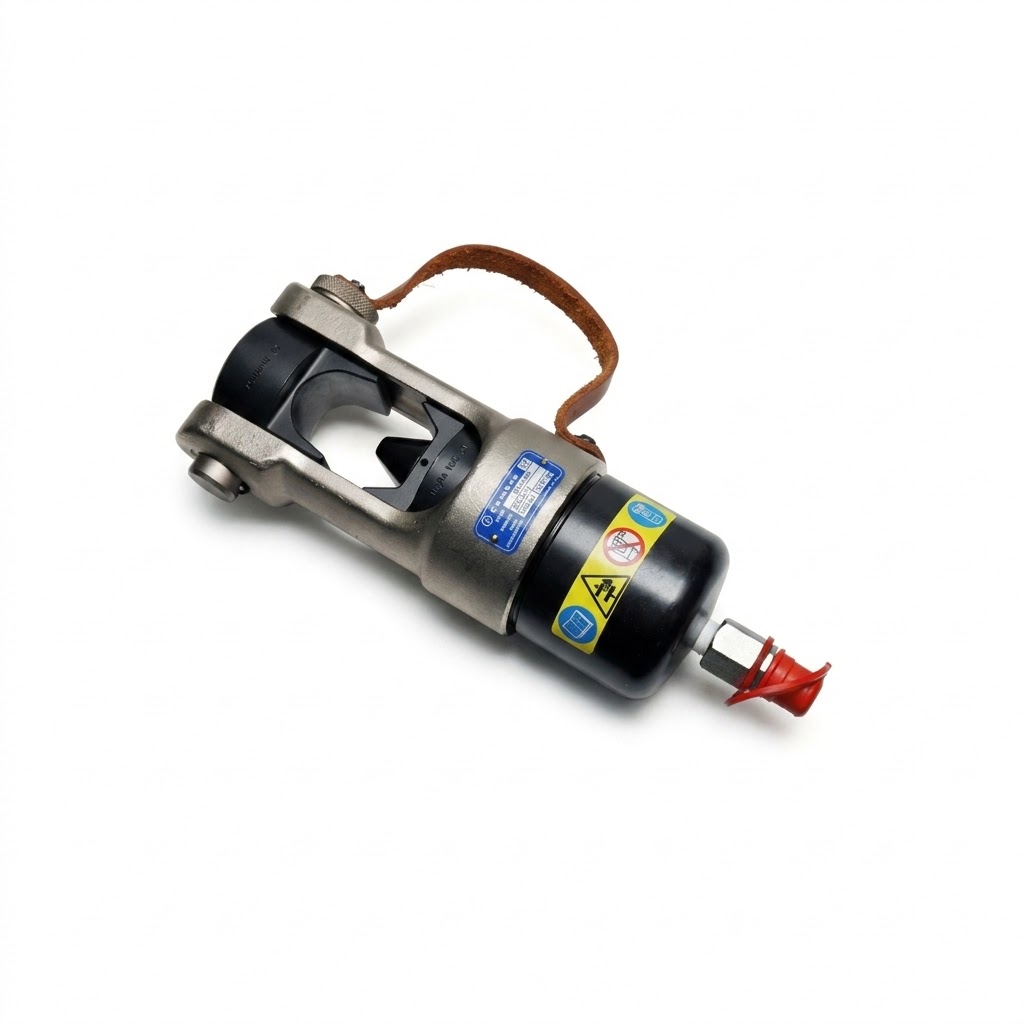

Cembre ECW-H3D Hydraulic Presshead (400-630sqmm Crimping Tool)

Cembre ECW-H3D Hydraulic PRESSHEAD Crimping Tool 18V

Product Code: Cembre ECW-H3D

LV-HV Cable Crimping Tools | Distributed from Stock | Approved Cembre Supplier | UK & Export Sales

The Cembre ECW-H3D is an 18V cordless hydraulic crimping tool for fast, controlled crimping of electrical connectors and lugs across LV–HV work. As a high-performance battery crimping tool, it supports connectors up to 630sqmm using Cembre’s common 130kN die sets ideal for site and workshop use where speed, repeatability and one-handed handling matter. For matched accessories, see Cable Crimps, Lugs & Connectors.

SEE TECHNICAL SPECIFICATIONS

GO TO DIE SET OPTIONS

HYDRAULIC PRESSHEAD CRIMPING TOOL Product Overview

ECW-H3D Technical Specifications

LV-HV Cable Crimping Applications

Cembre ECW-H3D is generally used to terminate copper or aluminium conductors during the installation of LV cable glands (up to 630sqmm) or MV HV joints and terminations (up to 630sqmm).

• LV Cable Lugs & Splices – up to 630sqmm cable conductors
• HV Cable Lugs & Splices (11kV-33kV) – up to 630sqmm cable conductors
• “C” Sleeve Copper Connectors – up to 240sqmm cable conductors
• Insulated Terminals – up to 300sqmm cable conductors

Connecting the ECW-H3D to hydraulic foot pump is quick and easy using the male Quickfit automatic coupler to deliver 700bar compression force – the ECW-H3D is compatible with both the Cembre PO7000 2-speed foot operated pump or Cembre B70M-P24 portable 24v electro-hydraulic pump.

➡ For Cembre electrical connections, see Cable Crimps, Lugs & Connectors

Cembre ECW-H3D PRESSHEAD Crimping Tool User Instructions

Cembre provides a matched crimping system to ensure secure LV MV HV electrical connections (lugs and splices) manufactured from copper or aluminium in accordance with CE Marking and international standards – includes a full range of nest, indentor and die sets compatible with their hydraulic and battery crimping tools, all manufactured by Cembre.

dedicated dies

• Select the appropriate die set for the connector to be crimped
• Extract the die retaining pin (09) from the presshead
• Insert the lower die (26b) and align the groove (30) in the die, with the guide pins (15) in the crimp tool head
• Insert the upper die (26a) into the tool head
• Insert the die retaining pin (09) in the tool head and through the upper die
• Ensure the spring loaded pin (10) is fully released

 SEMI-CIRCULAR DIES

• Select the appropriate die set for the connector to be crimped
• Extract the die retaining pin (09) from the presshead
• Insert the lower half of adapter Cembre AU230-130D (31b) and align the groove (30) in the adapter, with the guide pins (15) in the crimp tool head
• Insert the upper half of the adapter Cembre AU230-130D (31a) into the tool head
• Insert the die retaining pin (09) into the head and through the adapter
• Ensure the spring loaded pin (10) is fully released

For crimping application using Cembre ECW-H3D tools including heavy duty copper tube connectors, nylon insulated copper connectors, copper “C” connectors and high voltage lugs/connectors please contact T&D.

Contact T&D to discuss crimping cables at MV-HV, including 11kV-33kV, to ensure correct Cembre tool, lug/splice and die set selection – visit battery crimping tools for repetitive crimping of cables without strain injury or worker fatigue.

Full range of battery cable cutting tools also available.

Die Set Options

A complete range of die sets are available for crimping all types of cable lugs and connectors for use with the Cembre ECW-H3D tool.

Cable Conductor Size	A Range Lugs LV 600/1000V	2A Range Lugs MV HV 11kV 33kV	Flexible Copper Lugs	ANE Nylon Insulated Lugs	CA Copper Lugs	AA Aluminium Cable Lugs	CAA Bi-Metallic Cable Lugs
10sqmm	ME2-C	ME2-C	–	MN2RF-C	–	–
16sqmm	ME3-C	ME3-C	–	MN3RF-C	–	MK16-C	MK16-C
25sqmm	ME5-C	ME5-C	–	MN5RF-C	MMT25-C	MK16-C	MK16-C
35sqmm	ME7-C	ME7-C	ME9-C	MN7RF-C	MMT50-C	MK16-C	MK16-C
50sqmm	ME10-C	ME10-C	ME12-C	MN10RF-C	MMT50-C	MK20-C	MK20-C
70sqmm	ME14-C	ME14-C	ME17-C	MN14RF-C	MMT95-C	MK20-C	MK20-C
95sqmm	ME19-C	ME19-C	ME20-C	MN19RF-C	MMT95-C	MK20-C	MK20-C
120sqmm	ME24-C	ME24-C	ME29-C	MN24RF-C	MMT200-C	MK25-C	MK25-C
150sqmm	ME30-C	ME30-C	ME35-C	MN30RF-C	MMT200-C	MK25-C	MK25-C
185sqmm	ME37-C	ME37-C	ME40-C	–	MMT200-C	MK32L-C	MK32L-C
240sqmm	ME48-C	ME48-C	–	–	MMT315-C	MK32L-C	MK32L-C
300sqmm	ME60-C	ME60-C	–	–	MMT315-C	MK34L-C	MK34L-C
400sqmm	ME80-3D	ME80-3D	–	–	ME80-3D	–	–
500sqmm	ME100-3D	ME100-3D	–	–	ME100-3D	–	–
630sqmm	ME120-3D	ME120-3D	–	–	ME120-3D	–	–

---

Cembre MG4 Thermal Printer represents the next generation in thermal transfer printing technology, designed to enhance the efficiency and quality of cable cutting, crimping and labelling tools.

Cembre ECW-H3D Presshead (400-630sqmm Crimping Tool)

ECW-H3D Tool | Hydraulic Presshead

LV-HV Cable Crimping Tools | Distributed from Stock | Approved Cembre Supplier | UK & Export Sales

Cembre ECW-H3D is a hydraulic presshead crimping tool complete with male quick automatic coupler for connection to a hydraulic pump with a working pressure of 10,000 psi max.

Adaptor type AU230-130D is available as an optional extra enabling the tool head to utilise the semi-circular slotted dies which are common to most 12 tons tools (U or C shaped dies) – the hydraulic crimp head is suitable for LV HV cable lugs, connectors and splices up to 630sqmm.

The ECW-H3D hydraulic crimping head has an available series of dies for the compression of DIN electrical connectors – refer to the table below. The crimping tool presshead weighs 5.5kg and is supplied in a robust steel case which is suitable for storage of the crimper head tool – used to joint and terminate lugs or connectors on LV MV HV cables including 11kV/33kV medium/high voltage electrical systems.

Thorne & Derrick are Main UK Stockists & Distributors for the complete range of Cutting & Crimping Tools manufactured by Cembre for polymeric/paper insulated cables with SWA or AWA armour (or unarmoured), wire braid or lead sheath and copper or aluminium conductors – this includes Low, Medium & High Voltage Signal, Instrumentation & Power Cables.

Cembre ECW-H3D Presshead

User Instructions

• Cembre ECW-H3D tool is equipped with a “self-lock” quick male coupler which can be connected to a Cembre pneumatic or electric pump
• Select the appropriate die set for the connectors (crimp lugs or splices) for use with the presshead
• Open the latch and release the upper die holder of the hydraulic crimping tool or presshead
• Insert one die into the upper die holder and one die into the lower die holder
• Close the latch on the presshead
• Insert the conductor into the connector (crimp lug or splice)
• Locate the connector between the crimping dies at the desired crimp position
• Operate the pump to advance the main ram of the Cembre ECW-H3D
• Continue to operate the pump, the ram will gradually advance until crimp dies meet
• Recommended to keep pumping until the maximum pressure valve is activated and a “click” is heard
• After crimping completion press the release lever to release oil pressure
• Recommend only Cembre Lugs & Connectors are used with Cembre tooling

Hydraulic Foot Pump Options

Connecting the ECW-H3D to hydraulic foot pump is quick and easy using the male Quickfit automatic coupler to deliver 700bar compression force – the ECW-H3D is compatible with both the Cembre PO7000 2-speed foot operated pump or Cembre B70M-P24 portable 24v electro-hydraulic pump.

Cembre ECW-H3D Crimping Tool Die Set Options

A complete range of die sets are available for installing and crimping all types of Cembre lugs and connectors – the die sets indicated in itallics must be used in conjunction with the AU230-130D adaptor die to allow use with the ECW-H3D.

CEMBRE ECW-H3D Presshead

TECHNICAL SPECIFICATION

Should you require technical guidance, user assistance, application support or a competitive quotation for Cembre Tool Model ECW-H3D please contact Thorne & Derrick.

Cembre ECW-H3D Presshead – Hydraulic Crimping Tool

Cembre ECW-H3D presshead supplied with protective carrying case, tool manual and crimp die sets

LV- HV CABLE CRIMPING APPLICATIONS

Cembre ECW-H3D is generally used to terminate copper or aluminium conductors during the installation of LV cable glands (up to 630sqmm) or MV HV joints and terminations (up to 630sqmm).

• LV Cable Lugs & Splices – up to 630sqmm cable conductors
• HV Cable Lugs & Splices (11kV-33kV) – up to 630sqmm cable conductors
• “C” Sleeve Copper Connectors – up to 240sqmm cable conductors
• Insulated Terminals – up to 300sqmm cable conductors

➡ For Cembre electrical connections, see Cable Crimps, Lugs & Connectors

CRIMPING DIE SET GUIDE FOR CEMBRE ECW-H3D

Cembre provides a matched crimping system to ensure secure LV MV HV electrical connections (lugs and splices) manufactured from copper or aluminium in accordance with CE Marking and international standards – includes a full range of nest, indentor and die sets compatible with their hydraulic and battery crimping tools, all manufactured by Cembre.

Cembre Copper Tube Connectors & Cable Lugs

Crimping Tool Die Assembly For Cembre ECW-H3D

Dedicated Dies

• Select the appropriate die set for the connector to be crimped
• Extract the die retaining pin (09) from the presshead
• Insert the lower die (26b) and align the groove (30) in the die, with the guide pins (15) in the crimp tool head
• Insert the upper die (26a) into the tool head
• Insert the die retaining pin (09) in the tool head and through the upper die
• Ensure the spring loaded pin (10) is fully released

Semi-Circular Dies

• Select the appropriate die set for the connector to be crimped
• Extract the die retaining pin (09) from the presshead
• Insert the lower half of adapter Cembre AU230-130D (31b) and align the groove (30) in the adapter, with the guide pins (15) in the crimp tool head
• Insert the upper half of the adapter Cembre AU230-130D (31a) into the tool head
• Insert the die retaining pin (09) into the head and through the adapter
• Ensure the spring loaded pin (10) is fully released

Cembre ECW-H3D

For crimping application using Cembre ECW-H3D tools including heavy duty copper tube connectors, nylon insulated copper connectors, copper “C” connectors and high voltage lugs/connectors please contact T&D.

Contact T&D to discuss crimping cables at MV-HV, including 11kV-33kV, to ensure correct Cembre tool, lug/splice and die set selection – visit battery crimping tools for repetitive crimping of cables without strain injury or worker fatigue.

Full range of battery cable cutting tools also available.
