Overhead Line Construction Winch | CBS C-780 3 Tonne
Overhead Line Construction Winch
CBS C-780 3 Tonne WinchÂ

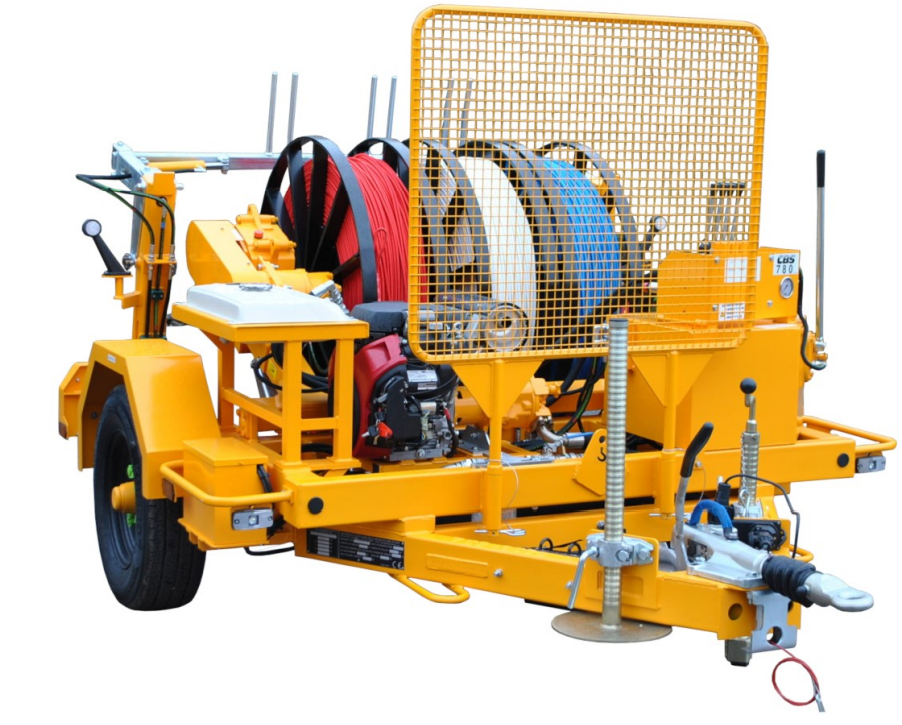

The Construction winch is designed by CBS Products for overhead lines to provide reliable and safe lifting operations for 11/33kV work and maintenance requirements. Winching is controlled via a proportional hydraulic valve giving the operator precise control over the load when needed or high speed if necessary.
Designed to tow behind even small vehicles, the Overhead Line Construction Winch has operational stability provided by ground anchors on the towbar or by employing the towing vehicle as an anchor.
Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.
Winch Design key Features

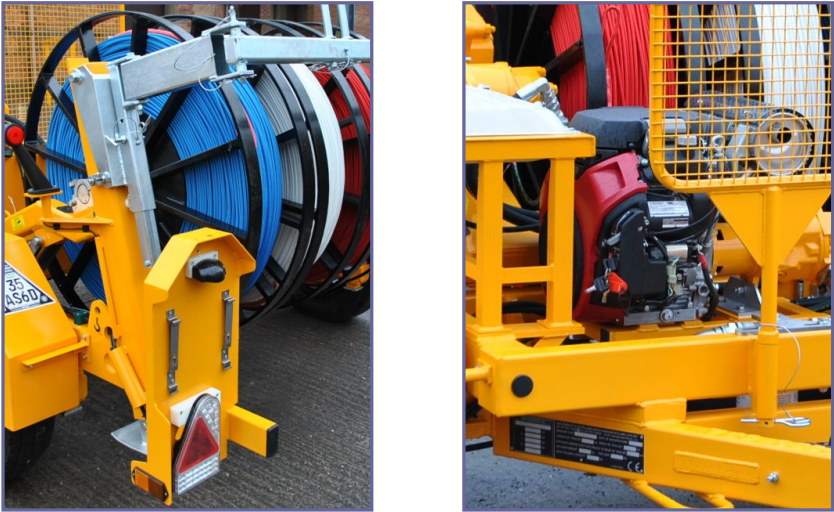

- Powerful winch:Â mounted on a robust steel chassis with a single axle trailer facility for site manoeuvrability. The engine – fitted with electric start – powers the drive spindle of the drum via a gearbox and hydraulic circuit designed to achieve smooth control of the winding operation.
- Powered hydraulic drum lifting device: Ensuring safe drum handling due to the hydraulics and jacks. The winch is mounted on a robust steel chassis with a single axle trailer facility for site manoeuvrability.
➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.
Winch Specification
The engine fitted with electric start, powers the drive spindle of the drum via a gearbox and hydraulic circuit, which is designed to achieve smooth, variable control of the winding operation in either direction.
| Capacity | 3 Tonne @ 250mm diameter |
| Engine | Diesel or Petrol |
| Rope Speed | 0-100m/min (Adjustable) |
| Rope Drums | See Optional Extras |
| Length | 3100mm |
| Width | 2300mm |
| Height | 1400mm (Without drums) |
| Weight | 1100kg (Net) |
Optional extras
The powered hydraulic drum lifting device, together with hydraulic stabilising jacks provides safe drum handling. Hydraulic layering device fitted as standard.
| C-780-05 | Triple drum fitted with 1500m of 8mm Paraline Rope – 3 off required |
| C-1002-10-F | Weatherproof cover |
| C-780-21 | Torque arm assembly with locking collar for use with wooden drums |
| C-780-07 | Triple split drum for old conductors- 3 off required |
| C-780-06-02 | Single steel split drum for old conductors |
