SICON | Stepless Shearbolt Cable Connectors & Lugs – shear-off bolted connectors are safe, reliable and a cost-efficient cable connector installed consistently with reduced tooling and scope for Jointer workmanship error associated with crimping technology. The Sicon product range provides optimal contact force for copper or aluminium, solid or stranded, round or sector-shaped from 600V to 72kV – with a wide range-take for the joint or termination of cross section cables from 6sqmm-1200sqmm and voltage levels including 600V, 3.3kV, 11kV, 25kV, 33kV and 66kV/72kV.

SICON bolted connectors are installed directly onto the ends of the LV MV HV conductor with a standard Allen key – the bolt shears off smoothly when tightened by the Jointer without sharp protrusions preventing damage to the joint, termination or connector.

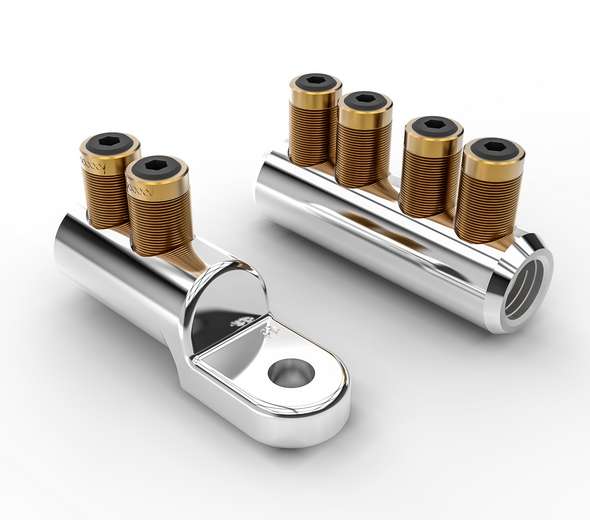

Connectors with Stepless Shear-Off Bolts

The Pfisterer Sicon range of mechanical shearbolt cable connectors with stepless shear-off bolts provide electrical connections for the jointing and termination of cables up to LV MV HV cables up to 66kV/72kV.

For years now, bolted clamps, connectors and cable lugs have been gaining ground as bolted connectors offer technical and practical advantages that compression technology cannot match.

Sicon bolted connectors from Pfisterer are installed directly onto the conductors with a standard Allen-key aiding simple and smooth installation without resort to crimping tools and associated compression die sets. The innovative design of the stepless shearbolt allows installation regardless of the conductor type. Due to the innovative connector design of the bolt, optimal contact force secures a reliable electrical connection for Low, Medium & High Voltage electrical power cables and systems.

All Sicon connectors can be easily installed, even under tight spots. The bolt shears off smoothly when it is tightened. The remains stay in the tool and can be safely disposed of. The bolt always shears off at the top edge of the connector body. This way, there are no sharp protrusions. All edges of the connector body are rounded.

Every Sicon connector covers a wide cross-section range. This way, you always have the right connectors with on site. And even if during repair work it is unclear type of conductors must be connected and in which condition are they in, Sicon is the right choice. Sicon connectors are electrically/mechanically type-tested in accordance with IEC 61238-1 Class.

Sicon shear bolt connectors can be manufactured to meet the customers unique specification. Please contact T&D for further information.

Extensive Range Of Sicon Connectors | Low Medium High Voltage Electrical Cable Connections

Pfisterer Sicon – Cable Lugs & Cable Connectors

Application Range

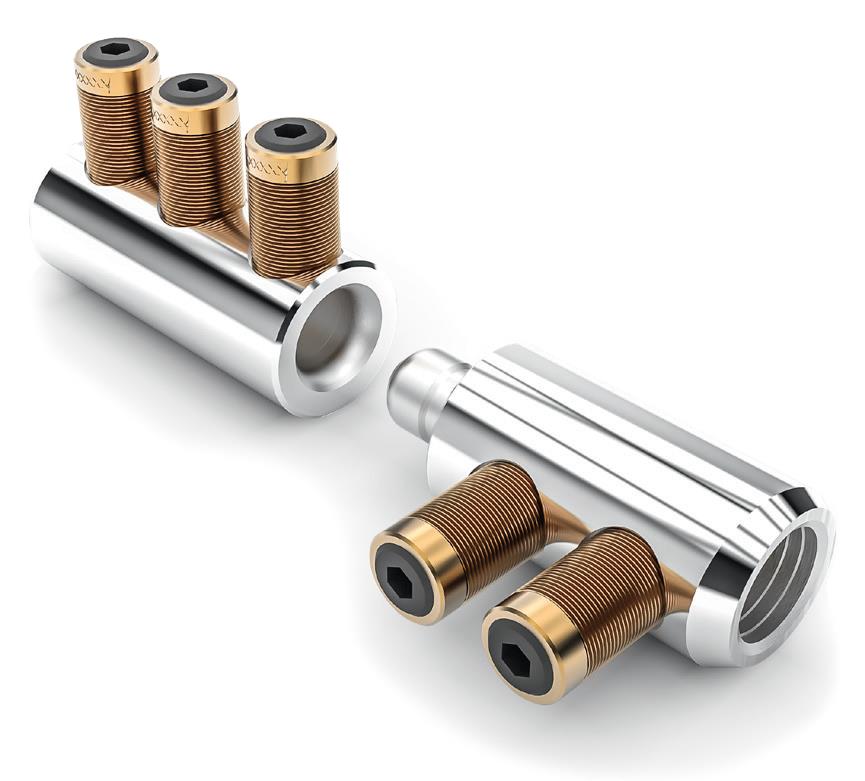

Split Connector	This split connector can be used in installations where is difficult to install the connector on the conductor. The connector comes apart in 2 pieces and allows easy installation. The 2 pieces are then bolted together in the middle to form one connector again. Typical uses are PILC to PILC 3/C joints and any tight spot where it is difficult to bend the cable.

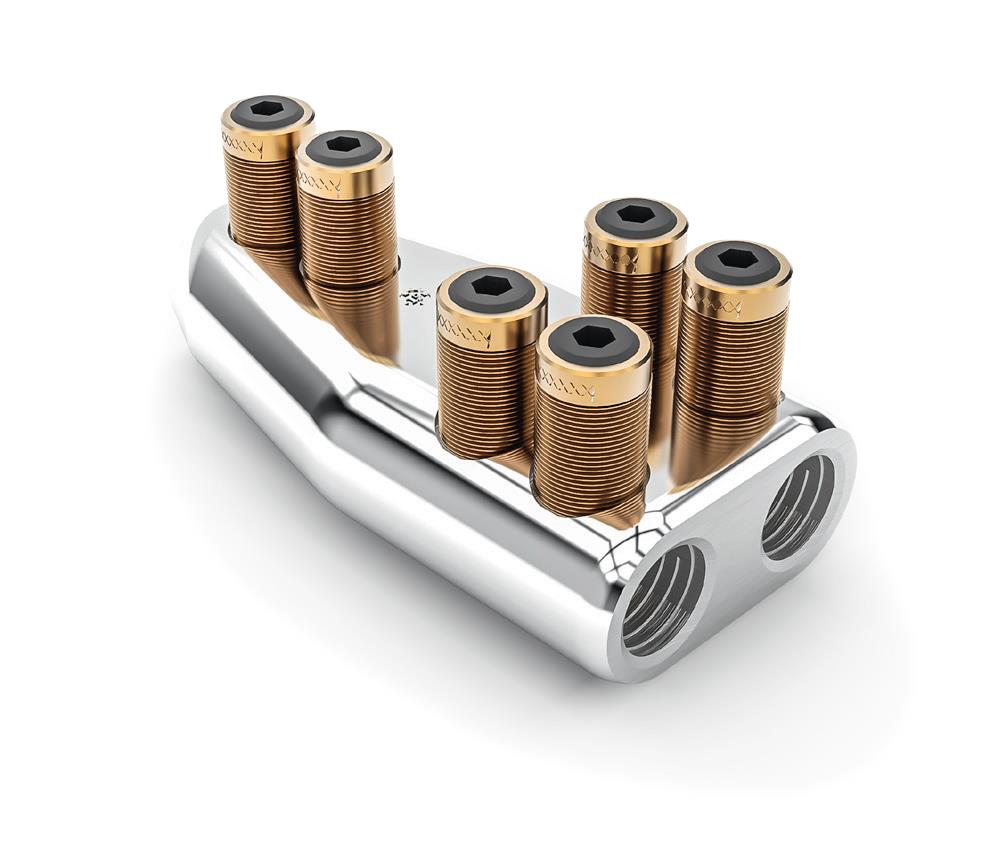

Branch Connector	The branch connector can be used to join 3 different conductors regardless of size or material. These are typically used when joining two main lines and then running a tap or a branch. These can be used in heat shrink, cold shrink and hand-taped joints.

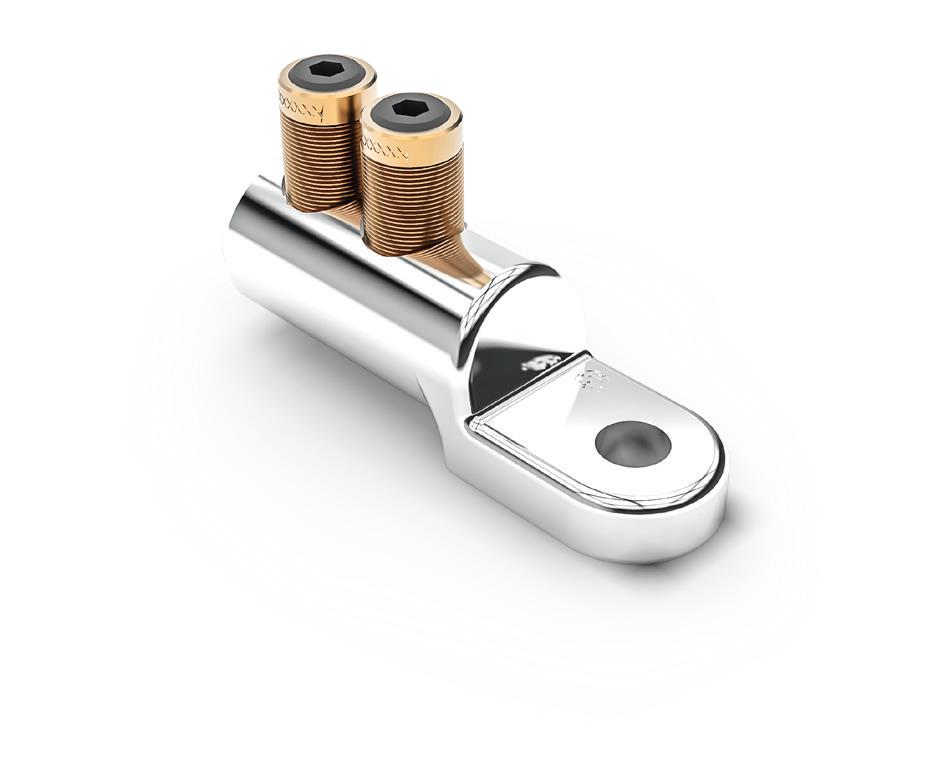

Cable Lug	Pfisterer SICON bolted cable lugs enable you to connect the cable ends of electrical devices with a bolt or a stud. Standard cable lugs are used in cable terminations for indoor and outdoor applications and can be used in both heat shrink and cold shrink accessories.

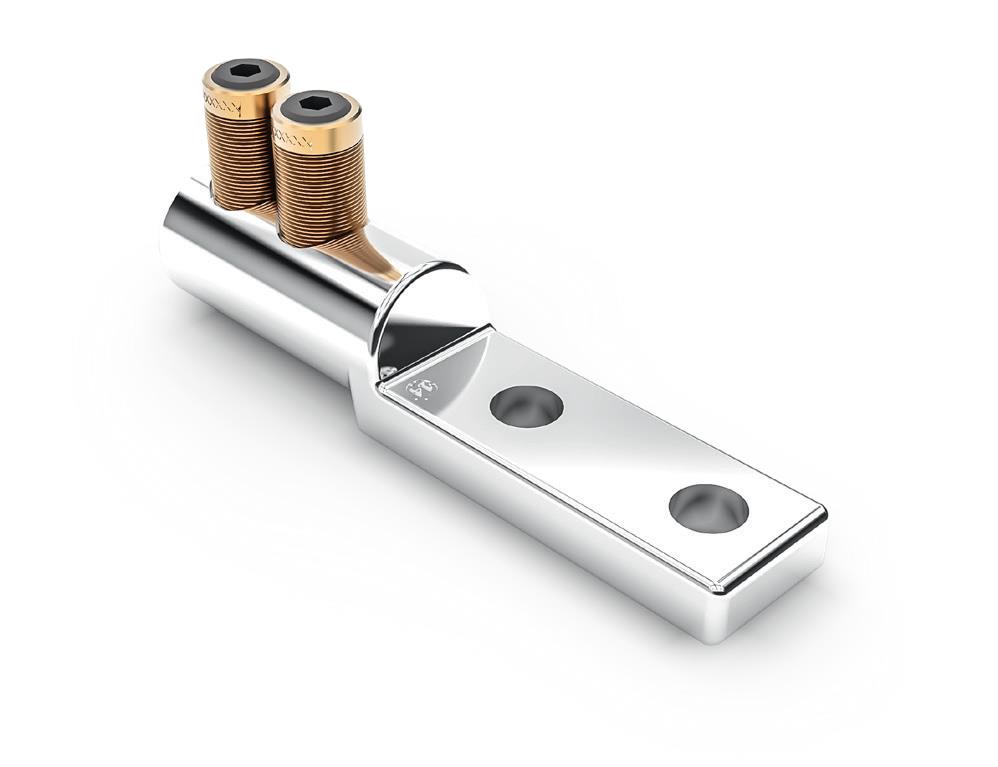

Cable Lug	Centered cable lugs are mainly used in separable connectors. Cable lugs with 2-hole palms are also available.

Pfisterer Sicon Cable Lugs & Cable Connectors Technical Diagram

Covering Caps

Cover up completely the entire bore countersinks
Restore a full cylindrical shape
No sharp edges – which eliminates possible damages of the joint body

Stepless Shear-Off Bolt

No predetermined shear-off points
Always full load capacity of the thread
No time consuming rework necessary
The optimal shear off torque will always be reached automatically

Centering Rings

”One-click” fast installation
Centered position of small conductors
Minimizes voltage stress at transition from connector body to cable insulation

Short Connector Length

Easier centering in the middle of the stress control area
Fits into shorter cable joints, bigger application range

Oil Stop

Ensures proper conductor positioning
Eliminates oil leakage when connecting oil impregnated conductors
Accommodates transition applications from polymeric to oil impregnated conductors

Pfisterer Sicon Cable Lugs & Cable Connectors Technical Diagram

Friction Disc

Independent contact force of aluminum and copper conductors
Higher contact force
No damage of single strands
Reliable and good electrical contact

Transverse Grooves

Breaks through oxidation layers
Higher tensile strength
Higher cross-line conductivity of stranded conductors, increased current flow from inner to outer strands
Ensures low contact resistance and long term reliability

Installation with Standard Tools

Ratched and appropriate hexagonal socket
Impact wrench
Easy installation

Universal Application

Copper & Aluminium Conductors

Covers a wide cross section range
All conductor designs
For aluminum and copper conductors
Reduces inventory and prevents accidental use of wrong connector

Pfisterer Sicon

Product Selection Guide

Connector cross-section (sqmm)	L (mm)	OD (mm)	l (mm)	H (mm)	x (mm)	z (mm)	Hex Size	Part No (AL + Cu)	Image
Bolted Connector (MC-OS)
10 – 95	59	24					5	332 601 012
16 – 150	89	28					5	332 593 012
50 – 240	112	33					6	332 592 012
50 – 240 Sector	112	35					6	332 614 012
50 – 300	124	35					6	332 632 012
95 – 300	132	38					8	332 602 012
185 – 400	171	42					8	332 617 012
240 – 500	198	52					8	332 640 012
300 – 630	208	52					8	332 603 012
Standard Cable Lug
10 – 95	70	24	30	9	13	56	5	332 604 012
10 – 95	70	24	30	9	8.5	56	5	332 604 022
25 – 150	91	28	32	10	13	75	5	332 599 012
50 – 240	112	33	40	14	13	93.5	6	332 595 012
50 – 240	112	33	40	14	16.5	93.5	6	333 595 022
95 – 300	122	38	40	14	13	101	8	332 605 012
95 – 300	122	38	40	14	16.5	101	8	332 605 022
185 – 400	143.5	42	42	14	13	119.5	8	332 625 012
185 – 400	143.5	42	42	14	16.5	119.5	8	332 625 022
300 – 630	172	52	50	17	13	142	8	332 606 022
300 – 630	172	52	50	17	16.5	142	8	332 606 012
Cable Lug (MCL) – Two Mounting Holes with Mounting Hole Distance 44.5 mm [y]
16 – 150	149	28	85	10	14.2	86.6	5	332 599 052
50 – 240	160.5	33	85	14	14.2	98.1	6	332 595 052
95 – 300	171.5	38	85	14	14.2	109.1	8	332 605 052
185 – 400	191	42	85	14	14.2	127.6	8	332 625 052
240 – 500	212.5	52	85	17	14.2	148.1	8	332 920 052
300 – 630	212.5	52	85	17	14.2	148.1	8	332 606 052
Branch Connector (BMC)
50 – 240	140	30/68		33			6	332 447 012
Split Connector (SPLIT-MC)
50 – 300	158	35					6	332 974 012
Repair Connector (RMC-OS)
185-400	446	42					8	332 617 062
