Tower Erection Winch | CBS W1-TEW25H-01

Tower Erection Winch

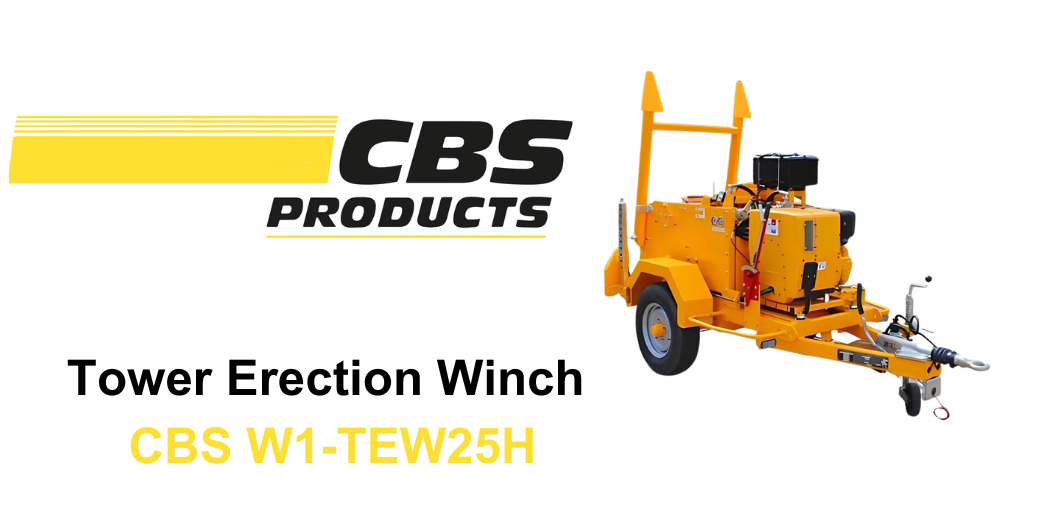

CBS W1-TEW25H-01

The Tower Erection winch is designed by CBS Products for overhead lines to provide reliable and safe lifting operations for tower and mast erection for the electricity or telecommunications industries. Winching is controlled via a proportional hydraulic valve giving the operator precise control over the load when needed or high speed if necessary.

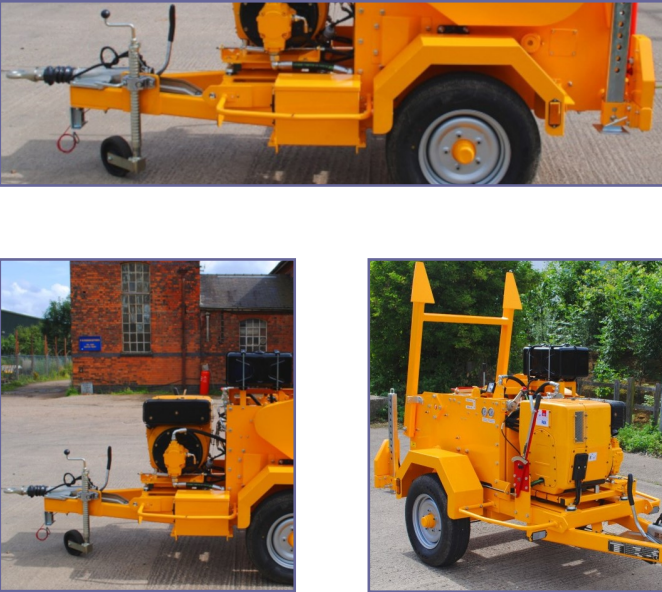

Designed to tow behind even small vehicles, the Tower Erection winch is lightweight and can be simply positioned by one man. Operational stability is provided by ground anchors on the towbar or by employing the towing vehicle as an anchor.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.

The TEW25H-01 winch has been designed to comply with all the relevant safety requirements for lifting loads. Two fully automatic, fail safe braking systems are incorporated into the unit.

The first is situated directly in the transmission line and functions every time the winch controls are operated.The second is mounted in direct contact with the rope drum and is controlled by a sensing system acting on the main drive chain and the hydraulic oil pressure. In the unlikely event that the chain should fail, or all hydraulic pressure is lost, then this second brake would automatically apply and hold the load.

➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.

W1-TEW50H-01 tOWER ERECTION Winch Key Features

• Powerful Engine: Equipped with an Air Cooled Diesel engine, the winch ensures robust performance for demanding overhead line tasks

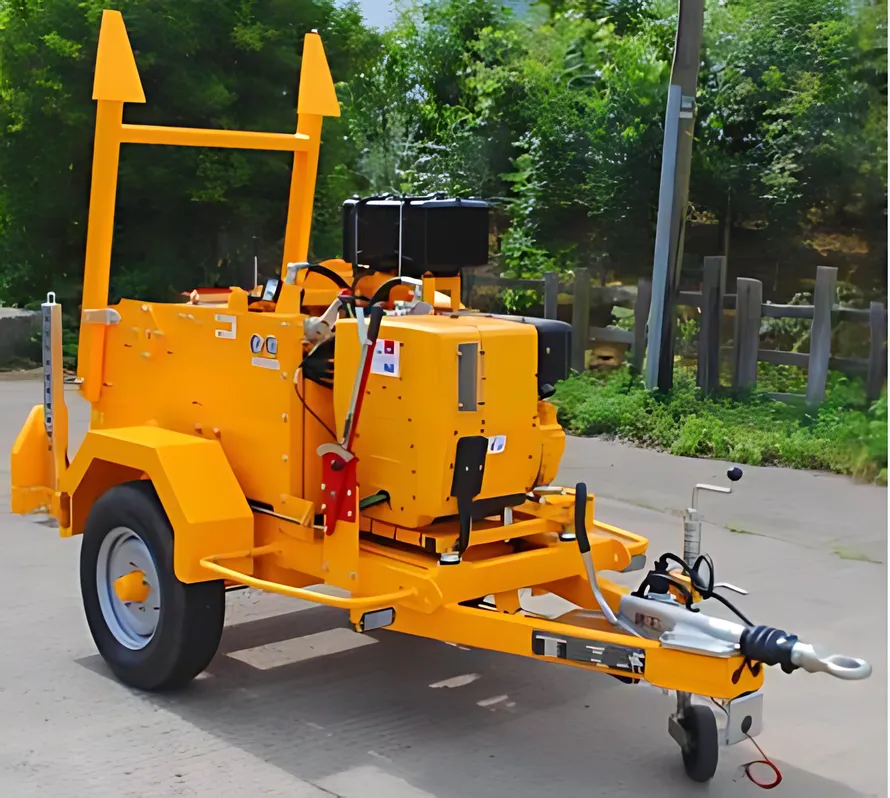

• Lightweight and Portable: Designed for easy towing behind even smaller vehicles, the winch is lightweight, enabling a single operator to position it without difficulty
• Stability: Operational stability is ensured through the use of ground anchors attached to the towbar or by securing the winch with the towing vehicle itself, thus providing a secure base during operation

Winch Specification

Overhead Line Winch

Applications

The CBS W1-TEW25H-01 winch is particularly useful for overhead line engineers working on power lines and communication cables. Its ability to handle different conductor materials and configurations makes it suitable for a range of projects in the electrical utilities and telecommunications sectors.

Overall, the CBS W1-TEW25H-01 winch is an essential tool for professionals in the field, offering a blend of power, precision, and portability.
