Electric Crimp Lugs for Copper & Aluminium Cables
Compact & Vigicompact Crimp Lugs
Thorne & Derrick International, based in the UK, distribute the most extensive range of cable lugs in both crimp/compression and shearbolt types from leading manufacturers including Cembre and Pfisterer Sicon.
Cable lugs are available to connect, terminate and joint copper and aluminium conductor cables into control panels, junction boxes, feeder pillars, switchgear and transformers distributing electrical power at LV (Low Voltage), MV (Medium Voltage) and HV (High Voltage).
This article covers the Schneider Electric range of cable crimp lugs for copper and aluminium conductors with following cross section area: 120sqmm, 150sqmm, 185sqmm.

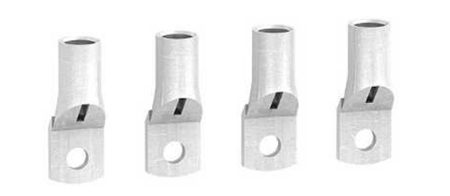

Crimp Lugs for Copper Cable
Schneider Electric Crimp Lugs
For Copper Cable Specifications
âž¡ see further information about copper cable lugs.
| Product Type | Cable Size | No. Of Lugs In Set | Poles Description | Rated Current | Crimp Lug Image |
| Schneider Electric LV429252 Crimp Lug | 120 mm² | 3 | 3P | 250A |  |

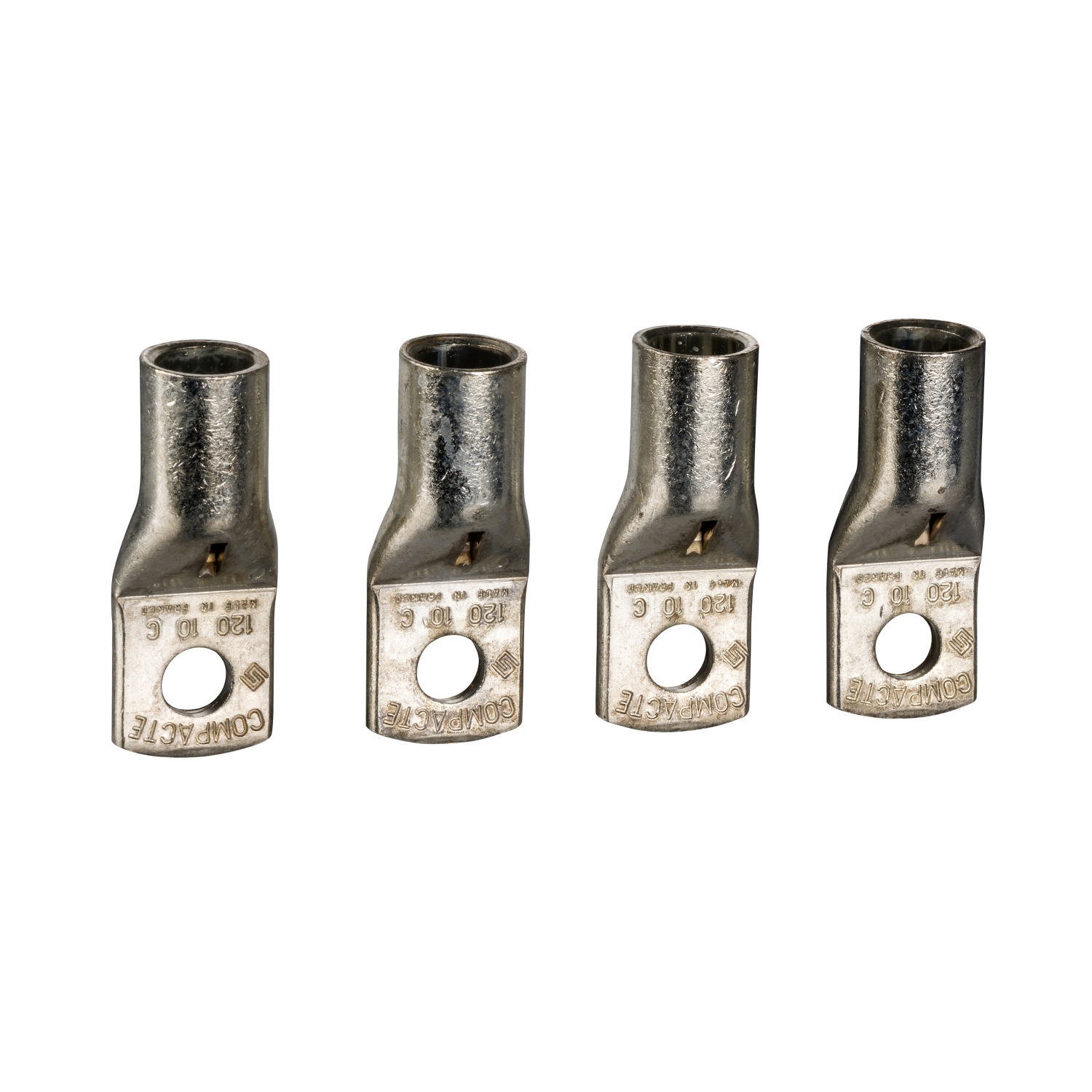

| Schneider Electric LV429256 Crimp Lug | 120 mm² | 4 | 4P | 250A |  |
| Schneider Electric LV429253 Crimp Lug | 150 mm² | 3 | 3P | 250A |  |
| Schneider Electric LV429257 Crimp Lug | 150 mm² | 4 | 4P | 250A |  |

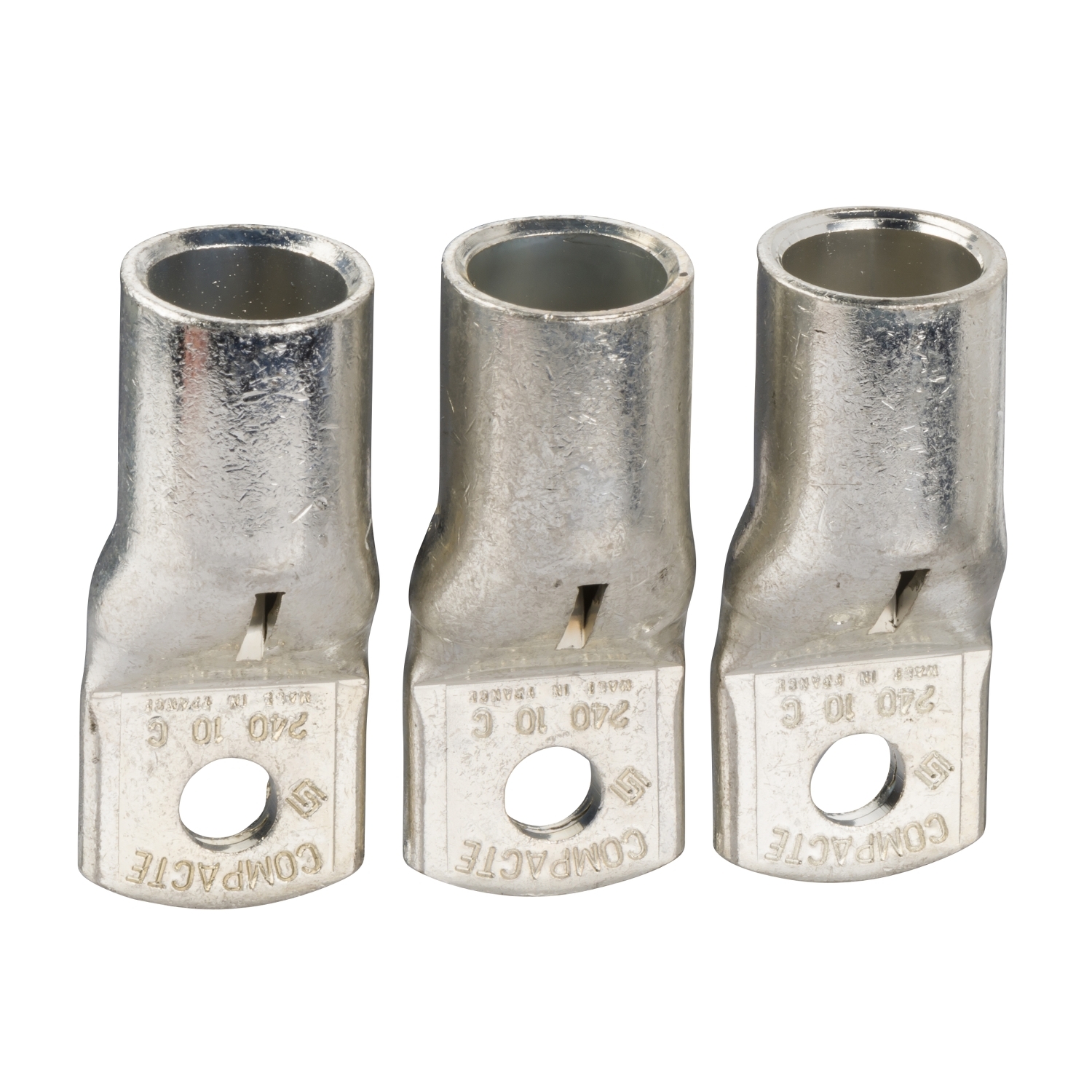

| Schneider Electric LV429254 Crimp Lug | 185 mm² | 3 | 3P | 250A |  |

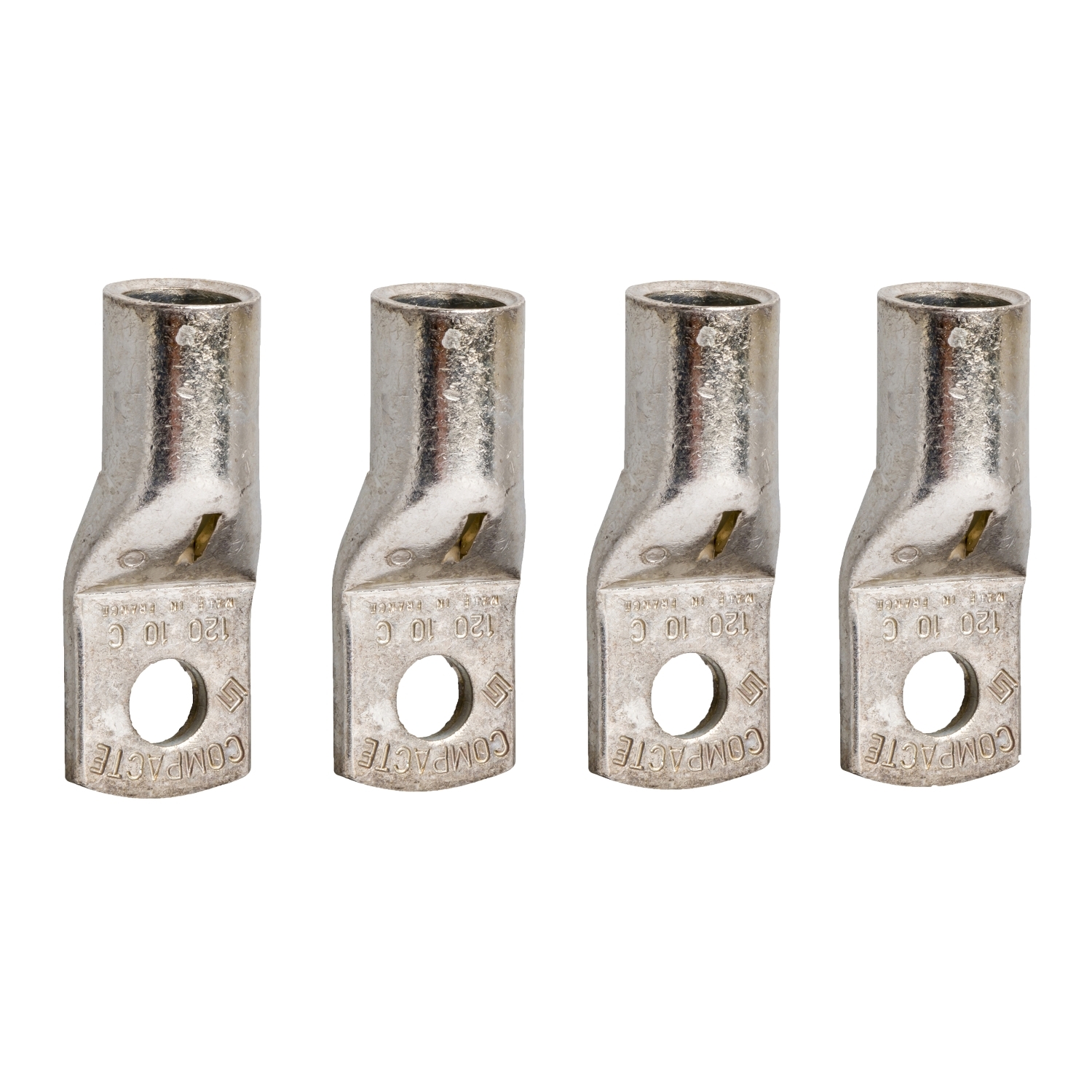

| Schneider Electric LV429258 Crimp Lug | 185 mm² | 4 | 4P | 250A |  |

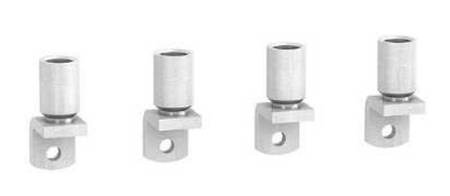

Crimp Lugs for Aluminium cable
Schneider Electric Crimp Lugs
For Aluminium Cable Specifications
âž¡ see further information about aluminium cable lugs.
| Product Type | Cable Size | No. Of Lugs In Set | Poles Description | Rated Current | Crimp Lug Image |

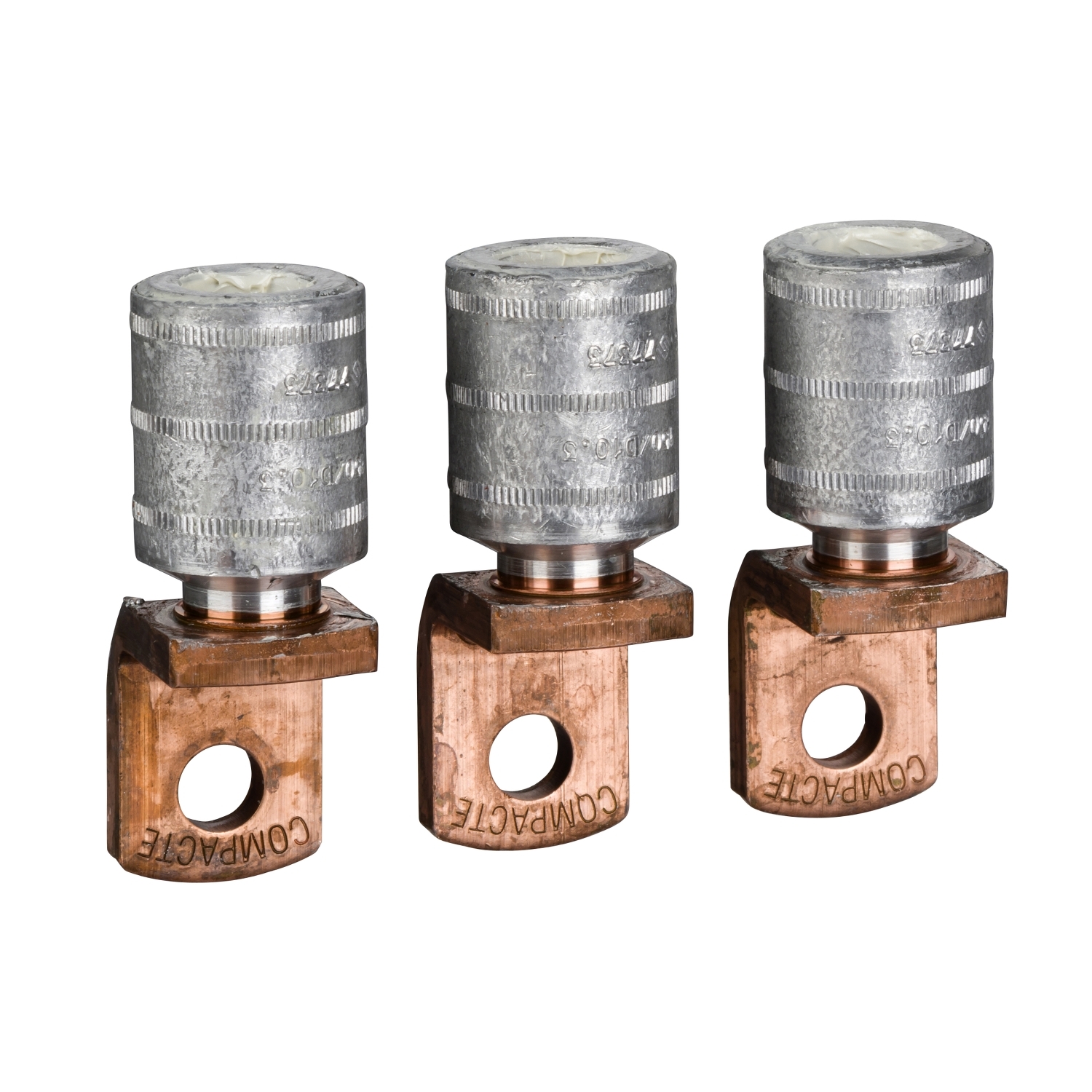

| Schneider Electric LV429504 Crimp Lug | 150mm² | 3 | 3P | 250A |  |
| Schneider Electric LV429505 Crimp Lug | 150mm² | 4 | 4P | 250A |  |

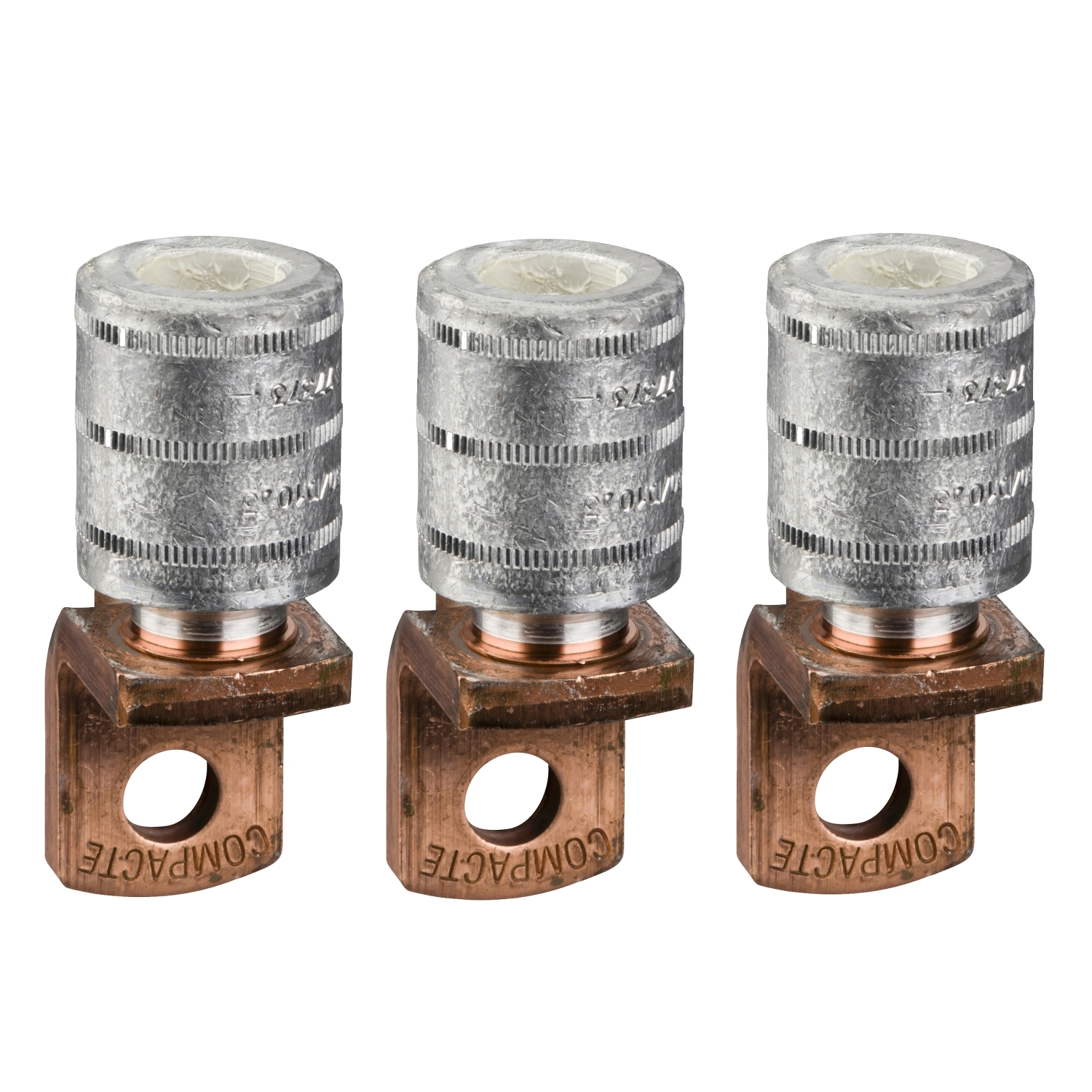

| Schneider Electric LV429506 Crimp Lug | 185mm² | 3 | 3P | 250A |  |

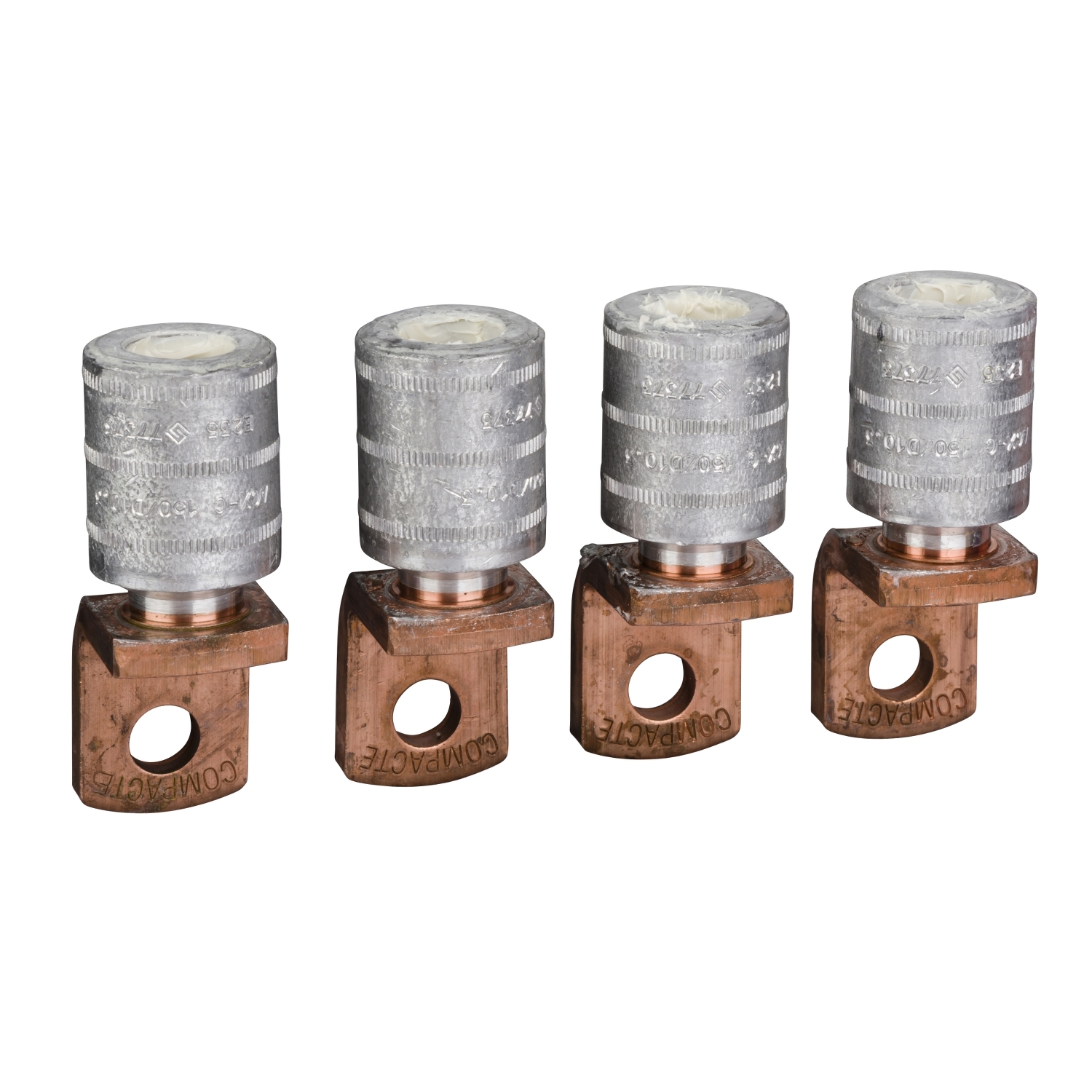

| Schneider Electric LV429507 Crimp Lug | 185mm² | 4 | 4P | 250A |  |
Review other Blogs in this series of articles about Cable Lugs, Crimping Cables & Tools:
- Copper Cable Lugs For Special Applications
- Indent Crimping Of Cables – Benefits & Limitations
- Cable Lugs & Crimps – Hexagonal v Indent Methods of Crimping
- Cable Lugs & Crimping Using The Hexagonal Crimp Method
- DIN Standard – Crimping & Compressing Aluminium Cable Lugs & Connectors
- Copper & Aluminium – Crimping CU-AL Cables
- Electrically Driven Crimping Tools For High Volume Applications
LV Cable Joints (Low Voltage Cables)
Thorne & Derrick stock and distribute LV Joints in Cold Shrink, Heat Shrink or Resin Cast technologies – multicore and multi-pair cable joints are available for immediate backfill and energisation of Low Voltage power, control and instrumentation cables 600V/1000V 3.3kV.
Complete range of LV Cable Accessories ➡
Cable Breakouts | Cable Caps | Cable Lugs | Cable Cleats | Cable Trough | Cable Duct | Feeder Pillars | for 11kV/33kV/66kV networks see MV HV Joints & Terminations
Pfisterer | Nexans Euromold | Prysmian | Cable Joints & Terminations MV HV
Cold Shrink by 3M | Joints | Abandonment | Terminations | Low Voltage LV Cables
