11kV Switchgear Cable Terminations, Jointing & Spiking In High Voltage Substations
Published 04 Dec 2017

Jointing, Terminating & Installation of 11kV Substation Cables
Guest Post from Mick Beeby - Technical & Operations Manager at UK Power Solutions Ltd
Uploaded by Chris Dodds - Thorne & Derrick Sales & Marketing Manager
“I spent a couple of days on site this week with one of our team of Operations Engineers, connecting 4 new ESP adopted 11kV high voltage substations on Phase 2B of the Ballymore Royal Wharf Development in London.
UKPS have provided the electrical infrastructure for Phase 1, 2A and now 2B to date.
This includes 1 x UKPN 11kV boundary substation with 2 RMUs, 1 x SSE 11kV boundary substation with 2 RMUs, 11 x ESP 11kV permanent distribution substations and 1 x ESP 11kV TBS installed and disconnected again, 1 x UKPN 11kV metered TBS to private high voltage transformer.
There are more ESP 11kV distribution substations to install in Q1 2018. This now takes us to 10 of a final 12 total on this ESP 11kV ring.
An IEC was received from SSE for the DNO/iDNO boundary end of the ESP 11kV circuit, which was made Dead, Isolated and Earthed before the 11kV cables were identified and cables spiked under a Sanction-for-Test. A Permit-to-Work was then issued for the 11kV cable jointing, followed by pressure testing under another Sanction-for-Test and final energisation and 11kV phase checks to bring 4 new 11kV high voltagew substations onto the system.”

1 of 4 new ESP 11kV high voltage substations connected on this visit, taking the total on this ESP 11kV ring to 4 substations, and 11 on the Ballymore Royal Wharf development so far.

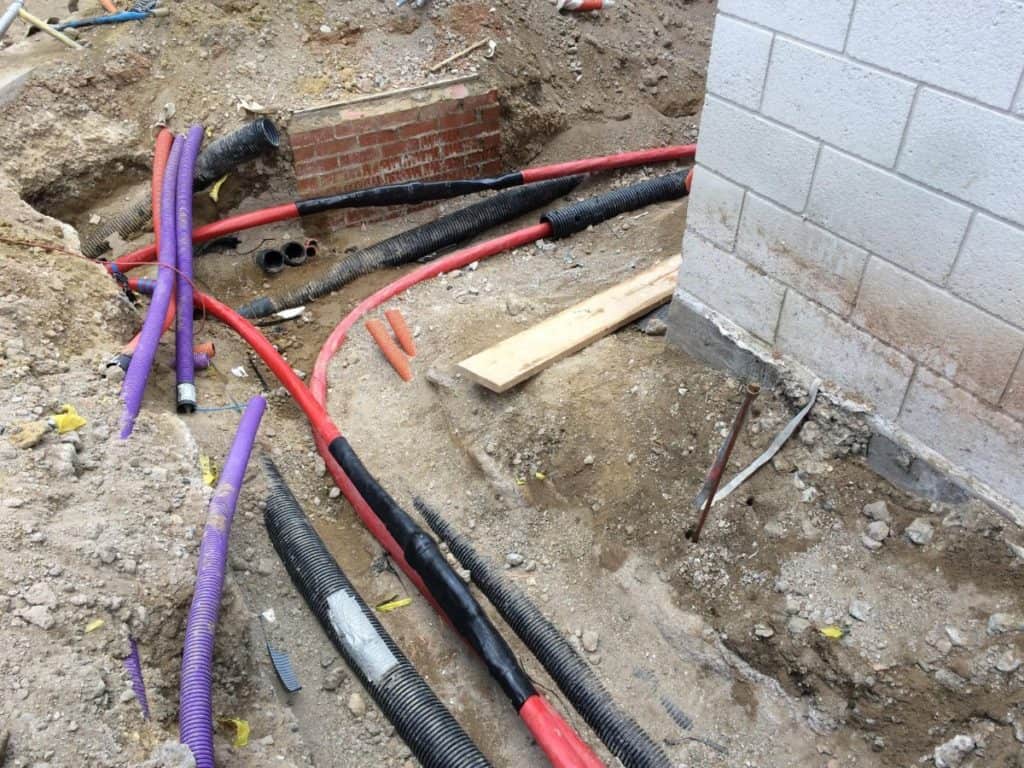

2 x 3c 11kV polymeric SSE specification straight cable joints of TE Connectivity MXSU series, to loop 4 high voltage substations into the existing ring of 4, making 8 total.

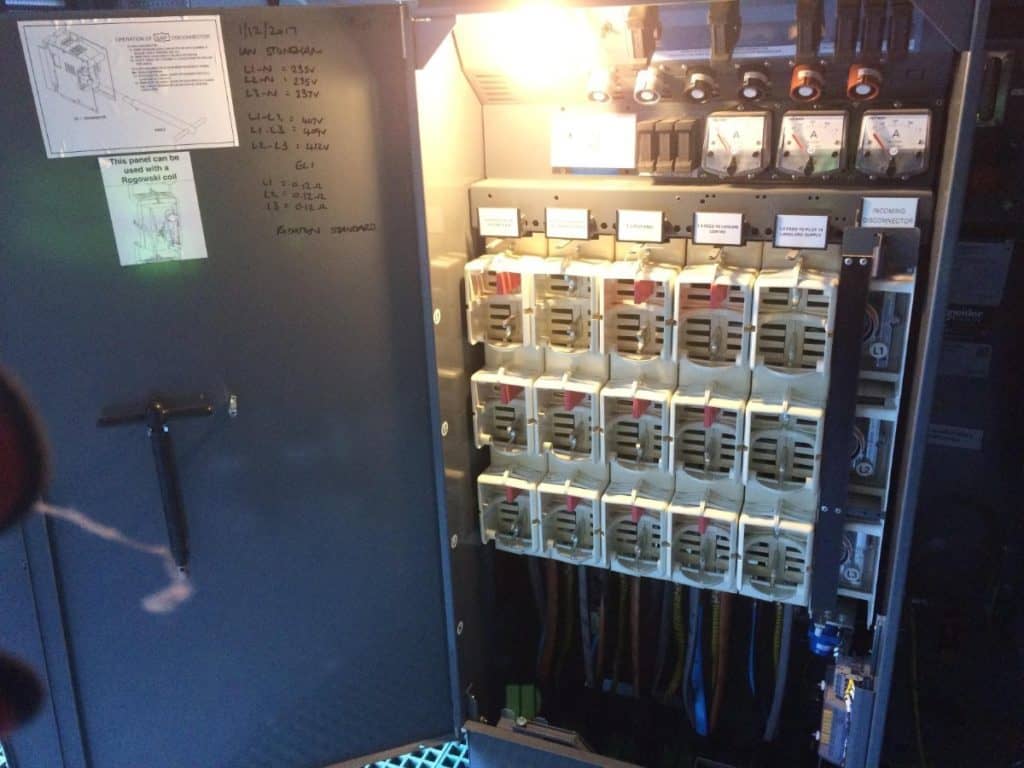

5 Way Transformer Mounted Cabinet post energisation testing. 5 outgoing LV circuits to the multi-occupancy buildings on Phase 2b of the Royal Wharf development.

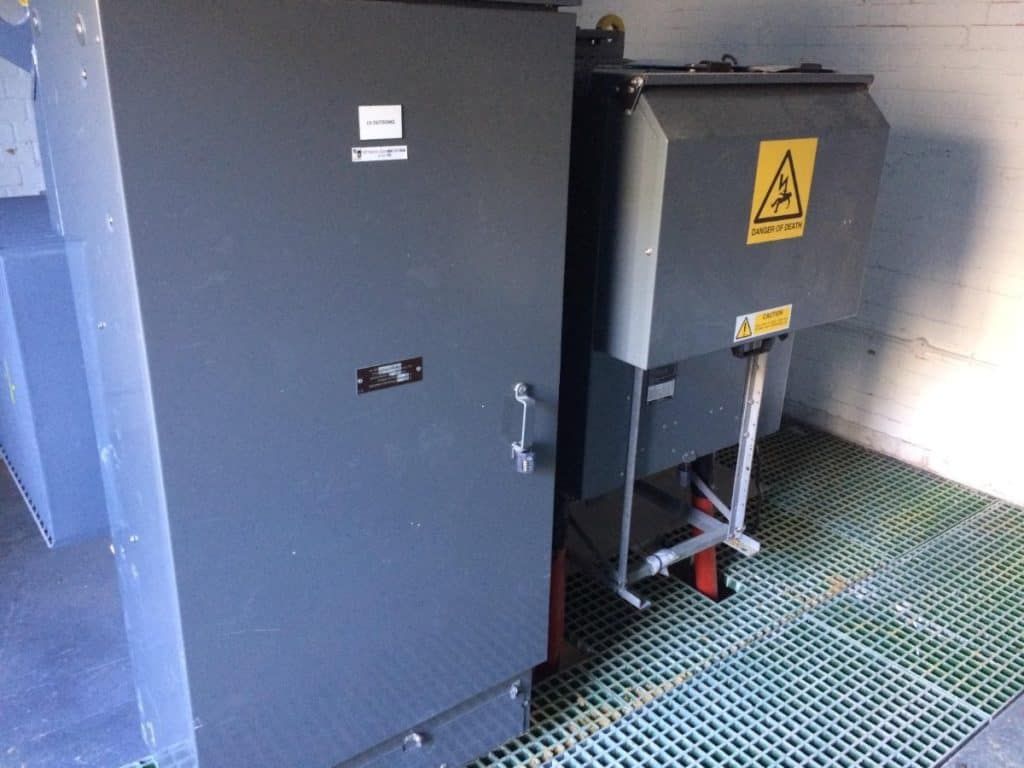

1 of the 4 new ESP adopted substation internally, comprising Schneider RN2C SF6 Ring Main Unit, Schneider 11000V/400V transformer and Schneider 5 Way Transformer Mounted Fuse Cabinet with incoming high voltage 3c 11kV XLPE polymeric cables.
About Mick Beeby
With over 25 years of experience in the UK Electricity Distribution sector, coming from an apprentice electrician, through Electrical Fitter, Project Manager and Senior Authorised Person roles. Familiar with many types of low voltage, medium voltage and high voltage switchgear, transformers and cables. In depth familiarity of Schneider Genie Evo 11kV switchgear, switchgear cable terminations including complete stripping, re-build and testing.
In depth theoretical and practical knowledge of MV-HV testing and commissioning, cable fault location and cable repair, including test equipment application and limitation.
Experience of all aspects of medium voltage distribution substation testing and commissioning; cable sheath testing, cable/switchgear IR testing, over voltage testing (DC/AC/VLF), primary and secondary injection testing, transformer testing, CT mag curves, CT polarity, soil resistivity and earth electrode systems testing.
Unlike the Distribution Network Operator, we can design & install your private High Voltage network downstream of your HV metering point, providing a more complete package of works to save you time & money. pic.twitter.com/7GtXGzSefH
— UKPS (@ukpowersolution) November 29, 2017

Schneider
Schneider Genie Evo Air Insulated
MV HV Switchgear 3.3kV 13.8kV
The Schneider GenieEvo concept is an evolution from the extremely successful Genie philosophy which offers increased levels of flexibility and greater choice for the distribution of medium/high voltage power – this is achieved by allowing separate selection of the MV-HV switchgear and protection and control modules. GenieEvo extends the concept of Genie by offering a gas free circuit breaker to the MV-HV product portfolio.
- Schneider GenieEvo comprises
Cast resin encapsulated MV medium voltage system
Demountable vacuum circuit breaker
Controlled air, resin encapsulated series disconnector
Flexible pre-engineered protection and control modules

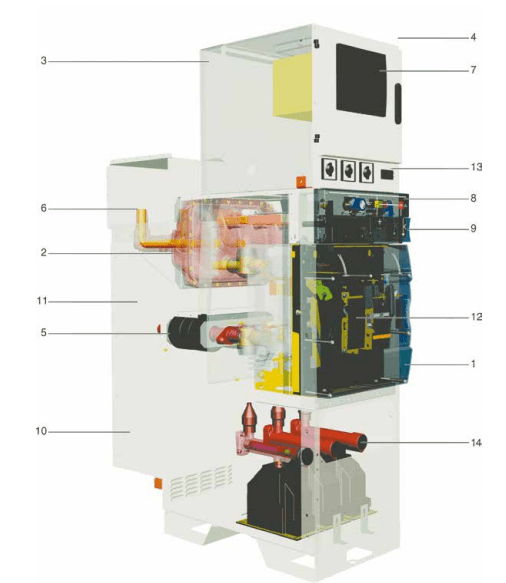

 1. Vacuum circuit breaker 2. Controlled air disconnector 3. Top entry pilot box 4. Internal arc protection 5. CT chamber 6. Cast resin insulated busbar system with optional earth shielding 7. Multi functional protection and control unit 8. Unit fascia with active operating mimic display 9. Front access cable and vacuum test facility 10. Rear entry MV medium voltage cable box 11. Internal arc vented via dedicated cable trunking for operator safety 12. Mechanical operations counter 13. Circuit potential indicator as standard 14. VT chamber
