Ripley US01-7000
adjustable CABLE Stripping tool
Cable Stripping Tools for Sheath/Jacket & Primary Insulation (XLPE) | Eliminate Open Blades
UtilityTool US01-7000 Adjustable Cable Stripping Tool manufactured by Ripley Tools is used for mid-span and end stripping on both primary and secondary utility cables – the cable jacket/sheath stripping tool is compatible with URD, PE, PVC, copper tape shield, LC shield and flat strap cable jackets and XLPE, PE and EPR insulation.
The Ripley US01-7000 is the industry’s most reliable and accurate adjustable tool for mid-span and end stripping of cable sheath jackets – eliminating the need for traditional cable stripping knives. The cable stripping tool has end and midspan stripping capability, along with a unique clamping design. Handles are also specially designed to be ergonomic to ease turning leverage and removability for use in tight locations.
The clamp-on style cable preparation tool with set depth ensures repeatable cable preparation and sheath removal without damage to screen/concentric wires on LV MV HV power cables.
➡ See the full range of Cable Jointing Tools distributed by Thorne & Derrick.
Cable Stripping Tool for Jackets & Sheaths of LV HV Cables | Ripley US01
The Jointing tool ensures safer and easier cable preparation with reduced Health & Safety risks and accidents including cuts and lacerations – the innovative tool supports “no open blade policies” for the stripping of outer cable jackets. The inserts reduce friction during rotation around the LV HV cable and an integral bar forces the cutting blade into optimal position. An ergonomic handle reduces worker fatigue for repetitive cable stripping in the field. The Ripley US01 blade can be angled and adjusted to suit the application and ensure comfortable cable jacket peeling without inflicting damage to cable.
Ripley US01-7000 adjustable cable stripper
Features
- Eliminates the need for traditional cable stripping knives, reducing the risk of cuts or lacerations.
- Heavy-duty tool easily removes jacket & various types of insulation materials.
- Easily adjusts for 0.5″ to 2.5″ (12.7 mm to 63.5 mm) cable diameters.
- Patent-pending, self-aligning design maintains optimum blade position to produce precise cuts for reliable splices & unions.
- Well-balanced tool has low friction parts and ergonomic handles to reduce effort & potential strain from repetitive stripping functions.

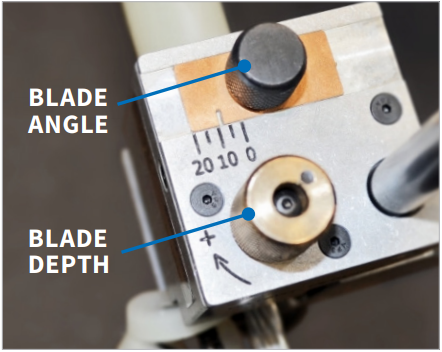

- Blade depth & angle are adjustable for greatest range of applications.

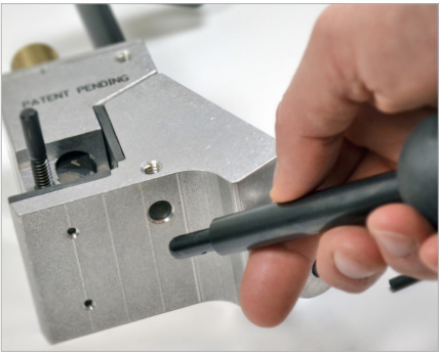

- Detachable, ergonomic handles for use in tight spaces by the cable jointer.
- Optional blade depth gauge provides positive depth control while making blind cuts during mid-span applications.
| Ripley Part Number |
LV HV Cable Type |
Cable Size ∅ |
Compatible Materials |
|
| Cable Sheath Jacket | Cable Insulation | |||
| US01-7000 | Primary & Secondary(600V to 35kV) | 12.7 to 63.5 mm
(0.5′′ to 2.5′′) |
URD PE PVC Copper Tape Shield LC Shield Flat Strap |
XLPE
PE EPR |
Ripley US01-7000 Ordering Information
| Model | Order Code | GTIN | Item Type | Handles | Replacement Blade Order Code |
| US01 Standard | US01-7000 | 856848006885 | Tool with handles | 1 rotating handle 1 ball handle |
US01-7501 |
| US01 w/ Ball Handles | US01-7001 | Tool with handles | 2 ball handles | US01-7501 | |
| US01 w/ Depth Gauge | US01-7002 | Tool with handles | 1 rotating handle 1 ball handle |
US01-7501 | |
| US01 EPR Optimized | US01-7005 | Tool with handles | 1 rotating handle 1 ball handle |
US01-7505 | |
| Rotating Handle Assembly | US01-7502 | Handle assembly only | 1 rotating handle | N/A | |
| Ball Handle Assembly | US01-7503 | Handle assembly only | 1 ball handle | N/A | |
| Blade Depth Gauge Kit | US01-7504 | Add-ons | N/A | N/A |
| Stripping Functions | ||
| Jacket Removal | Insulation Removal | Overhead Insulation Removable (Midspan Stripping) |
| Cable Compatibility: Primary Distribution Overhead, Primary Distribution Underground, Secondary Distribution, Tree Wire, Spacer Cables. | ||
adjustable CABLE STRIPPing TOOL
Installation Guide
 |
 |
 |
 |

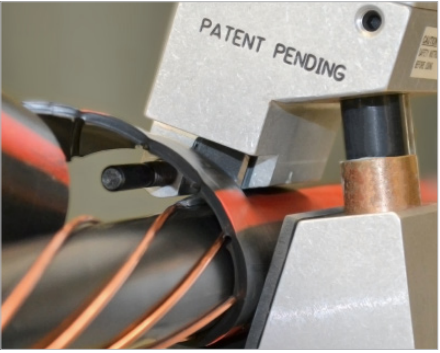

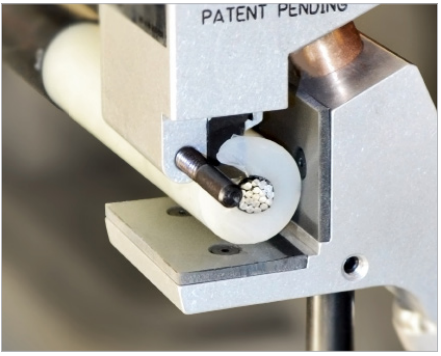

| Easily adjusts to support cable with diameters from 0.5″ to 2.5″. | Blade depth & angle are adjustable for greatest range of applications. | Recessed blade increases safety & is easily replaced. | Detachable, ergonomic handles for use in tight spaces. |
With a unique design and Belleville springs, the US01-7000 Cable Stripping Tool allows for secure clamping. The US01 also features nylatron bearing surfaces for smooth turning and removable handles.
| Min. Cable Outer Diameter | Max. Cable Outer Diameter | Min. Voltage | Max. Voltage |
| 0.5″ (12.7 mm) | 2.5″ (63.5 mm) | 600 V | 35 kV |
Cable Access – mid-span, end-span
Blade Adjustability – angle, depth
Cable Tooling | Accessories Available
Blade Depth Gauge: US01-7504
This blade depth gauge is available as an accessory for the US01-7000 stripping tool. It provides positive blade depth control and can be used for all cable sheath stripping functions. It is particularly useful when mid-span stripping while making a blind cut.

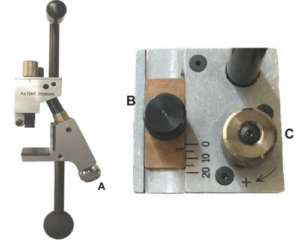

Ripley Us01-7000 Operating Instructions
- Adjustable For Different Cable Diameters
- Rotate thumb knob (A) to draw the jaws together around the cable diameter.
- Blade Pitch Adjustment
- Loosen the Blade Pitch lock screw
(B) 1/4 turn, slide to the desired blade pitch angle, and re-tighten.
- Loosen the Blade Pitch lock screw
- Blade Depth Adjustment
- Rotate the Blade Depth screw (C) for the desired depth setting.
For full operating instructions, including end stripping and mid-span stripping, please refer to the attached Blade Depth Gauge Instruction Sheet, and Cable Stripper Instructions sheet.
