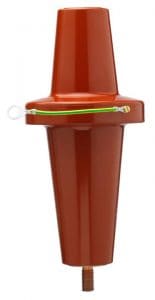

66kV Bushings Nexans Euromold R900AR Equipment Bushing

Euromold R900AR Equipment Bushing 66kV

Euromold R900AR is a 66kV bushing specified to terminate and connect high voltage cables.

Euromold R900AR bushings with tee connectors (R909TB), coupling connectors (R909PB) or plug-in type epoxy bushings – all suitable for use with Interface F type bushings on SF6 gas-insulated switchgear and 66kV electrical equipment.

66kV connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type F bushing interfaces.

  • Manufacturer – Nexans Euromol
  • MV HV Equipment Bushing Connector – Interface F 66kV Cable Connectors
  • Maximum Continuous Current – 630A (Amps)
  • Voltage Classes – 66kV 72.5kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Interface Type – F2
  • Applications – 66kV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD R900AR Specification

Euromold equipment
bushing
type
Interface Type Voltage
Um
(kV)
Current Ir
(A)
R900AR-6/J F2 72.5 630
R900AR-8/J F2 72.5 630

To order the equipment bushing, kit with DIN style fixing flange, simply specify KBCDS-400.

Euromold R900AR Equipment Bushing 66kV - Design

Euromold R900AR Equipment Bushing 66kV – Design

EUROMOLD R900AR FIXINGS FOR BUSHINGS

Euromold R900AR Fixing For Equipment Bushings

Euromold R900AR Fixing For Equipment Bushings
