66kV Coupling Connector Nexans Euromold R909PB/G – Interface F

Euromold R909PB/G Coupling Connector 66kV

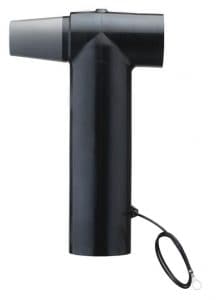

Euromold R909PB/G is a 66kV screened separable coupling connector (bolted type) for dual cable arrangement specified to terminate and connect high voltage cables.

The Euromold R909PB/G coupling connector with 1250A/1800A current rating is designed for Interface F and covers voltages up to 72.5kV with a maximum conductor size of 1200sqmm.

Euromold 909PB plug-in tee connectors can be supplied as a tee connector (R909TB) or as plug-in type epoxy bushings – all suitable for use with Interface F type bushings on SF6 gas-insulated switchgear and 66kV electrical equipment.

66kV connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type F bushing interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface F 66kV Cable Connectors
  • Maximum Continuous Current – 1250A / 1800 (Amps)
  • Voltage Classes – 66kV 72.5kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Conductor Cross Section Sizes – 95-1200sqmm
  • Applications – 66kV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD R909PB/G Specification

Euromold separable
connector
type
Voltage
Um
(kV)
Current In (A) Conductor sizes (sqmm)
min max
R909PB/G 66kV 72.5kV 1250 Amps / 1800 Amps 95sqmm 1200sqmm
Euromold R909PB/G Coupling Connector 66kV - Design

Euromold R909PB/G Coupling Connector 66kV – Design

Separable coupling connector comprising:

  1. Interface designed to fit R909TB/G
  2. Bus for R909PB/G (contact rod and stud)
  3. Conductor connector (hexagonal crimping or bolted type)
  4. Conductive EPDM insert
  5. Conductive EPDM jacket
  6. Insulating EPDM layer moulded between the insert and the jacket
  7. Cable reducer
  8. Conductive EPDM cap
  9. Basic insulating plug
  10. Earthing lead
  11. Heat-shrinkable sleeve

The thick conductive EPDM jacket provides a safe to touch screen which ensures safety for personnel, cables and electrical equipment in medium/high voltage installations. The screen break design enables cable outer sheath testing without removing or dismantling the connector.

Euromold R909PB/G Selection Table

For Screened MV HV Coupling Connectors

Select the Euromold the ordering part number which gives you the best centring of your core insulation diameter and substitute X using table X, according to the conductor size (sqmm) and type (copper or aluminium). Order Euromold MT connector kit to enable termination of copper tape screened MV-HV cables in voltage range up to 66kV – suitable for copper wire screened cables.

The complete Euromold R909PB/G coupling connector kit comprises the following components – cable lubricant, sealing mastic, gloves, roll adhesive tape, installation instructions and heat-shrinkable sleeve.

Kit Contents for Euromold R909PB/G Connectors

Kit Contents for Euromold R909PB/G Connectors



Euromold R909PB/G
Connector Part Number
Diameter over core insulation (mm)
min max
3 x R909PB/G-S-25-X 27 33.5
3 x R909PB/G-S-30-X 32.5 41
3 x R909PB/G-S-37-X 40 48
3 x R909PB/G-S-43-X 46.5 51
3 x R909PB/G-S-46-X 49.5 55
3 x R909PB/G-S-50-X 54 59
3 x R909PB/G-S-53-X 57 64
3 x R909PB/G-S-58-X 62.5 68



Conductor
sizes
(sqmm)
Aluminium & Copper Conductor (RMV) Copper Cable (RMV)
Bolted DIN Hexagonal Crimp
95sqmm 95.240-14-5 95(K)M-11-2
120sqmm 120(K)M-11-2
150sqmm 150(K)M-11-2
185sqmm 95.240-14-5 185.400-14-5 185(K)M-11-2
240sqmm 95.240-14-5 185.400-14-5 240(K)M-11-2
300sqmm 185.400-14-5 300(K)M-11-2
400sqmm 400.630-14-5 185.400-14-5 400(K)M-11-2
500sqmm 400.630-14-5 500(K)M-11-2
630sqmm 630(K)M-11-2
800sqmm 800.1200-14-5 800(K)M-11-2
1000sqmm 1000(K)M-11-2
1200sqmm 1200(K)M-11-2

RMV: Round Stranded Compacted Conductors
