Cembre MT150 R-TD 120-150sqmm 11kV 33kV HV Copper Connector (RC | S)

HV High Voltage Copper Through Connectors 11kV 33kV

Cembre MT150 R-TD 120-150sqmm 11kV 33kV HV Copper Connector (RC | S)

Cembre MT150 R-TD

Up to 11kV 33kV

Copper Conductor Connectors & Splices

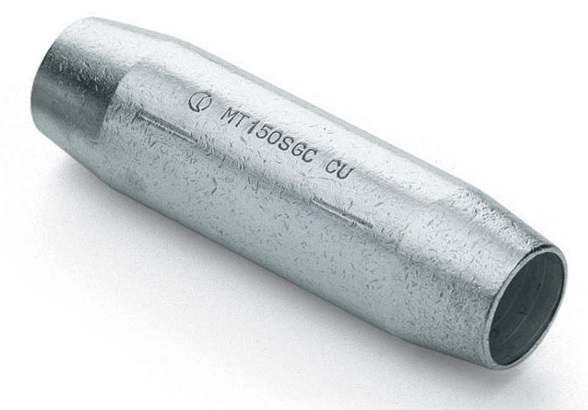

Cembre MT150 R-TD are high voltage copper through connectors with 120-150sqmm round compact (RC) and sector (S) conductors.

MT150 R-TD are unblocked copper splice connectors suitable for jointing cables of same type and specification, typically polymeric-to-polymeric XLPE/EPR insulated cables.

For transition jointing and splicing LV HV cables of PILC (Paper Insulated Lead Covered) construction the Cembre MT-GC version should be used which features a solid stop to prevent migration of oils and greases, (also referred to as “blocked” connectors).

MT-TD & MT-GC HV High Voltage Copper Through Connectors 11kV 33kV Dimensions

MT-TD & MT-GC HV High Voltage Copper Through Connectors 11kV 33kV Dimensions

Cembre MT150 R-TD Technical Design

  • Internal Bore Øi: 15.0 mm
  • Connector Length B: 80 mm

The following table confirms the correct Cembre crimping tool and associated die set required to crimp MT150 R-TD electrical connectors:

Crimping Tool HT51  RH50  B500E  B550E HT81-U  RHU81 HT120
Die Set  MMT-200-50 MMT200-U MMT200-C
