Corner & Hanging Cable Rollers

Corner & Hanging Cable Rollers for Low & High Voltage Power Cable Installations

The Trailer and Winch Solutions range of Corner & Hanging Cable Rollers are available in 12 variants to suit the pulling-in and laying of LV MV HV power cables into underground trench.

TWS’s cable rollers are specialised equipment used in the telecommunications and utility industries for the efficient installation of cable systems, including fiber optics and power cables. These rollers safely support, guide and protect cables during the cable laying process, minimising cable damage and ensuring smooth deployment into the trench by the cable pullers.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation of low, medium and high voltage power cables into underground trench or duct.

Cable Rollers Selection Guide

The following table includes further insight on Trailer and Winch Solutions range of Corner & Hanging Cable Rollers available at Thorne & Derrick, including a technical data sheet download for each product to aid ideal selection:

Corner & Hanging Cable Rollers	Cable Roller Type	Roller Diameter	Cable Roller Size	Weight	Corner & Hanging Cable Rollers Technical Data Sheets

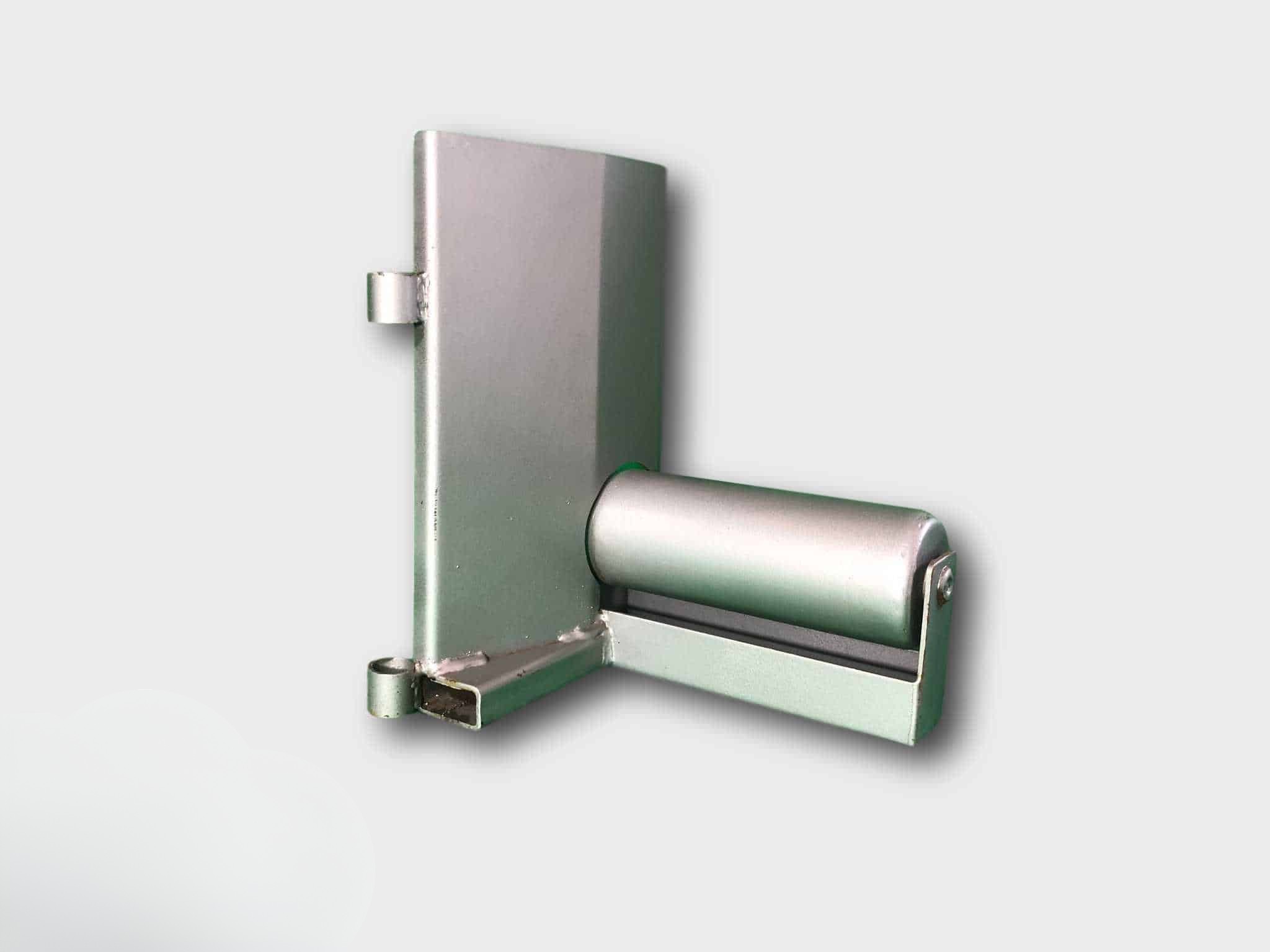

	Skid Type Corner Cable Roller BR1	76mm diameter tubular horizontal steel roller	30cm long x 25cm wide x 31cm high	5Kg
	Heavy Duty Corner Cable Roller BR2	76mm diameter tubular steel rollers	15cm long x 29cm wide x 29cm high	6Kg
	Heavy Duty Triple Corner Cable Roller BR3	3 off 110mm diameter large waisted steel rollers	36cm long x 30cm wide x 32cm high	8.5Kg

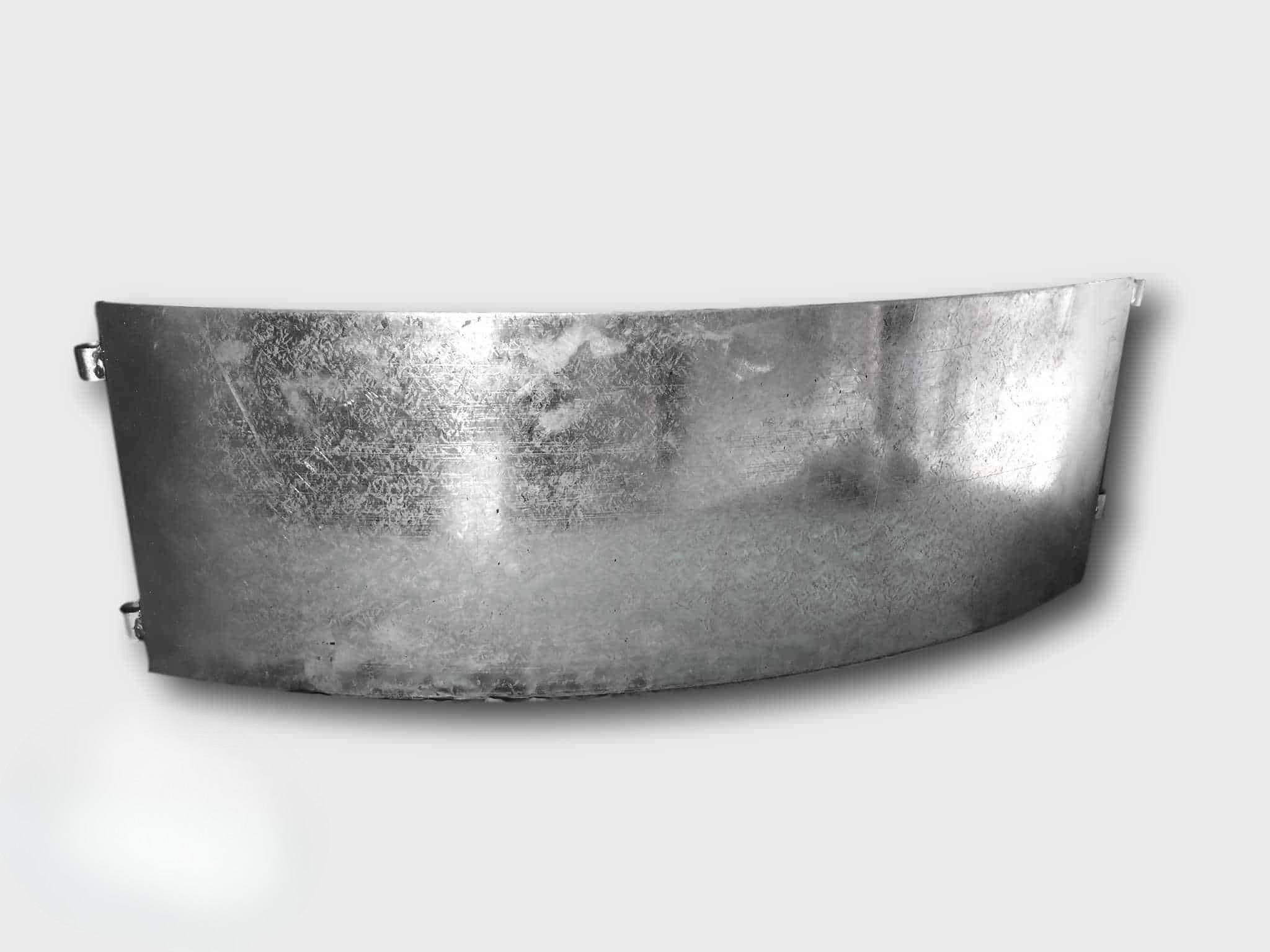

	Light Duty Skid Plate BR4	Light duty skid plate manufactured from 3mm plate	87cm long x 15cm wide x 29cm high	6.5Kg

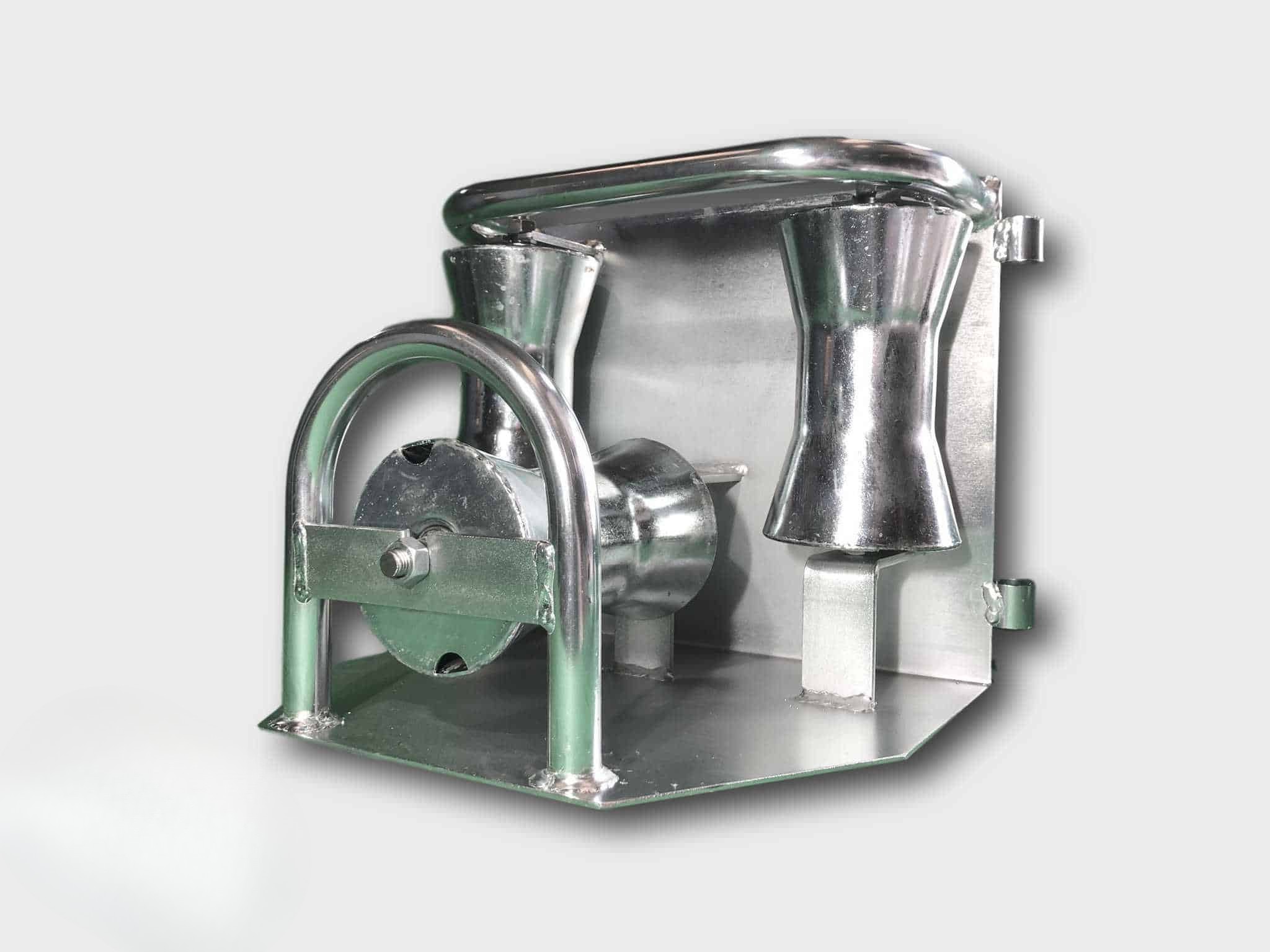

	Heavy Duty Triple Corner Roller BR5	3 off 110mm diameter large waisted steel rollers	36cm long x 28cm wide x 32cm high	10Kg

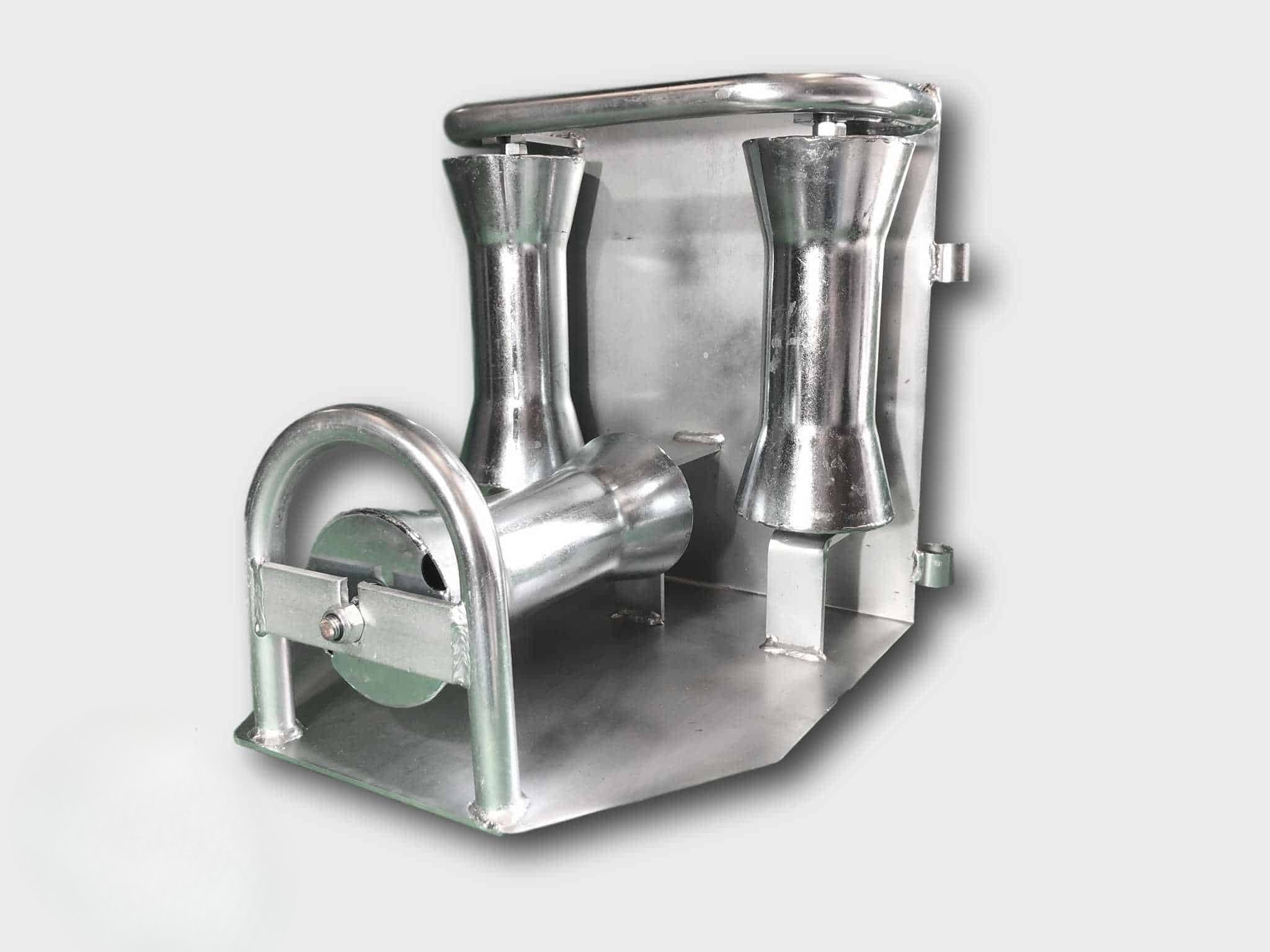

	Heavy Duty Triple Corner Cable Roller BR6	3 off 110mm diameter large waisted steel rollers	36cm long x 38cm wide x 38cm high	13Kg

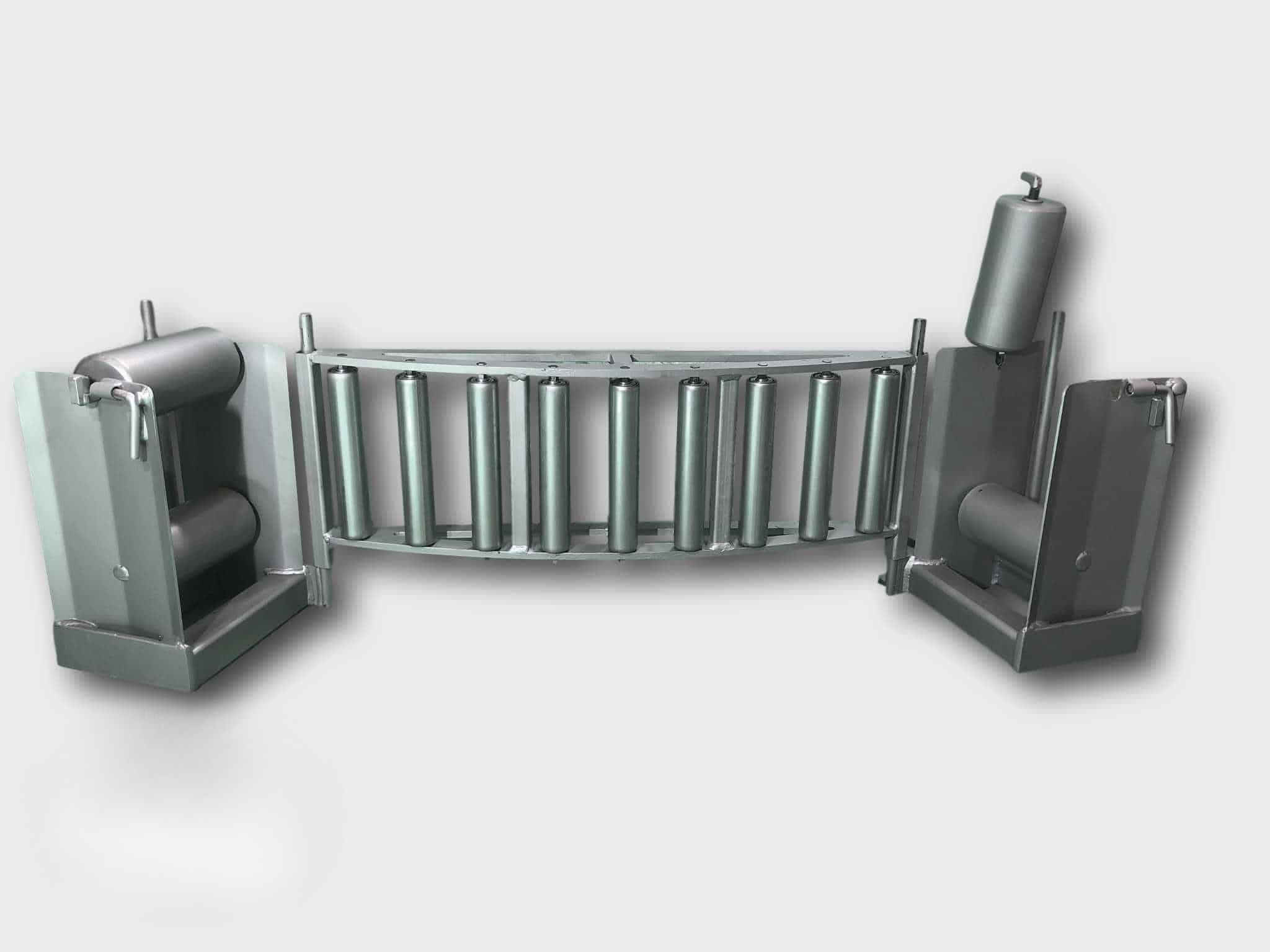

	Heavy Duty Horizontal Corner Roller BR7	2 off 89mm diameter large waisted steel rollers	34cm long x 35cm wide x 41cm high	13Kg
	Heavy Duty Vertical Corner Roller BR8	9 off 40mm diameter steel rollers	84cm long x 11cm wide x 30cm high	13Kg

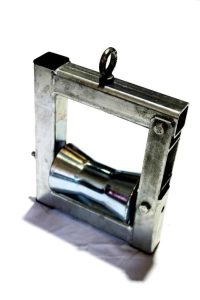

	Hanging Cable Roller Up to 75kg HR1	1 off 110mm diameter steel roller	29cm long x 11cm wide x 41cm high	7Kg

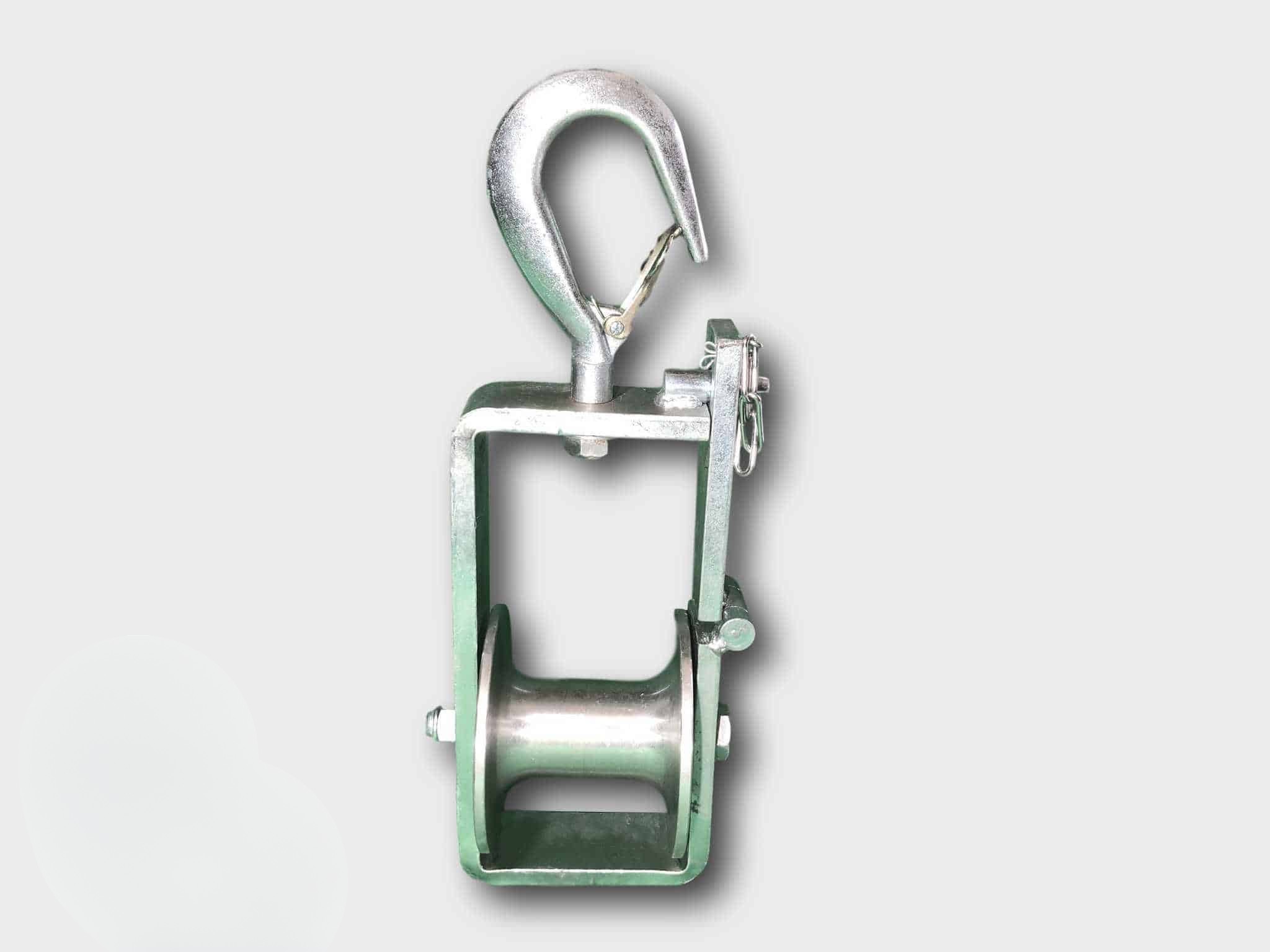

	Compact Hanging Cable Roller Up to 100kg HR2	1 off 130mm diameter aluminium diablo roller	13cm long x 13cm wide x 42cm high	6Kg

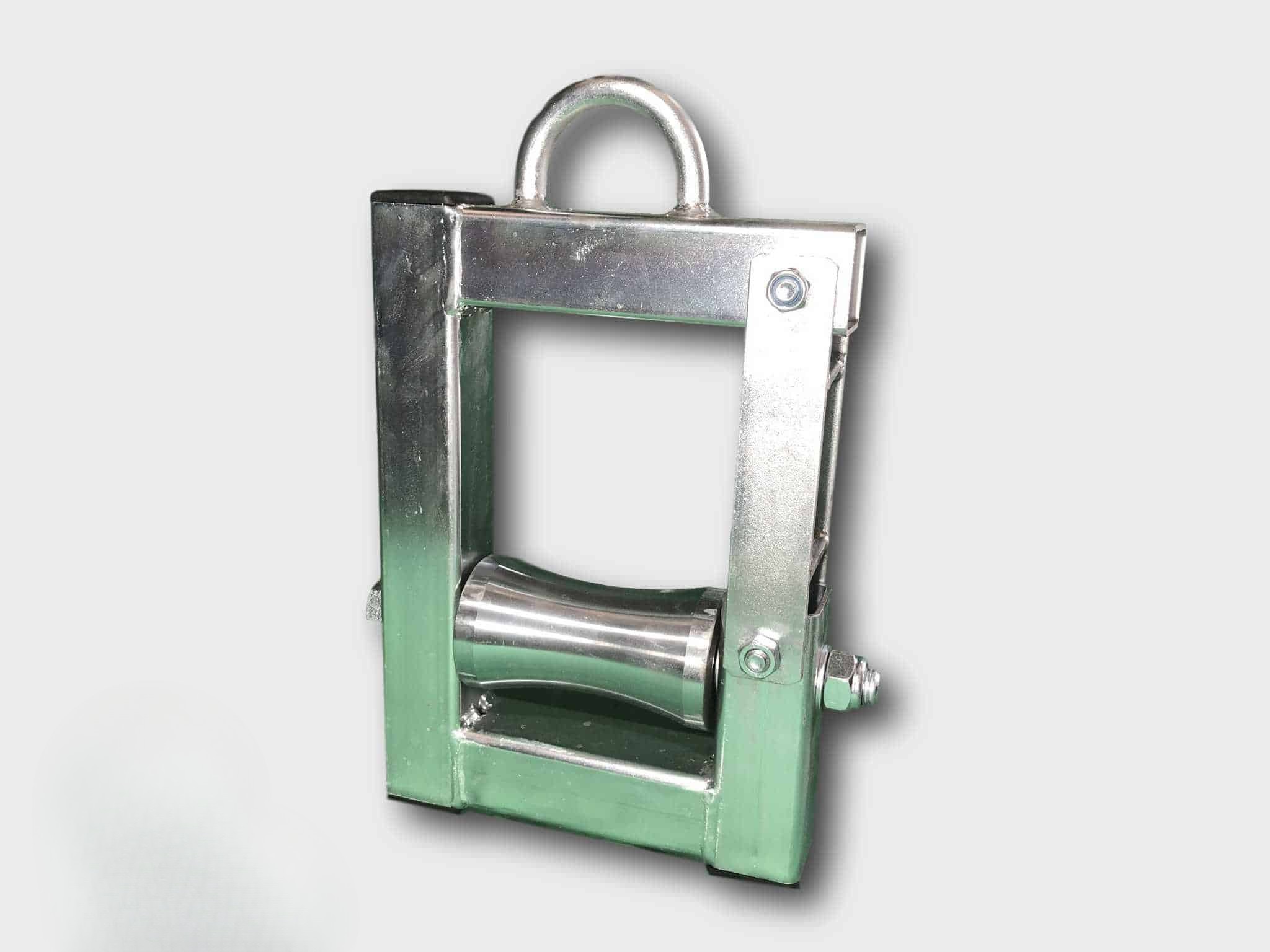

	Heavy Duty Hanging Cable Roller Up to 150kg HR3	1 off 76mm diameter solid steel roller	25cm long x 11cm wide x 41cm high	9Kg
	Clamping Cable Roller Up to 100kg HR4	2 off steel diablo rollers & 2 parallel rollers	15.5cm long x 5cm wide x 22cm high	6Kg

tws | trailer & winch solutions ltd

Trailer and Winch Solutions Ltd are a manufacturer of cable laying equipment and cable pulling accessories for the following voltage classes: 600/1000V (LV), 11kV 33kV (MV) & 66kV 132kV (HV).

Thorne & Derrick distribute a complete range of LV, MV & HV Cable Pulling Products for installation into trench or duct including LV, 11kV/33kV medium voltage (MV), 66kV/132kV high voltage (HV) and EHV transmission and distribution cables up to 400kV.
