Overhead Line Construction Winch | CBS C-780 4 Tonne
Overhead Line Construction Winch

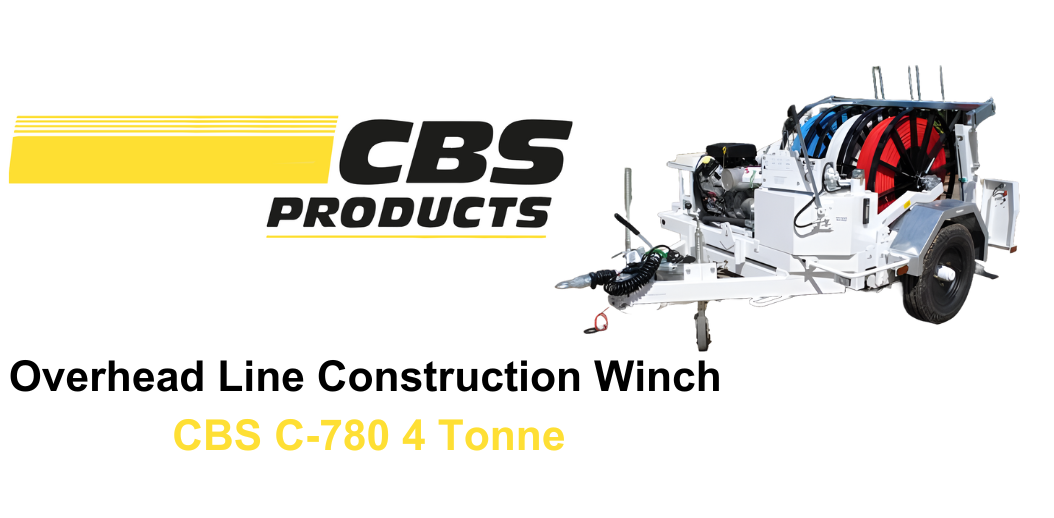

CBS C-780 4 Tonne WinchÂ
The Construction winch is designed by CBS Products for overhead lines to provide reliable and safe lifting operations for 11/33kV work and maintenance requirements. Winching is controlled via a proportional hydraulic valve giving the operator precise control over the load when needed or high speed if necessary.
Designed to tow behind even small vehicles, the Overhead Line Construction Winch has operational stability provided by ground anchors on the towbar or by employing the towing vehicle as an anchor.
Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.
WINCH DESIGN FEATURES
Designed to give reliable, flexible winching system to meet all 11/33kV work, together with some 66kV and 132kV maintenance requirements, the system employs a range of drums to suit particular applications.
The powerful winch is mounted on a robust steel chassis with a single axle trailer facility for site manoeuvrability. The engine, fitted with electric start, powers the drive spindle of the drum via a gearbox and hydraulic circuit which is designed to achieve smooth, variable control of the winding operation in either direction.
The powered hydraulic drum lifting device, together with hydraulic stabilising jacks, provides safe drum handling. Hydraulic layering device fitted as standard.
➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.
C-780 4 TONNE CONSTRUCTION WINCH KEY FEATURES
- Drum Lifting: Equipped with a hydraulic stabilising jacks, the construction winch provides safe drum handling with a hydraulic layering device fitted as standard.

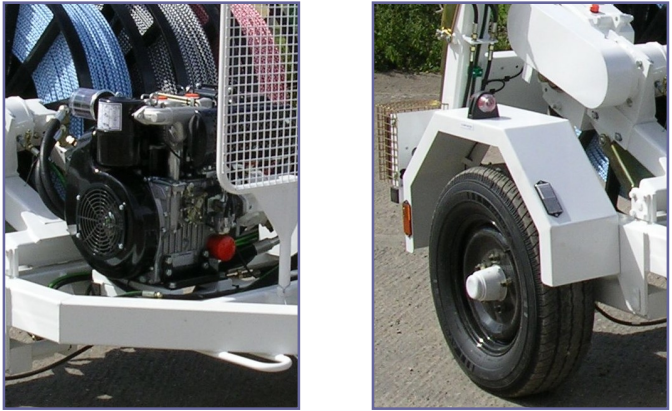

- Powerful Engine: This engine is fitted with electric start, powering the drive spindle of the drum via the gearbox and hydraulic circuit.
Winch Specification
| Engine | Diesel or Petrol |
| Length | 3100mm |
| Width | 2300mm |
| Height | 1400mm (Without drums) |
| Weight | 1100kg (Net) |
Overhead line Construction Winch
Applications
The CBS C-780 4 Tonne winch is useful for overhead line engineers working on 11/33kV work on power lines and cables. Its ability to work with 66kV and 132kV maintenance requirements, the system employing variables of drums to suit particular applications.
Overall, the CBS C-780 winch is an essential tool for professionals in the field, offering a blend of power, precision, and portability.
Winch ordering information
| C-780-40Â | Overhead Line Construction Winch 4 Tonne, Petrol Engine |
| C-780-40-01 | Overhead Line Construction Winch 4 Tonne Diesel Engine |
| C-780-40-01-C | Overhead Line Construction Winch 4 Tonne, Diesel |
