Overhead Line Winch – CBS C-680 Bulldog

Overhead Line Winch

CBS C-680 Bulldog

The CBS 680 Bulldog winch is a versatile solution specifically designed for overhead line stringing activities. Its compact and transportable design makes it an efficient tool for cable installation, especially in areas where space may be limited.

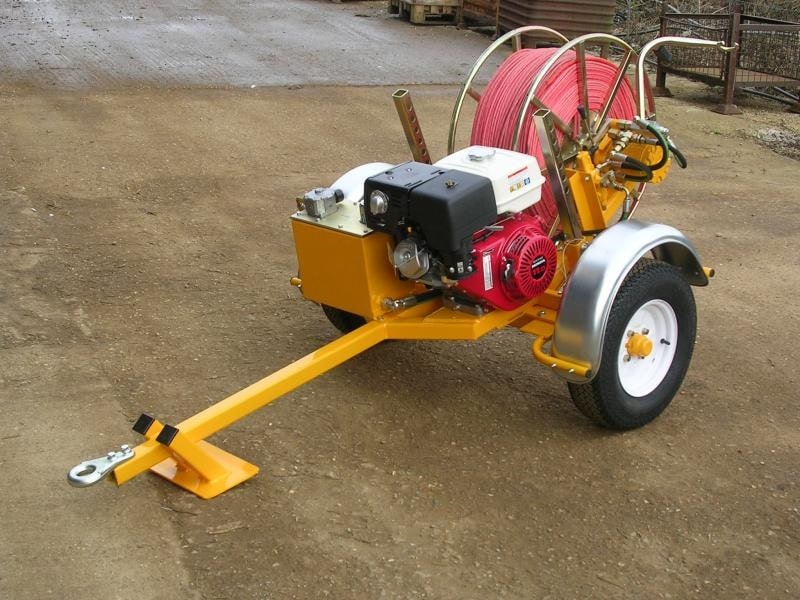

Designed to tow behind even small vehicles, the Bulldog Overhead Line winch is lightweight and can be simply positioned by one man. Operational stability is provided by ground anchors on the towbar or by employing the towing vehicle as an anchor.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.

CBS C-680 Bulldog | Overhead Line Winch

The C-680 Bulldog is a versatile and robust winch specifically designed for the needs of overhead line engineers in the UK. Its universal design allows for a variety of configurations, making it suitable for handling different types of conductors including Aerial Bundle Conductors (ABC), Copper, Aluminium, and ACSR (Aluminium Conductor Steel Reinforced).

➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.

C-680 Bulldog Line Winch Key Features

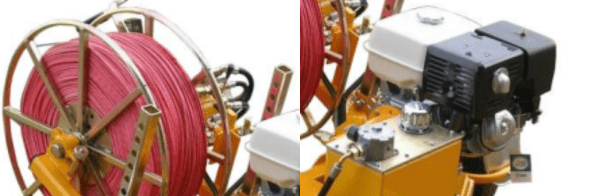

• Powerful Engine: Equipped with an 11hp petrol engine, the Bulldog ensures robust performance for demanding overhead line tasks
• Hydraulic Control: The winch is operated via a hydraulic circuit, allowing for precise control during operation, enhancing efficiency and safety
• Interchangeable Drums: The winch is compatible with various drum sizes suitable for different types of conductors, including aerial bundle (ABC), Copper, Aluminium, and ACSR. This adaptability allows for quick changes in application, depending on project requirements
• Lightweight and Portable: Designed for easy towing behind even smaller vehicles, the Bulldog winch is lightweight, enabling a single operator to position it without difficulty
• Stability: Operational stability is ensured through the use of ground anchors attached to the towbar or by securing the winch with the towing vehicle itself, thus providing a secure base during operation

Winch Specification

Overhead Line Winch

Applications

The CBS 680 Bulldog winch is particularly useful for overhead line engineers working on power lines and communication cables. Its ability to handle different conductor materials and configurations makes it suitable for a range of projects in the electrical utilities and telecommunications sectors.

Overall, the C-680 Bulldog is an essential tool for professionals in the field, offering a blend of power, precision, and portability.

Winch Ordering Information
