Tower Erection Winch | CBS W1-TEW50H-01
Tower Erection Winch

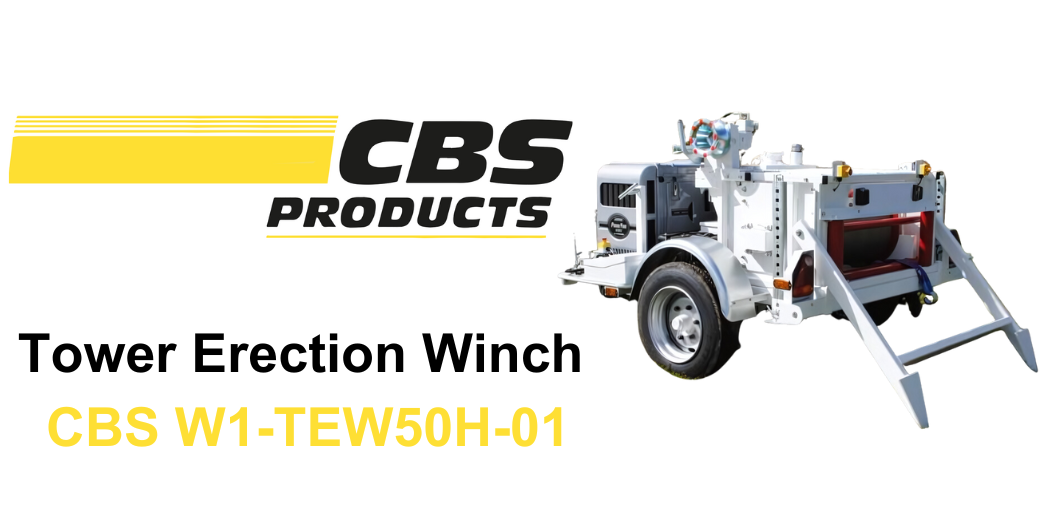

CBS W1-TEW50H-01
The Tower Erection winch is designed by CBS Products for overhead lines to provide reliable and safe lifting operations for tower and mast erection for the electricity or telecommunications industries. Winching is controlled via a proportional hydraulic valve giving the operator precise control over the load when needed or high speed if necessary.

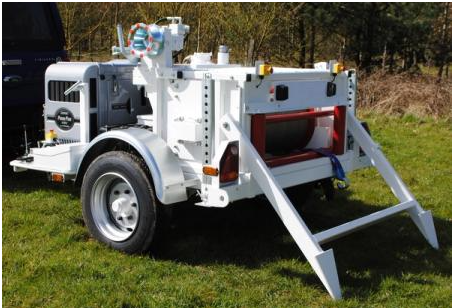

Designed to tow behind even small vehicles, the Tower Erection winch is lightweight and can be simply positioned by one man. Operational stability is provided by ground anchors on the towbar or by employing the towing vehicle as an anchor.
Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.
Tower Erection Winch | CBS W1-TEW50H-01
A variable displacement pump automatically regulates flow to prevent engine stall, leaving the operator to concentrate on the winching operation. A secondary 500kg capstan operated via a footswitch is fitted to aid the positioning of load if necessary.
Power is supplied by a 4 cylinder water cooled Perkins diesel engine fitted in an acoustic enclosure for reduced noise. Power on demand is also utilised to further reduce noise levels when the winch is not operating.
➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.
W1-TEW50H-01 tOWER ERECTION Winch Key Features
- Powerful Engine: Equipped with an 21kW Diesel engine, the winch ensures robust performance for demanding overhead line tasks
- Lightweight and Portable: Designed for easy towing behind even smaller vehicles, the winch is lightweight, enabling a single operator to position it without difficulty
- Stability: Operational stability is ensured through the use of ground anchors attached to the towbar or by securing the winch with the towing vehicle itself, thus providing a secure base during operation
Winch Specification
| Engine | 21kW Quiet Diesel |
| Length | 3313mm |
| Width | 2044mm |
| Height | 2200mm |
| Weight | 2700kg |
Overhead Line Winch
Applications
The CBS W1-TEW50H-01 winch is particularly useful for overhead line engineers working on power lines and communication cables. Its ability to handle different conductor materials and configurations makes it suitable for a range of projects in the electrical utilities and telecommunications sectors.
Overall, the CBS W1-TEW50H-01 winch is an essential tool for professionals in the field, offering a blend of power, precision, and portability.
Winch Ordering Information
| W1-TEW50H-01 | Tower Erection Winch 5 Tonne |
