Universal Winch | CBS C-821 Hydraulic Winch

CBS Universal Winch

uNIVERSAL HYDRAULIC WINCH

CBS C-821 Winch | CBS Products

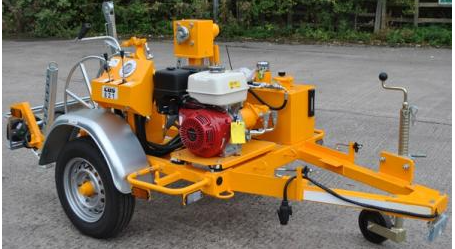

The CBS C-821 Universal Hydraulic winch is a versatile solution specifically designed to offer constant pulling tension of a double capstan drive and the flexibility of a direct drive drum in one machine.

Designed to tow behind a double capstan drive, the Universal Hydraulic Winch employs a powerful petrol engine mounted with associated hydraulics on a sturdy trailer unit. Precise hydraulic controls allow easy operation through one fail-safe lever.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.

Universal Hydraulic Winch | CBS-C-821

The winch employs a powerful petrol engine mounted with associated hydraulic on a sturdy trailer unit. The precise hydraulic controls allow easy operation through one fail-safe lever. Ideally suited for ABC erection, 11/33kV stringing work conductor recovery and underground cable handling.

➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.

C-821 winch Key Features

- Hydraulic Control: The winch is operated via a hydraulic circuit on a trailer unit, allowing for precise control during operation, enhancing efficiency and safety.
- Flexibility: In the winch it has the flexibility of the direct drive drum in one machine.
- Stability: Operational stability is ensured through the use of ground anchors attached to the towbar or by securing the winch with the towing vehicle itself, thus providing a secure base during operation

Winch Specification

Length	2844mm
Width	1420mm
Height	1480mm
Weight	455kg

Hydraulic Winch

Applications

The CBS-C-821 Universal winch is particularly useful for overhead line engineers working on power lines and communication cables. Its ability to handle different conductor materials and configurations makes it suitable for a range of projects in the electrical utilities and telecommunications sectors.

The CBS Universal Hydraulic Winch is useful for industrial applications. It’s powerful petrol engine mounted with associated hydraulic on a sturdy trailer unit. These allow easy operation through one fail-safe lever.

Ideally suited for ABC erection, 11/33kV stringing work, conductor recovery, and underground cable handling.

Winch Ordering Information

C-821-02	700mm diameter drum fitted with 400mm of 8mm Paraline Rope
C-821-03	700mm diameter drum fitted with 600mm of 8mm Paraline Rope
C-A1-680-27	Split Drum
C-821-14	Waterproof Cover
