11kV 33kV Cable Termination Using Nexans Euromold Interface C Connectors Into Brush Transformer

Published 07 Feb 2018

33kV Joints Terminations Connectors LV MV HV

  • Application: Nexans Euromold Interface C Connectors Into Brush Transformer
  • Cable Termination Type: Nexans Euromold Interface C Bushing Connector
  • Electrical Equipment: 11kV 33kV Transformer
  • Cable Jointer: Matthew Horn – HV Cable Jointer at Dragon Infrastructure Solutions
  • by Chris Dodds T&D - estimated reading time 5 minutes

Euromold Connectors

11kV 33kV

Nexans Euromold Interface C separable connectors are suitable for terminating MV-HV cables up to 33kV – a complete range of screened elbow and tee connectors for termination of medium/high voltage cables into switchgear, transformers and substations up to 33kV.

This type of medium voltage cable connector is extensively specified by UK DNO and power distribution operators to connect MV cables onto 11kV/33kV transformers with outer cone type bushings on electrical equipment.

Euromold Interface C separable connectors are suitable for termination of polymeric (XLPE EPR) insulated cables with copper wire or tape screen, wire armoured (SWA/AWA), wire braided or unarmoured cables into MV-HV Electrical Equipment with Interface C bushings.

âž¡ Euromold connectors are available in Interface A-F specifications to terminate MV-HV cables into switchgear, transformers and substations including up to 66kV connections.

Separable Connector Type MV HV Bushing Type Maximum Voltage Cross Section Area Current Rating
Euromold 158LR Interface A 24kV 16-95sqmm 250Amps
Euromold 400LR Interface B 36kV 50-185sqmm 400Amps
Euromold 400TB Interface C Symmetrical 42kV 35-300sqmm 630Amps
Euromold 430TB Interface C Compact 42kV 35-300sqmm 630Amps
Euromold 440TB Interface C Symmetrical 42kV 50-630sqmm 630Amps | 1250Amps
Euromold 480TB Interface C Compact 42kV 35-300sqmm 630Amps | 1250Amps
Euromold 484TB Interface C Compact 42kV 35-630sqmm 1250Amps
Euromold 676LRA Interface D 24kV 50-630sqmm 1250Amps
Euromold 787TB Interface E 42kV 35-630sqmm 800Amps | 1250Amps
Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs - Interface A Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs - Interface C Symmetrical Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs - Interface D Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs - Interface F



11kV 33kV Cable Termination Using Nexans Euromold Interface C Connectors Into Brush Transformer

11kV 33kV Cable Termination Using Nexans Euromold Interface C Connectors – the Euromold connectors are shown here terminating 11kV single core polymeric cables with copper wire screens and stranded copper conductors (630sqmm)

Brush Transformers

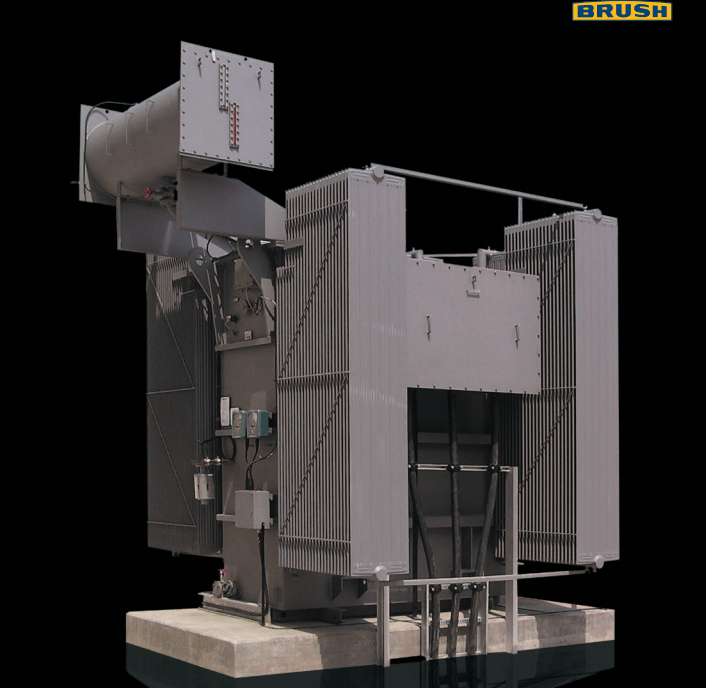

Brush are leading transformer solutions providers for medium/high voltage power networks offering a range of standard or bespoke products for applications including generator step-up, grid connection, system and power transformers.

  • System Transformers
  • Generator Step Up Transformers
  • Grid Connection Transformers
  • Power Transformers
  • Series Current Limiting Reactors
  • Motor Unit Transformers
  • Rectifier Transformers

11kV 33kV Transformers

11kV 33kV Cable Terminations

Thorne & Derrick distribute Nexans Cable Terminations for medium and high voltage electrical cable systems, 11kV/33kV – we provide competitive prices for both heat shrink and cold shrink terminations from extensive stocks to UK and international destinations.

Nexans cable terminations are used for connecting 11kV/33kV power cables into MV-HV electrical equipment including switchgear, transformers and substations – heat shrink terminations are available for both single and 3 core polymeric (XLPE EPR) cables.
