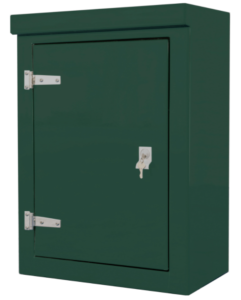

S1 Feeder Pillar | GRP | Single Door

Product Category | Feeder Pillars

Type | GRP Pillar (Galvanised Steel & Stainless Steel Available)

Order Reference | S1

Dimensions | 500mm (W) x 350mm (D) x 650mm (H)

Doors | Single Door 400mm Width x 550mm Height

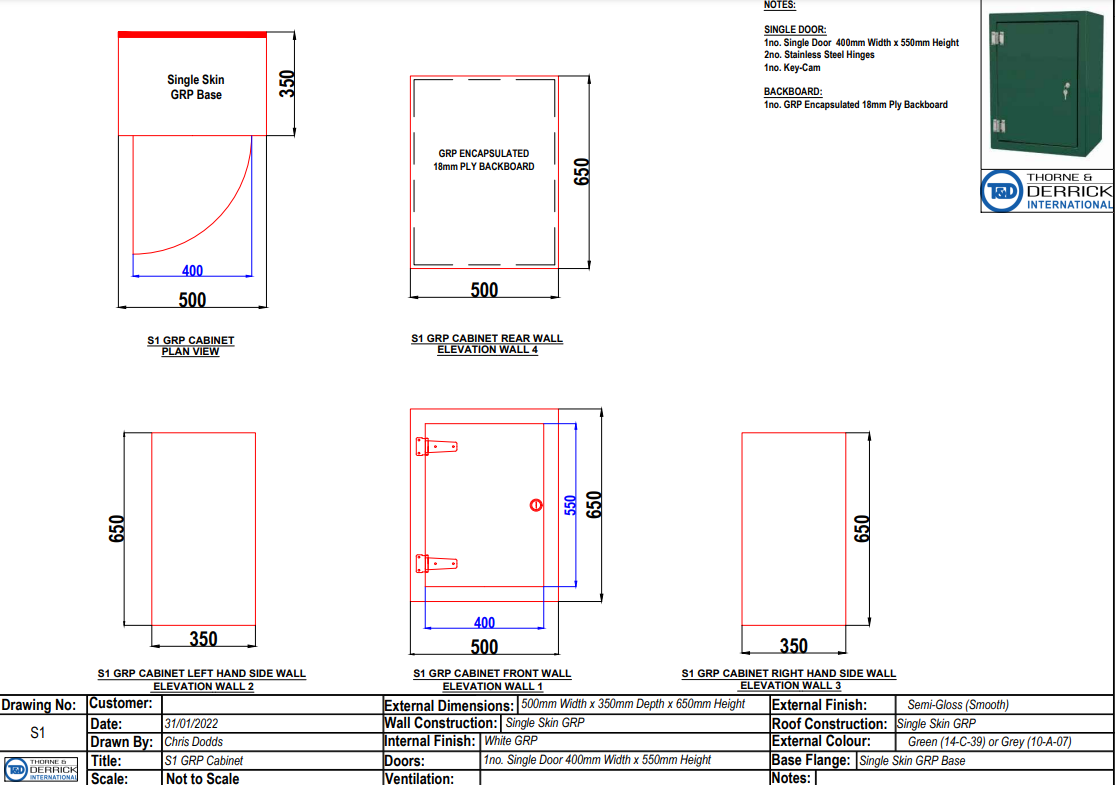

Download Drawing | S1 GRP Pillar | Kiosk | Cabinet

➡ View complete range of GRP Feeder Pillars | Feeder Pillars

---

Feeder Pillar Features

• UV Stabilised Smooth Gel-Coat
• Internal White Resin Finish
• Pillars Available in 14 C 39 Green or 10-A-07 Grey As Standard
• Other Colours are available from the RAL Colour Range
• Cylinder Night-Latch Locking or Stainless Steel Hasp & Staple
• Stainless Steel Door Hinges
• Stainless Steel Spring Tower Bolts
• Half Hour Fire Rating As Standard
• IP55 Rating against Dust, Liquid and Impacts
• 18mm Ply Backboard Fitted As Standard

Extras

• Alternative RAL Colours
• Single Skin GRP Base
• Load Bearing Base
• Viewing Panels
• Stainless Steel Door Stays
• Gland plates
• Ventilation Forced or Natural
• Electrical Packages
• Selection of Feeder Pillar Locking Mechanisms

Related Products | Cut-outs | Street-Lighting | House-Service | DNO

---

LV MV HV Cable Accessories & Electrical Equipment

Thorne & Derrick International, based in the UK, distribute LV – HV Electrical Power Distribution Equipment & Cable Accessories to connect and energise onshore and offshore networks from 600V to 11kV/33kV/66kV.

Data Sheets

• S1 GRP Single Door Cabinet
  Download
