QFCI-I/O/RM-JM/-, F1 Cable

Fire Resistant Optical Fibre Offshore Cables

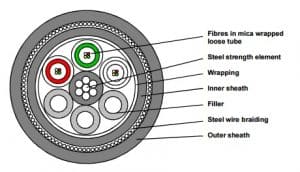

Fire Resistant Optical Fibre Cable, QFCI-I/O/RM-JM/-, F1

Fire Resistant Optical Fibre Cable, QFCI-I/O/RM-JM/-, F1

The cable is halogen free and flame retardant to protect against secondary damage to electronic equipment during and after fire. Outer sheath is made from black UV-stabilized and weather resistant material and may be exposed for shorter periods to fluids such as diesel and mineral oils. The resistance to these fluids is according to IEC60811-2-1.

Prysmian Draka Offshore Cable Applications

fire Resistant optical Fibre Cable nek ts 606

Optical cable for indoor and outdoor use in vital communication and emergency systems that need to be operational during fire. The cable has a patented design that ensures operation for more than 3 hours in fires up to 1000ºC.

FIRE RESISTANT OPTICAL FIBRE Cable Core Identification
Fibre number Colour Tube Number  Colour
1 White 1 Red
2 Red 2 Green
3 Yellow 3 White
4 Green 4 White
5 Blue 5 White
6 Grey 6 White
7 Brown
8 Black
Fire Resistant Optical Fibre Cable Properties
Tensile Strength (IEC 60794-1-2E1)
Max tensile load during installation 1500 N 500 N
Max tensile load during operation 500 N
Crush (IEC 60794-1-2E3) 3000 N/10cm
Impact (IEC 60794-1-2E4) 30J
Torsion (IEC 60794-1-2E7) ±1 turn/1m
Cable Bending
Minimum bending diameter 250 mm
Cable bend (IEC 60794-1-2E11) <0.1dB/ ±5 turn
Temperature Window
Operation 40°C to +70°C
Installation -10°C to +70°C
Storage 40°C to +70°C
Chemical Resistance
Mineral oils IRM 902 (IEC60811-2-1) – 7 days/23°C
– 4 hours/70°C
Diesel – IRM 903 (IEC60811-2-1) – 7 days/23°C
– 4 hours/70°C
Fire & Smoke Classifications
IEC 60331-25 (750°C, 90 minutes) <1.0 dB excess loss
Upgraded IEC 60331-25 (1000°C, 3 hours) <1.5 dB excess loss
BP GS 112-2 Clause7.1
IEC 61034
IEC 60332-3-22 (Cat. A)
IEC 60332-3-24 (Cat. C)
IEC 60754-1
IEC 60754-2
