Hydro Carbon Fire Resistant MV Power Cable RFOU-HCF 6/10(12)kV, P30

Prysmian Draka Offshore Cables – LV, MV & HV Power (RFOU BFOU to IEC / NEK 606)

Prysmian draka cABLES

RFOU-HCF 6/10(12)kV Cable

MGT/EPR/EPR/TCWB/EVA/HCF/SHF1 Offshore Cables

Operating Temperature : 90°C

Operating Voltage : 6/10(12)kV

Prysmian Draka RFOU Offshore Cable Applications

Power Cable nek ts 606

Fixed installation for medium voltage (MV) power in both EX- and safe areas, emergency and critical systems where requirement for fire resistance is vital.

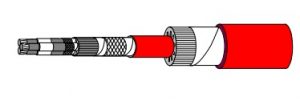

RFOU-HCF Power Cable Construction	Code Letter	RFOU-HCF Power Cable Description
Conductor		Tinned stranded and compressed copper (STCC), IEC 60228 class 2
Conductor screen semiconductive		Semiconductive layer (EP-rubber)
Insulation	R	Mica-tape + EP-rubber, IEC 60092-360 (EPR)
Insulation screen semicoductive		Semiconductive layer (EP-rubber)
Lay up / Shielding		Cores are laid up together. Cores are identified by Brown, Black or Grey threads under and over the metallic screen on each conductor.
Inner covering	F	Flame retardant and halogen-free thermoset compound
Tape over inner covering		PET tape
Cable armour/screen	O	Tinned copper wire braid
Tape over armour/scree		PET tape
Cable outer sheath	V	Flame retardant, halogen-free and oil resistant thermoset compound (Therban), SHF2 (IEC 60092-360)
HCF Protection	– HCF	Extruded heatblock compound
Tape		Lapped glassfibre tape
Cable outer sheath		Flame retardant, halogen-free thermoplastic compound, SHF1 (IEC 60092-360)
Marking text		Eg. “meter” “year” DRAKA NORSK KABEL RFOU-HCF 6/10(12)kV P30 1x 70/16 mm² HCF 1100/60 FLEX – FLAME
Outer sheath colour		Red

Cable Standards Applied

Cable Terminations Joints Cleats 6.6kV 11kV 33kV

Cable Joints, Terminations, Glands & Cleats – available for 6.6kV 11kV and 33kV medium voltage (MV) power cables.

IEC 60092-354 – Design IEC 60228 class 2 – Conductor
IEC 60092-360 – Insulation IEC 60092-360 – Sheath
IEC 60332-1-2 – Flame Retardant
IEC 60332-3-22 – Flame Retardant
IEC 60331-21 – Fire Resistant
EN 1363-2 / ISO 834 – HC Fire resistance
IEC 60754-1,2 – Halogen Free
IEC 61034-1,2 – Low Smoke
Draka Norsk Kabel – HCF protection
