ICS IE ToughCat 7S* MUD Protected S/FTP Installation Cable For Tougher Environments

Prysmian Draka Cables

Prysmian Draka Offshore Cables – LV, MV & HV Power, Control & Instrumentation (RFOU BFOU to IEC / NEK 606)

Prysmian draka cABLES

ICS IE ToughCat 7S* MUD Protected S/FTP Installation Cable

Offshore CABLE APPLICATIONS

This Cat7 S/FTP cable is based on our DNV and Lloyd Register certified ToughCat, but with an additional fire retardant, halogen-free, low smoke MUD protecting outer jacket. This cable is suitable for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units.

Prysmian Draka Offshore Cable Standards

EN 50173-1; EN 50288-2-1

ISO/IEC 11801; IEC 61156-5

Det Norske Veritas (DNV) specification No. 6-827.50-2 and Lloyd Register approval system, 2002

Fire Rating:

MUD protecting outer sheath : IEC 60754-2, IEC 61034, IEC 60332-3-24

Inner sheath LSHF-FR(SHF1) : IEC 60754-2, IEC 61034, IEC 60332-3-24

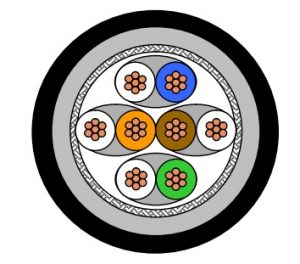

Construction

Conductor Solid copper wire, Ø 0.56 mm (AWG 23)
Insulation foamskin PE, Ø 1.4 mm
Twisting 2 cores to the pair
Cable Lay Up 4 pairs (PiMF) to the core
Pair Armour/Screen Al-laminated plastic foil
Cable Armour/Screen Copper braid, tinned
Cable Inner Sheath Oil resistant, Fire retardant and halogen free LSHF-FR (SHF1)
Cable Outer Sheath MUD protecting
 Mechanical Properties
Bending radius Without load 8 x D
With load 4 x D
Temperature Range During operation -40°C to + 85°C
During installation -15°C to + 50°C
Fire load 4 pair 670 MJ/km
Maximum tensile load During operation No load
During installation 200 N
Chemical resistance Mineral oils IRM 902 (IEC60811-2-1) 7 days/100°C
Diesel – IRM 903 (IEC60811-2-1) 7 days/100°C



Cable Terminations Joints Cleats 6.6kV 11kV 33kV

Cable Joints, Terminations, Glands & Cleats – available for 6.6kV 11kV and 33kV medium voltage (MV) power cable

Cable Joints Cable Cleats Cable Glands - Prysmian Cables

T&D distribute the complete range of Prysmian cable cleats, cable joints and cable glands for onshore and offshore LV-HV power, control and instrumentation cables.
