Northern Powergrid NPG – LV Cable Joints & Terminations
Published 17 Aug 2017

Northern Powergrid – Cable Joints Cable Terminations LV Low Voltage
- UK DNO: Northern Powergrid NPG
- Product Category: LV Cable Joints and Cable Terminations
- Document Type: NPS/002/014
- Document Date: March 2015
Joints & Terminations LV
- Mains & Service Straight Joints
- Mains & Service Branch Joints
- Mains & Service Stop End joints
- Pole Top Mounted & LV Board Cable Terminations
- Note: Documents are prone to change – always check with T&D to ensure current and correct Joints & Terminations are selected.
➡ View our Northern Powergrid (NPG) complete product range for LV, MV & HV Cable Installation, Termination, Jointing, Substation & Electrical Equipment.

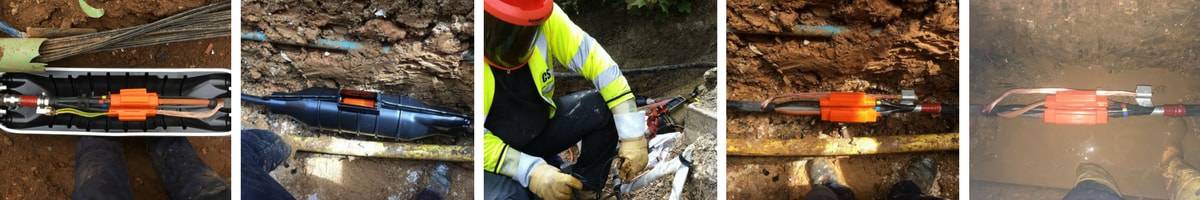

Northern Powergrid NPG Cable Joints
NPG Commodity Code | Description |
Heatshrink Cable Joints – Service | |
174505 | Straight Joint: Heatshrink: Single Phase CNE-CNE / SNE up to 35sqmm |
174506 | Straight Joint: Heatshrink: Single Phase SNE – SNE up to 35sqmm |
174507 | Straight Joint: Heatshrink: Three Phase CNE – CNE up to 35sqmm |
174508 | Straight Joint: Heatshrink: Single Phase up to 35sqmm CNE – PILC (up to 0.04in) |
174510 | Straight Joint: Heatshrink: Single Phase SNE – PILC up to 35sqmm |
174509 | Straight Joint: Heatshrink: Three Phase CNE up to 35sqmm – 4 Core PILC up to 0.04in |
Resin Filled Service Straight Joints | |
086561 | Straight Joint: Single Phase CNE PVC (4sqmm) – Single Phase CNE up to 35sqmm |
174488 | Straight Joint: Single Phase PILC – Single Phase PILC (.0225 – 0.06) |
174489 | Straight Joint: Three Phase PILC – Three Phase PILC (.0225 – 0.06) |
174471 | Straight Joint: Three Phase 4 Core PILC – Three Phase SNE up to 35sqmm |
Stop Ends Joints – (Service and Mains) | |
174361 | Stop End: Service: Heatshrink: Single Phase CNE/SNE up to 35sqmm |
174365 | Stop End: Service: Heatshrink: 3 Phase CNE up to 35sqmm |
174384 | Stop End: Service: Heatshrink: Single Phase PILC up to 0.06in |
174385 | Stop End: Service: Heatshrink: 3 Phase PILC up to 0.06in |
174698 | Stop End: Resin Filled: 70sqmm – 185sqmm 3 and 4 core Waveform |
174700 | Stop End: Resin Filled: 185sqmm 300sqmm 3 and 4 core Waveform |
174664 | Stop End: Mains: Resin Filled: 50sqmm – 95sqmm (0.06 – 0.15in) PILC |
174679 | Stop End: Mains: Resin Filled: 120sqmm – 300sqmm (0.2in – 0.5in) PILC |
174645 | Stop End: Mains: Resin Filled: 70sqmm – 300sqmm CONSAC |
Branch Joints – Service | |
174511 | Branch Joint: Single Phase CNE Main – CNE Branch up to 35sqmm |
174490 | Branch Joint: Single Phase SNE – SNE cables up to 35sqmm |
174512 | Branch Joint: Three Phase CNE Main – Three Phase CNE Branch: up to 35sqmm |
174513 | Branch Joint: Single Phase: PILC Main – CNE Branch: up to 35sqmm |
174514 | Branch Joint: Three Phase PILC Main – 3 Phase CNE Branch: up to 35sqmm |
Mains Straight Joints – 3 Core Waveform | |
166329 | Straight Joint: up to 95sqmm 3-core Waveform – 95sqmm 3-core Waveform |
166386 | Straight Joint: 95, 185sqmm 3-core Waveform – 185sqmm 3-core Waveform |
166441 | Straight Joint: 95, 185, 300sqmm – 3-core Waveform – 300sqmm 3-core Waveform |
166719 | Straight Joint: up to 95sqmm 3-core Waveform – 95sqmm PILC |
166831 | Straight Joint: 95, 185sqmm 3-core Waveform – up to 185sqmm PILC |
166901 | Straight Joint: 95, 185, 300sqmm 3-core Waveform – 300sqmm PILC |
166511 | Straight Joint: up to 95sqmm 3-core Waveform – 95sqmm Consac |
166583 | Straight Joint: up to 185sqmm 3-core Waveform – 185sqmm Consac |
166653 | Straight Joint: 300sqmm 3-core Waveform – up-to 300sqmm Consac |
Mains Straight Joints (4-core Waveform) | |
165012 | Mains Straight Joint: 95sqmm 4-Core Waveform – 95sqmm 4-Core Waveform |
165013 | Mains Straight Joint: 185sqmm 4-Core Waveform – 185sqmm 4-Core Waveform |
165014 | Mains Straight Joint: 300sqmm 4-Core Waveform – 300sqmm 4-Core Waveform |
Mains Straight Joints (4 – 3-core Waveform) | |
165015 | Mains Straight Joint: 95sqmm 4-Core Waveform – 95sqmm 3-Core Waveform |
165016 | Mains Straight Joint: 185sqmm 4-Core Waveform – 185sqmm 3-Core Waveform |
165017 | Mains Straight Joint: 300sqmm 4-Core Waveform – 300sqmm 3-Core Waveform |
Main Straight Joint (4-Core Waveform – PILC) | |
165027 | Mains Straight Joint: 95sqmm 4-Core Waveform – 95sqmm 4-Core PILC |
165028 | Mains Straight Joint: 95sqmm – 185sqmm 4-Core Waveform – 0.3 PILC |
165029 | Mains Straight Joint: 185sqmm – 300sqmm 4-Core Waveform – up to 0.5 PILC |
Mains Branch Joints – 3 Core | |
166973 | Branch Joint: up to 95sqmm 3-core Waveform – 95sqmm 3-core Waveform Main |
167035 | Branch Joint: 95,185 3-core Waveform – 185sqmm 3-core Waveform Main |
167105 | Branch Joint: 95,185 3-core Waveform – 300sqmm 3-core Waveform Main |
167637 | Branch Joint: 300mm 3-core Waveform – 300sqmm 3-core Waveform Main |
167707 | Branch Joint: up to 95sqmm 3-core Waveform – 95sqmm PILC Main |
167779 | Branch Joint: 95,185sqmm 3-core Waveform – 185sqmm PILC Main |
167849 | Branch Joint: up to 300sqmm 3-core Waveform – 300sqmm PILC Main |
168023 | Branch Joint: 95, 185sqmm 3-core Waveform – up to 185sqmm Consac Main |
168080 | Branch Joint: 300sqmm 3-core Waveform – up to 300sqmm Consac Main |
Main Branch Joints – 4 Core | |
165018 | Mains Branch Joint: 95sqmm 4-Core Waveform – 95sqmm 4-Core Waveform |
165019 | Mains Branch Joint: 95-185sqmm 4-Core Waveform – 185sqmm 4-Core Waveform |
165020 | Mains Branch Joint: 95-300sqmm 4-Core Waveform – 300sqmm 4-Core Waveform |
165021 | Mains Branch Joint: 95sqmm 3-Core Waveform (Branch) – 95sqmm 4-Core Waveform (Main) |
165022 | Mains Branch Joint: 95-185sqmm 3-Core Waveform (Branch) – 185sqmm 4-Core Waveform (Main) |
165023 | Mains Branch Joint: 185-300sqmm 3-Core Waveform (Branch) – 300sqmm 4-Core Waveform (Main) |
165030 | Mains Branch Joint: 95sqmm 4-Core Waveform (Branch) – 95sqmm 4-Core PILC (Main) |
165031 | Mains Branch Joint: 95-185sqmm 4-Core Waveform (Branch) – 185sqmm 4-Core PILC (Main) |
165032 | Mains Branch Joint: 95-300sqmm 4-Core Waveform (Branch) – 300sqmm 4-Core PILC (Main) |
Pole Cable Terminations | |
086652 | Pole Termination 25sqmm PILC |
086678 | Pole Termination 95sqmm PILC |
086637 | Pole Termination 185sqmm PILC |
164682 | Pole Termination 35sqmm 3-core Concentric CNE |
086645 | Pole Termination 120-185sqmm 3-core Waveform |
086660 | Pole Termination 300sqmm 3-core Waveform |
165000 | Pole Termination: 185sqmm 4-Core Waveform |
165001 | Pole Termination: 95sqmm 4-Core Waveform |
165002 | Pole Termination: 300sqmm 4-Core Waveform |
Service Branch Joint 3 & 4-core Waveform – PILC & Consac | |
164998 | Service Branch: up to 185sqmm Waveform 2 x Single Phase Services up to 35sqmm (The 2 services from same phase) |
164997 | Service Branch: up to 185sqmm Waveform with up to 4 x Single Phase CNE Services |
165646 | Service Branch: 300sqmm Waveform with up to 4 x Single Phase CNE/SNE or 1 x 3-Phase CNE/SNE Services |
165970 | Service Branch: up to 95sqmm PILC with up to 4 x Single Phase Services |
166189 | Service Branch: up to 185sqmm PILC with 1-2 Single Phase Services |
166259 | Service Branch: up to 300sqmm PILC with 1 or 2 Single Phase CNE or 1 x 3-Phase CNE Services |
165788 | Service Branch: 70/120sqmm Consac with up to 4 x Single Phase Services |
165858 | Service Branch: 185/240sqmm Consac with up to 4 Services |
Triple Concentric Cable Joints | |
168289 | Stop End: Paper Lead Triple Concentric up to 0.12Sq in |
168291 | Service Breeches Joint: Triple Concentric Paper Lead up to 0.12in with 3-Core CNE Branch up to 35sqmm |
168291 | Service Breeches Joint: Single Phase Concentric Paper Lead up to 0.15in with Single Phase CNE Branch up to 35sqmm |
168290 | Straight Joint: Transition; Triple Concentric up to 0.12Sqin to Waveform Cable up to 95sqmm ( with single phase service if required) |
