Cembre L1-M 6sqmm Copper Crimp Splice Connectors

LV Low Voltage Through Crimp Splice Connectors 600 1000V

6sqmm Copper Connector

Copper Tube Through Connector Low Voltage 600/1000V

Cembre L1-M range of copper crimp splice connectors suit conductor sizes of 4-6sqmm – the through connectors manufactured by Cembre are designed for jointing low voltage conductors (stranded and flexible) and are made of electrolytic copper tube having the same dimension as Cembre A-M series cable lugs.

Connector Application

Low Stranded Copper Conductors 4sqmm-6sqmm
Flexible Copper Conductors 4sqmm-6sqmm

A parallel connector version is available, order code Cembre L06-P.

The cable crimp connectors comply with IEC 61238-1 and according to UL 486A standard (file EI25401) – compatible for jointing conductors and use with Cold Shrink joints and heat shrink cable joints.

Product: Low Voltage LV Electrical Connectors
Technology: Crimp | Compression Connectors
Voltages: LV 600/1000V
Part Number: Cembre L1-M
Mechanical Tools: Cembre HN1, TN70SE
See also Hydraulic Tools: Cembre B15MDE, HT45-E, B450ND-BVE, HT51, B550E, RH50, B500E, B500NDE, HT81-U, RHU81, HT120, ECW-H3D, RHU520
Cembre Lugs | Connectors | Tools (Cutting & Crimping)

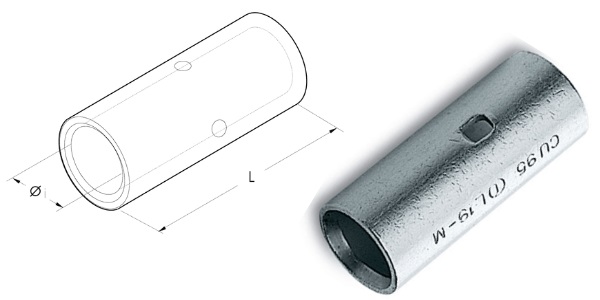

LV Low Voltage Through Crimp Splice Connectors 600 1000V Dimensions

Cembre L1-M Technical Design

∅i: 3.6mm
L: 22mm

Crimping Tools

The following Cembre tools can be used to crimp L1-M electrical copper tube connectors for control, distribution and power applications.

Mechanical Crimping Tools – HN1 TN70SE
Hydraulic Crimping Tools – B15MDE, HT45-E, B450ND-BVE, HT51, B550E, RH50, B500E, B500NDE, HT81-U, RHU81
