Cembre RHC131

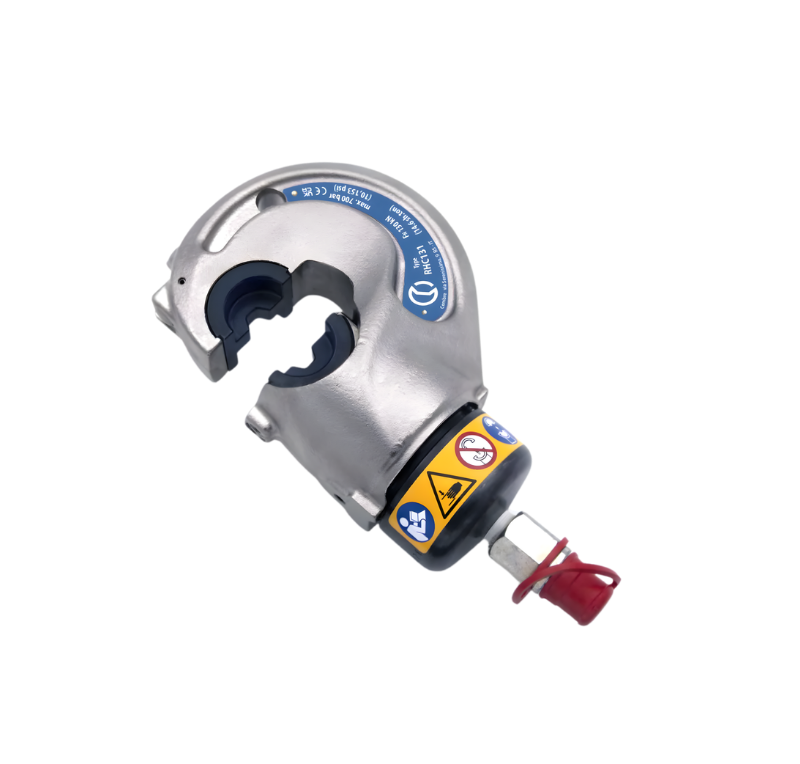

Cembre RHC131 is a hydraulic presshead crimping tool complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max.
RHC131 presshead will accept die sets common to Cembre 130kN hydraulic crimping tools.
The RHC131 hydraulic crimping head is suitable for installing the same range of cable lugs, crimp connectors and terminals as Cembre HT131-C.
The presshead weighs 3.8kg and is supplied in a robust plastic case which is suitable for storage of the crimper head tool and 14 sets of crimping dies – used to joint and terminate lugs or connectors on LV MV HV cables including 11kV/33kV medium/high voltage electrical systems.
| LV Cable Lugs Splices | C Sleeve Connectors | HV Cable Lugs Splices |
| 400sqmm | 185sqmm | 400sqmm |
Cembre RHC131 Presshead
User Instructions
- The Cembre RHC131 presshead is equipped with a “self-lock” quick male coupler which can be connected to a Cembre pneumatic or electric pump
- Select the appropriate die set for the connectors (crimp lugs or splices) for use with the presshead
- Open the latch and release the upper die holder of the hydraulic crimping tool or presshead
- Insert one die into the upper die holder and one die into the lower die holder
- Close the latch on the presshead tool
- Insert the conductor into the connector (crimp lug or splice)
- Locate the connector between the crimping dies at the desired crimp position
- Operate the pump to advance the main ram
- Continue to operate the pump, the ram will gradually advance until crimp dies meet
- Recommended to keep pumping until the maximum pressure valve is activated and a “click” is heard
- After crimping completion press the release lever to release oil pressure
- Recommend only Cembre Lugs & Connectors are used with Cembre tooling
Cembre RHC131 comes with VAL P26 plastic case.
CEMBRE RHC131 Presshead
TECHNICAL SPECIFICATION
Should you require technical guidance, user assistance, application support or a competitive quotation for Cembre Tool Model RHC131 please contact Thorne & Derrick.
| Cembre RHC131 Presshead Specification | |
| Tool Width | 124mm |
| Tool Length | 232mm |
| Crimping Force Developed | 130kN |
| Type of Action | Crimp |
| Weight | 3.8kg |
| Nominal Pressure Of Presshead | 700 bar |
Cembre RHC131 Presshead – Hydraulic Crimping Tool
Cembre RHC131 presshead supplied with protective carrying case, tool manual and crimp die sets
Die Set Options
A complete range of die sets are available for installing and crimping all types of Cembre lugs and connectors when using the RHC131 hydraulic crimp head.
| Cable Conductor Size | A Range Lugs LV 600/1000V | 2A Range Lugs MV HV 11kV 33kV | Flexible Copper Lugs | ANE Nylon Insulated Lugs | CA Copper Lugs | AA Aluminium Cable Lugs | CAA Bi-Metallic Cable Lugs |
| 10sqmm | ME2-C | ME2-C | – | MN2RF-C | – | – | |
| 16sqmm | ME3-C | ME3-C | – | MN3RF-C | – | MK16-C | MK16-C |
| 25sqmm | ME5-C | ME5-C | – | MN5RF-C | MMT25-C | MK16-C | MK16-C |
| 35sqmm | ME7-C | ME7-C | ME9-C | MN7RF-C | MMT50-C | MK16-C | MK16-C |
| 50sqmm | ME10-C | ME10-C | ME12-C | MN10RF-C | MMT50-C | MK20-C | MK20-C |
| 70sqmm | ME14-C | ME14-C | ME17-C | MN14RF-C | MMT95-C | MK20-C | MK20-C |
| 95sqmm | ME19-C | ME19-C | ME20-C | MN19RF-C | MMT95-C | MK20-C | MK20-C |
| 120sqmm | ME24-C | ME24-C | ME29-C | MN24RF-C | MMT200-C | MK25-C | MK25-C |
| 150sqmm | ME30-C | ME30-C | ME35-C | MN30RF-C | MMT200-C | MK25-C | MK25-C |
| 185sqmm | ME37-C | ME37-C | ME40-C | – | MMT200-C | MK32L-C | MK32L-C |
| 240sqmm | ME48-C | ME48-C | – | – | MMT315-C | MK32L-C | MK32L-C |
| 300sqmm | ME60-C | ME60-C | – | – | MMT315-C | MK34L-C | MK34L-C |
| 400sqmm | ME80-C | ME80-C | – | – | ME80-C | – | – |
LV- HV CABLE CRIMPING APPLICATIONS
Cembre RHC131 is generally used to terminate copper or aluminium conductors during the installation of LV cable glands (up to 400sqmm) or MV HV joints and terminations (up to 400sqmm).
- LV Cable Lugs & Splices – up to 400sqmm cable conductors
- HV Cable Lugs & Splices (11kV-33kV) – up to 400sqmm cable conductors
- “C” Sleeve Copper Connectors – up to 185sqmm cable conductors
- Insulated Terminals – up to 240sqmm cable conductors
➡ For Cembre electrical connections, see Cable Crimps, Lugs & Connectors
Contact T&D to discuss crimping cables at MV-HV, including 11kV-33kV, to ensure correct Cembre tool, lug/splice and die set selection – visit battery crimping tools for repetitive crimping of cables without strain injury or worker fatigue.
Full range of battery cable cutting tools also available.
Tools for Precision Cutting & Crimping of Cables with SMARTOOL Data Recording for Quality Control
Safety & Speed | Thorne & Derrick supply Tools for the Cutting and Crimping of all types of underground, overhead and subsea cable and conductors using Battery-powered Hydraulic Tools to provide highest levels of worker ergonomic comfort and reliable LV HV power systems – the cutters and crimpers provide consistent high integrity electrical connections including crimped splices and lugs.
