Ellis Patents Solus Single Cable Clamps (19mm – 75mm)

Solus Single Cable Clamps

Solus Clamps

Single Cable Cleats for Supporting & Cleating LV HV Power Cables

Manufactured By Ellis Patents
Brand – Solus
Cable Cleat Type – Standard Duty Clamp For Single Cables
Material – High Strength Glass Reinforced Polyamide
Cleat Range Single Cables – 19-75mm

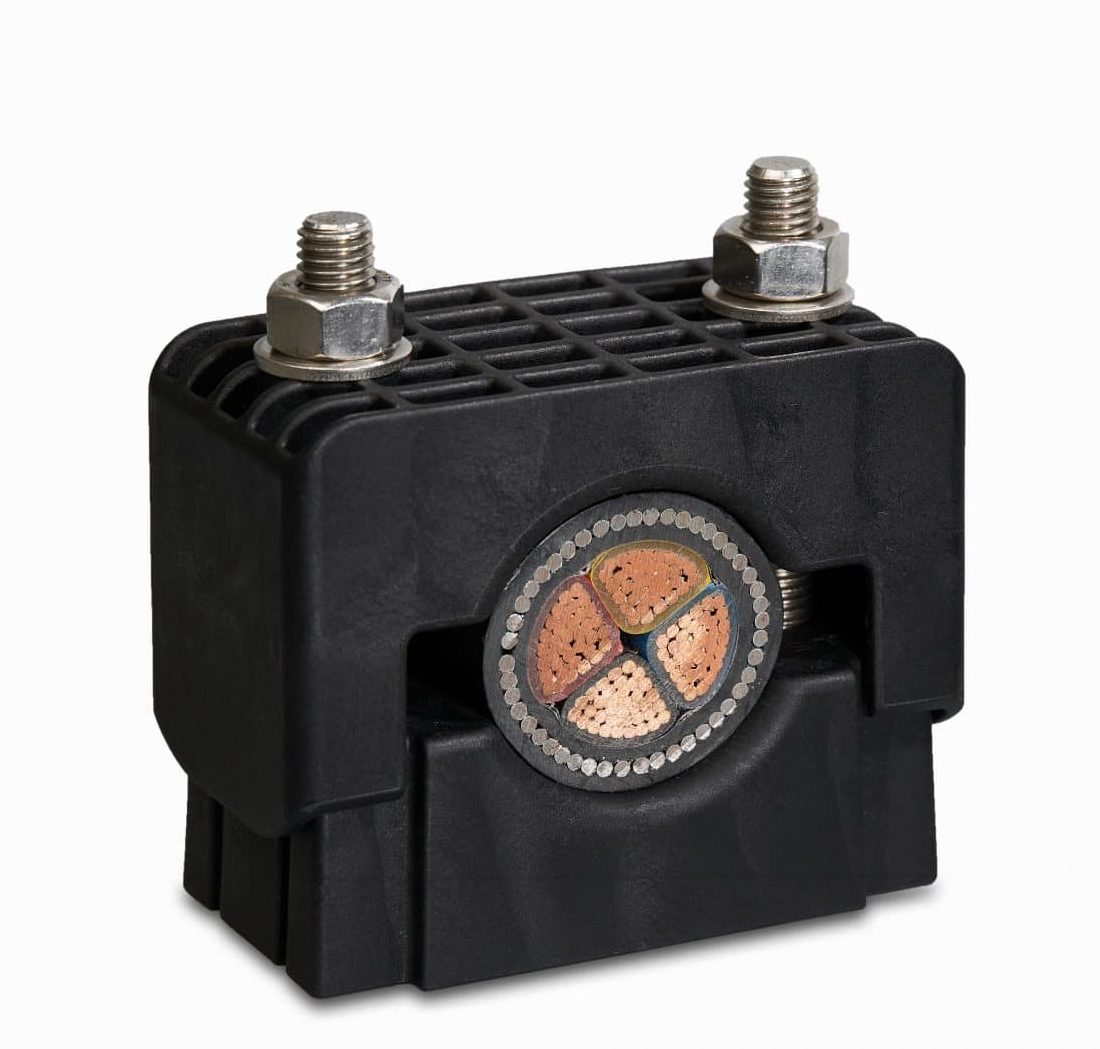

Standard duty clamp, manufactured in high strength glass reinforced polyamide (GRP), for single cables. The Ellis Solus clamp has been designed, developed, tested and manufactured in accordance with IEC61914 (Cable Cleats for Electrical Installations). The cable clamp is available in 3 sizes and is able to accommodate cables ranging from Ø 19 – Ø 75mm. Solus can also be stacked to allow new cable runs to be added quickly and easily. The material used to manufacture this product is a high strength heat stabilised, low smoke, zero halogen, glass reinforced polyamide. This gives the product an extremely long lifespan and is suitable for indoor and outdoor applications. Single or double bolt fixing options are available depending on the installation.

Thorne & Derrick International, based in the UK, stock the complete range of cable cleats and cable hangers manufactured by Ellis Patents including Single Hole cleats for short circuit retention and cable protection of LV (Low Voltage), MV (Medium Voltage) and HV (High Voltage) and mechanically tested in accordance to IEC 61914.

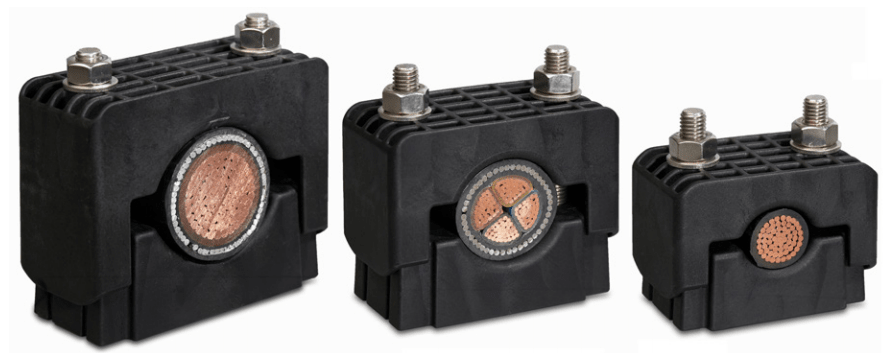

Ellis Patents Solus single cable clamps are high strength glass reinforced polyamide single cable cleats for cable diameters ranging from Ø 19-75mm – these 1 hole cleats come in 3 sizes with single or double bolt fixing options and are suitable for outdoor or indoor cable containment. Solus Cable Clamps

International Standard IEC 61914:2009

Ellis Patent cable cleats with international specifications are used to clamp and retain LV MV HV cables including 11kV and 33kV networks depending on short-circuit calculations according to IEC61914 calculations.

For cable installations where corrosion protection is required, including onshore and offshore substations or hazardous area locations, see our complete range of stainless steel cable cleats.

Ellis Patents Single Cable Clamps

Testing Information

Solus Clamps have been tested in line with the International Standard ‘Cable Cleats for Electrical Installations’ IEC 61914:2015. Typical results are detailed below, please note that these testing values are maximums and safety factors appropriate to your application should be used:

	Classification Clause IEC 61914	Units/Classification	Cable Clamp Test Data
	Classification Clause IEC 61914	Units/Classification	Double Fixing	Single Fixing
Cleat Type	6.1.2	Non-Metallic	–
Temp. for Permanent Application	6.2	°C	-16 to +120
Impact Rating	6.3.5	Very Heavy	Pass
Flame Propagation Test	10.0, 10.1	Application Time ≥ 30s	Pass (also UL94 V0 Compliant)
Axial Load Rating	6.4.3, 9.4	Newtons (N)	600N	1000N
Lateral Load Rating	6.4.2, 9.3	Newtons (N)	Vertical – 7000N Horizontal – 3000N	Vertical – 4500N Horizontal – 2000N
Resistance to Electromechanical Force (Short Circuit Testing)	6.4, 6.4.5, 9.5	Cleats at 300mm intervals (withstanding more than one short circuit)	129kA (Report No. PDL-21-085.02) Cable OD = Ø36mm Phase Spacing = 125mm	–
Note: The ‘with liner’ version has a lower rating to the standard version as follows 1. Temperature range of -60 to +85°C 2. Axial performance lower that standard version. Contact us for details

Solus Single Cable Clamps

Specification

Ellis Solus Single Cable Clamps – Dimensions

➡ The following selection table provides information to enable the specification or purchase of the correct Solus single cable clamp – contact Thorne & Derrick for further technical information, installation advice, samples or to place an order.

Ellis Solus Part Number	SL25-38GFN	SL36-52GFN	SL49-75GFN
Cable Range Min ∅ (mm)	25	36	49
Cable Range Max ∅ (mm)	38	52	75
Liner Size (mm)	3	3	3
Cable Range with Liner Min ∅ (mm)	19	30	43
Cable Range with Liner Max ∅ (mm)	32	46	69
Dimensions W (mm)	100	116	138
Dimensions H (mm)	80	95	124
Dimensions D (mm)	60	77	77
Dimensions A (mm)	24	24	26
Dimensions P (mm)	60	75	95
Dimensions ∅	M12	M12	M12
Weight (g)	290	370	493

Cable Cleats v Cable Ties

The Video produced by Ellis Patents provides compelling evidence of the need to ensure all cables are adequately supported and retained to cable containment to protect against the devastating effects of short circuit faults: 118kA Short Circuit Fault Current | 0.1 Seconds Duration | 480V Low Voltage Cables.
