Semi Conductive Heat Shrink For HV High Voltage Cable Joints & Terminations

Semi Conductive Heat Shrink Tube

11kV 33kV 52kV Heat Shrink

Cable Joints & Cable Terminations

Nexans GT5 is a semi-conductive heat shrink tube is used on PILC cable joints and MV/HV joints and cable terminations up to 52kV.

The conductive heatshrink tube, coloured black, is suitable for reconstructing the semicon insulation screen and other situations where conductivity is required on medium/high voltage power cable networks – a complete range of semicon screen removal jointing tools are available from stock manufactured by Alroc for the stripping of both easy-peel strippable and bonded type semicon screens.

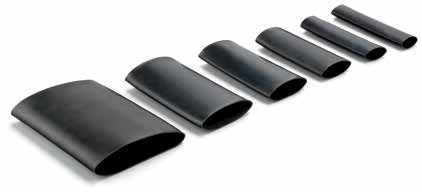

Semi Conductive Heat Shrink

Nexans GT5 Technical Specification

  • Heat Shrink Material : Crosslinked Polyolefin
  • Heat Shrink Colour : Black
  • Continuous Operating Temp : -40°C to +135°C
  • Minimum Shrink Temp : 125°C
  • Density : 1,0 g/cm³±10% ASTM D-1505 / ISO R1183
  • Tensile Strength : 20 n/mm² ASTM D-412 / ISO 37
  • Ultimate Elongation : 500% ASTM D-412 / ISO 37
  • Contents of Carbon Black : >10% ASTM 2671
  • Water Absorption : <0,4% DIN 53495 / ISO 92
  • Volume Resistivity : <20 ohm.cm IEC 93

➡ Nexans Cold Shrink Cable Joints (MV-HV 11kV 33kV)Nexans Cable Terminations (MV-HV 11kV 33kV)

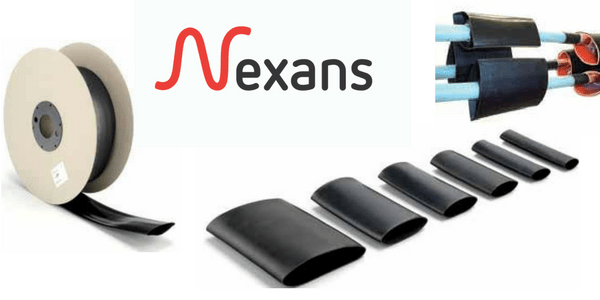

Semi Conductive Heat Shrink For HV High Voltage Joints Terminations

Nexans GT5 Selection Table

The following table enables the selection of the correct semi-conductive heat shrink tubing to enable the installation of medium/high voltage cables or terminations:

Nexans Part Reference Heat shrink Ø as supplied (mm) Heat shrink Ø after full recovery
(mm)
Wall thickness after
full recovery (mm)
Spool L
(mm)
Nr. spool/box
Nexans GT5-35 ≥ 44,5 ≤ 10,0 ≥ 3,0 30 6
Nexans GT5-50 ≥ 54,5 ≤ 14,0 ≥ 3,0 30 4
Nexans GT5-60 ≥ 67,5 ≤ 18,0 ≥ 3,0 30 4
Nexans GT5-80 ≥ 86,0 ≤ 20,0 ≥ 3,0 30 3
Nexans GT5-95 ≥ 102,5 ≤ 25,0 ≥ 3,0 30 2
Nexans GT5-140 ≥ 149,5 ≤ 34,0 ≥ 4,0 30 2
