Euromold Cable Jumpers

Euromold Cable Jumpers

pre-terminated cable leads

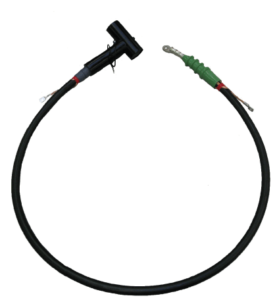

Cable Jumpers are prefabricated lengths of cable, on which a separable connector or a termination is installed at each end to permit connection to the MV HV electrical equipment, such as switchgear or transformer.

The MV HV cable leads are designed for use between electrical equipment, typically between transformers and switchgear.

Nexans Euromold will manufacture the cable jumpers to your own required specifications in conjunction with Thorne & Derrick.

The user is able to specify the type and length of MV HV cable as well as the voltage rating and type of cable accessories to suit the application.

Test Leads are prefabricated lengths of cable on which a separable connector and a termination is installed on each end. They are typically used to perform tests on electrical installations, transformers, motors.

Available up to 42kV

Nexans Euromold

  • 6/10 (12)kV
  • 6.35/11 (12)kV
  • 8.7/15 (17.5)kV
  • 12/20 (24)kV
  • 12.7/22 (24)kV
  • 18/30 (36)kV
  • 19/33 (36)kV
  • 20.8/36 (42)kV

pre-terminated cable leads

design

Pre-Terminated Leads Design

Pre-Terminated Leads Design



  1. First cable accessory chosen in the table shown below
  2. Second cable accessory chosen in the table shown below
  3. Cable length
  4. A screen wire length of 500mm with an earthing lug is standard. Other lengths are available upon request – Contact T&DEuromold Cable Jumpers

Testing

All Pre-Terminated leads manufactured by Nexans Euromold can be tested for AC withstand and partial discharge test upon request – contact us for more information.

Cable accessories

The accessories of Pre-Terminated leads can be installed on any desired cable, providing it can be sourced, especially short lengths of medium/high voltage cables.

pre-terminated cable leads

ordering information

Example

If a pre-terminated cable lead is needed with following requirements:

  • a 250A elbow connector for one cable end
  • a cable length of 4m – 22kV – 95sqmm aluminium – copper wire screened
  • an indoor cable termination for the other cable end

♦ The correct order code would be Nexans Euromold CJ-95Al/22kV-158LR-4m-AIN

Euromold Cable Jumpers Ordering Instructions

Nexans Euromold

selection Table for Medium & High Voltage Cables

CE1 or CE2 Cable Accessory Type Interface Type Cable Connector Material

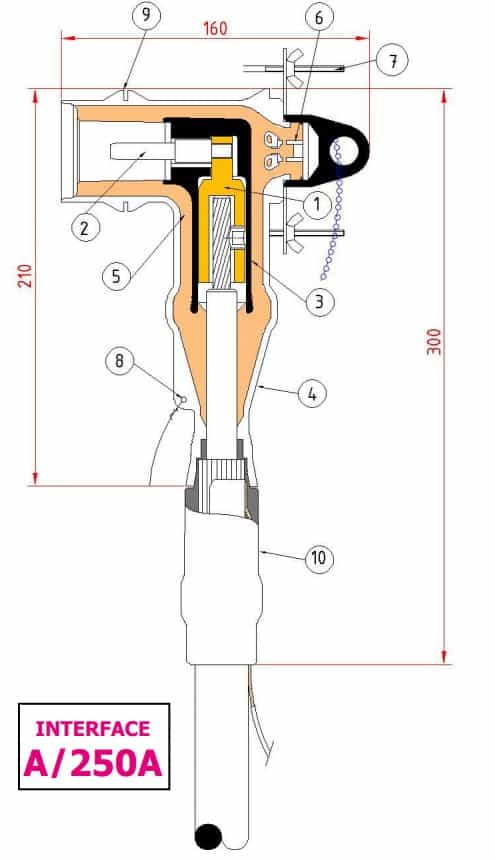

(K)158LR Elbow Connector A EPDM
(K)152SR Straight Connector A EPDM
(K)(M)400LR Elbow Connector B EPDM
(K)(M)400TE Tee Connector B EPDM
(K)(M)430TB Tee Connector C EPDM
(K)(M)(P)400TB Tee Connector C EPDM
(K)(M)(P)440TB Tee Connector C EPDM
(K)(M)434TB Tee Connector C EPDM
(K)400LB Elbow Connector D EPDM
(K)676LRA Tee Connector E EPDM
750LR Tee Connector E EPDM
775LR Tee Connector EPDM
AIN Indoor Termination Silicone
AFN Outdoor Termination Silicone
ITK Indoor Termination Silicone
OTK Outdoor Termination Silicone
SREI Outdoor Termination Heatshrink
SREF Indoor Termination Heatshrink
