The Nexans MONOe FCi heat shrink cable terminations are specifically designed to connect and terminate single core medium voltage polymeric cables with XLPE or EPR insulation and aluminium tape screen up to 42kV, including 11kV and 33kV systems.

MONO terminations are fully Tested & Approved to Cenelec HD 629.1 & IEC 60502-4 for connection applications, 16-1200sqmm up to Umax 42kV with various screen types (CWS Copper Wire Screen, CTS Copper Tape Screen and Aluminium Foil).

MONO manufactured by Nexans are a single component cable termination; the termination features an integrated stress control field and anti-tracking insulating tube which can withstand humidity, extreme temperatures, UV radiation and heavy polluted environments – the short tail length delivers a compact termination with reduced shrinkage and scope for potential Jointer error.

Thorne & Derrick hold extensive stocks of 11kV 33kV 66kV Joints & Terminations suitable for XLPE, PILC and EPR cables, in both heat shrink and cold shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and Export customers.

Terminations are compatible with the following International Cable Standards: IEC 60502-2, BS6622 (PVC), BS7835 (LSZH Low Smoke Zero Halogen), BS7870-4.10 (Including Triplex), DIN VDE 0276 Part 620 (N2XS2Y / N2XS(F)2Y / N2XS(FL)2Y) Cables in the following medium voltage:

6/10 (12)kV
12/20 (24)kV
18/30 (36)kV

Nexans MONO Cable Termination MV HV Cables

Short Tail Length & Superior Performance Termination

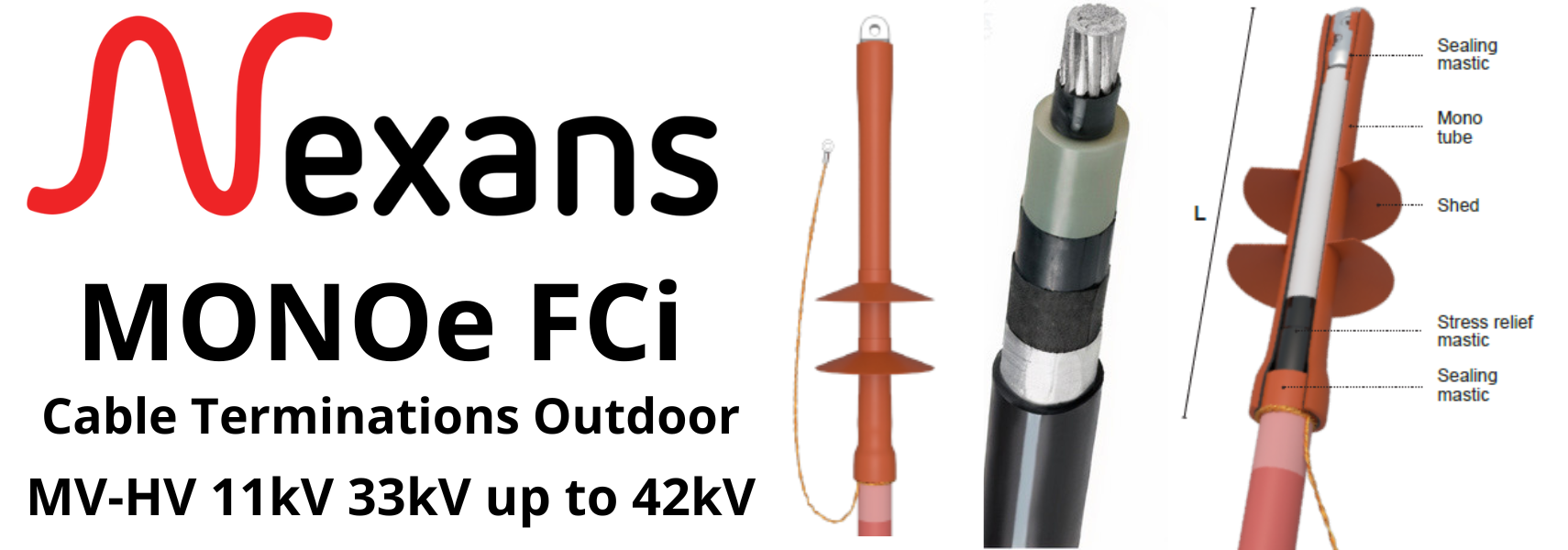

MONOe FCi outdoor Cable Terminations for Medium Voltages

Easy, quick to install, reducing cable termination installation time and errors

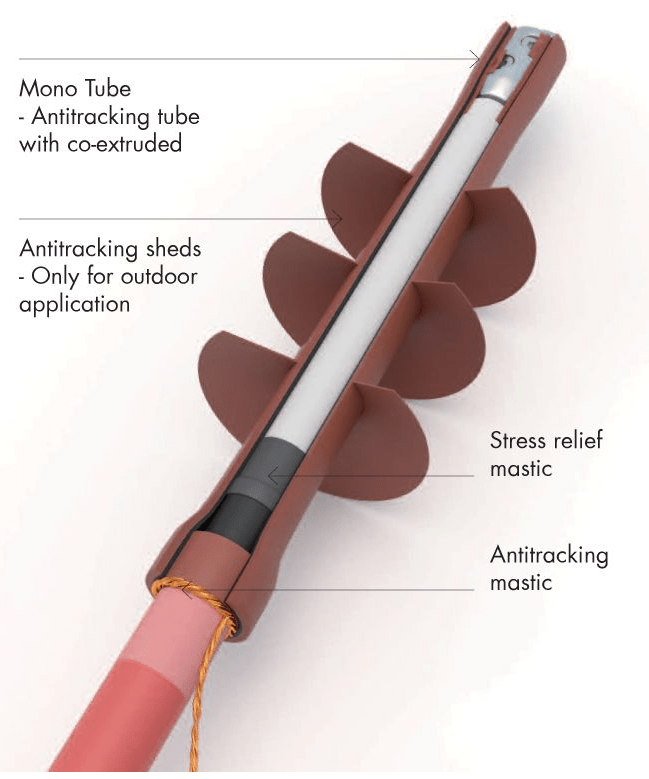

Termination kit consists of a stress control mastic pad, a co-extruded dual wall tube and red anti-tracking sealing mastic
Anti-tracking rain sheds are supplied to withstand outdoor environments
A cheese-rasp + earthing braid is included in the termination kit.
MONO design accommodates various conductor lugs including mechanical shearbolt “GPH” type cable lugs
Sealing is provided by the anti-tracking mastics applied over the cable lug barrel and onto the outer sheath of the medium voltage cable

Both Nexans MONOi (Indoor Termination) and MONOe (Outdoor Termination) contain sufficient material to terminate 3 single core cables i.e. 3 phase cable termination kits. WSK 2.0 type with “T” braid and roll force spring instead of cheese rasp available upon request.

➡ Should you require any technical support to enable the correct specification and selection of MV Terminations for medium voltage connection applications please do not hesitate to contact us.

Um (Kv)	Termination Type	Section (sqmm)	DOI Insulation (mm)	DOE Outer Sheath (mm)	Termination Length min (mm)
24kV	3x24MONOe1.95FCi	25-95	14-26	24-42	350
	3x24MONOe1.240FCi	70-240	18-34	30-44	350
	3x24MONOe1.300FCi	95-300	20-38	32-50	350
	3x24MONOe1.400FCi	185-400	25-40	36-52	350
	3x24MONOe1.630FCi	400-630	30-46	38-60	400
	3x24MONOe1.1000FCi	630-1000	36-56	44-64	400
	3x24MONOe1.1200FCi	1000-1200	46-60	52-66	450
36kV	3x36MONOe1.95FCi	25-95	20-32	30-44	450
	3x36MONOe1.240FCi	70-240	22-38	36-52	450
	3x36MONOe1.300FCi	95-300	24-42	38-54	450
	3x36MONOe1.400FCi	185-400	28-46	42-60	450
	3x36MONOe1.630FCi	400-630	32-52	44-66	500
	3x36MONOe1.1000FCi	630-1000	42-60	48-70	500
	3x36MONOe1.1200FCi	1000-1200	48-64	54-72	500
42kV	3x42MONOe1.95FCi	25-95	20-34	34-50	500
	3x42MONOe1.240FCi	70-240	26-42	38-54	500
	3x42MONOe1.300FCi	95-300	28-46	40-60	500
	3x42MONOe1.400FCi	185-400	32-48	42-64	550
	3x42MONOe1.630FCi	400-630	34-56	46-68	550
	3x42MONOe1.1000FCi	630-1000	44-62	50-74	550
	3x42MONOe1.1200FCi	1000-1200	50-66	56-76	550

Cable Termination Components

Cable Termination Components | For air insulated cable box applications, the Nexans MONO termination can be combined with Nexans FB Bushing Boots (Universal & Cold Applied) to fit most types of busbar connection or switchgear bushings. Ancillaries include Bolt-on Top-Hat style SWA | AWA Glands, Solderless Earth Kits for Copper Taped Screen Cables, Lugs (Crimp or Shearbolt Mechanical).
