Nexans MONOe3 CW | Heat Shrink MV Cable Terminations Outdoor

Thorne & Derrick | Distributed from Stock | Approved Supplier | UK & Export Sales

Cable Terminations

MV HV 11kV 33kV up to 42kV

The Nexans MONOe3 CW heat shrink cable terminations are specifically designed to connect and terminate armored three core medium voltage polymeric cables with XLPE or EPR insulation with Cu wire or tape screen up to 42kV, including 11kV and 33kV systems.

MONO terminations are fully Tested & Approved to Cenelec HD 629.1 & IEC 60502-4 for connection applications, 16-1200sqmm up to Umax 42kV with various screen types (CWS Copper Wire Screen, CTS Copper Tape Screen and Aluminium Foil).

MONO heat-shrinkable medium voltage terminations manufactured by Nexans features an integrated stress control field and anti-tracking insulating tube which can withstand humidity, extreme temperatures, UV radiation and heavy polluted environments – the short tail length delivers a compact termination with reduced shrinkage and scope for potential Jointer error.

Thorne & Derrick hold extensive stocks of 11kV 33kV 66kV Joints & Terminations suitable for XLPE, PILC and EPR cables, in both heat shrink and cold shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and Export customers.

Terminations are compatible with the following International Cable Standards: IEC 60502-2, BS6622 (PVC), BS7835 (LSZH Low Smoke Zero Halogen), BS7870-4.10 (Including Triplex), DIN VDE 0276 Part 620 (N2XS2Y / N2XS(F)2Y / N2XS(FL)2Y) Cables in the following medium voltage:

6/10 (12)kV
12/20 (24)kV
18/30 (36)kV

Compact | Reduced cable preparation length, reduced shrinking work to terminate the medium voltage cable and improved compatibility with compact MV Switchgear.

Short Tail Length & Superior Performance Termination

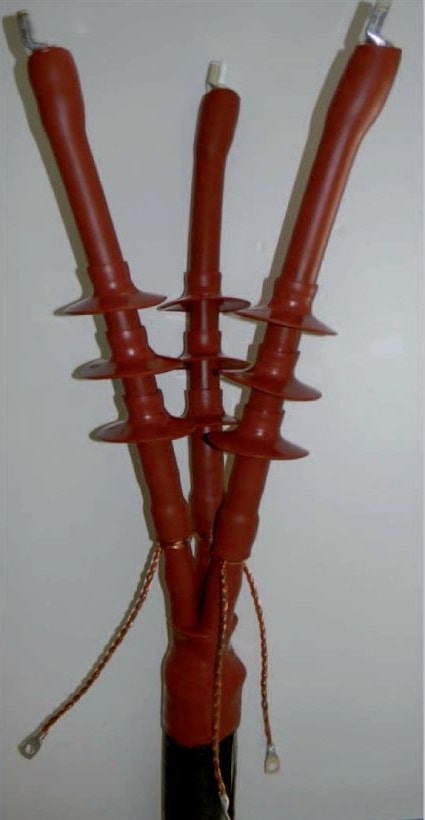

MONOE3 CW Outdoor Cable Terminations for Medium Voltages

Easy, quick to install, reducing cable termination installation time and errors
Termination kit consists of a stress control mastic pad, a co-extruded dual wall tube and red anti-tracking sealing mastic

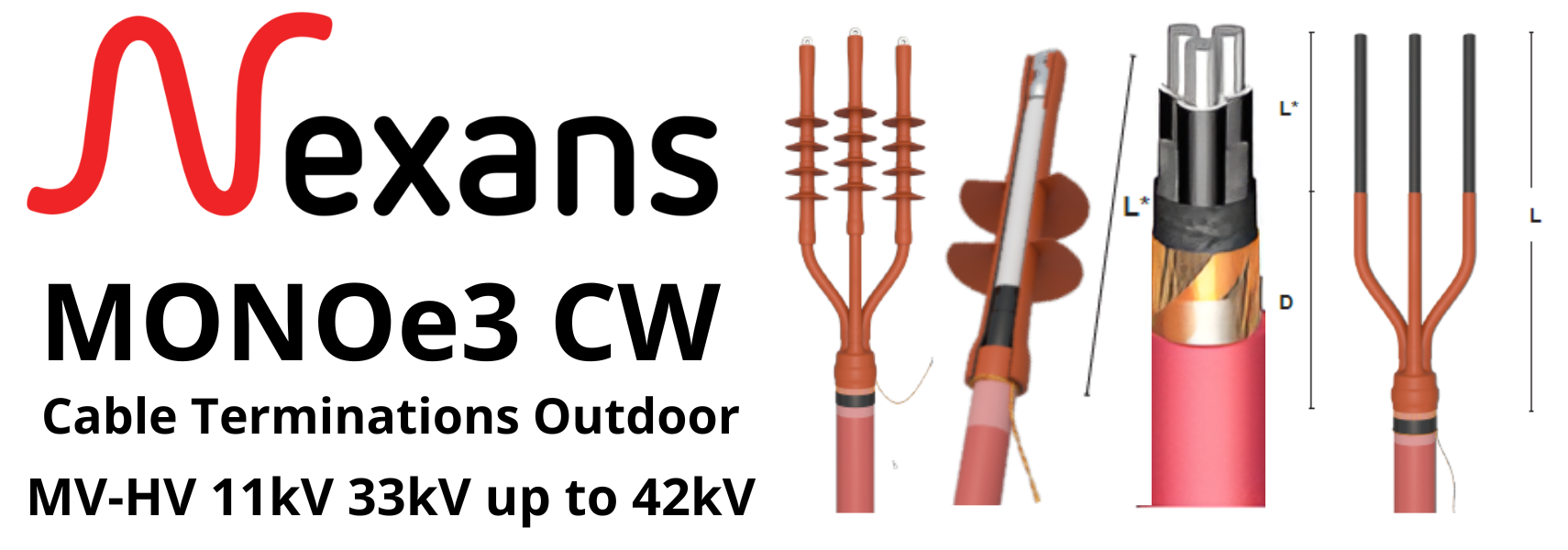

Red anti-tracking break-out and red anti-tracking tubes “GT2” with adjustable length “D” are included in the kit
Anti-tracking rain sheds are supplied to withstand outdoor environments
MONO design accommodates various conductor lugs including mechanical shearbolt “GPH” type cable lugs
Sealing is provided by the anti-tracking mastics applied over the cable lug barrel and onto the outer sheath of the medium voltage cable

Both Nexans MONOi (Indoor Termination) and MONOe (Outdoor Termination) contain sufficient material to terminate 3 single core cables i.e. 3 phase cable termination kits. Right angle or straight heat-shrinkable boots are available on request.

Cable Terminations | Medium & High Voltage Power Cables

Selection Table MONOe3 CW I Medium Voltage Cable Terminations from Nexans | Three Core Cables

➡ Should you require any technical support to enable the correct specification and selection of MV Terminations for medium voltage connection applications please do not hesitate to contact us.

Um (Kv)	Termination Type	Section (sqmm)	DOI Insulation (mm)	DOE Outer Sheath (mm)	Termination Length min (mm)
12kV	12MONOe3.95CW	25-95	12-20	38-56	690
	12MONOe3.240CW	70-240	16-30	46-72	690
	12MONOe3.300CW	95-300	18-32	48-82	690
	12MONOe3.400CW	185-400	22-36	58-84	690
24kV	24MONOe3.95CW	25-95	14-26	40-62	800
	24MONOe3.240CW	70-240	18-34	48-76	800
	24MONOe3.300CW	95-300	20-38	52-84	800
	24MONOe3.400CW	185-400	25-40	62-90	800
36kV	36MONOe3.95CW	25-95	20-32	58-76	1000
	36MONOe3.240CW	70-240	22-38	64-90	1000
	36MONOe3.300CW	95-300	24-42	68-94	1000
	36MONOe3.400CW	185-400	28-46	78-102	1000
42kV	42MONOe3.95CW	25-95	20-34	60-90	1100
	42MONOe3.240CW	70-240	26-42	66-110	1100
	42MONOe3.300CW	95-300	28-46	70-120	1100
	42MONOe3.400CW	185-400	32-48	80-130	1100

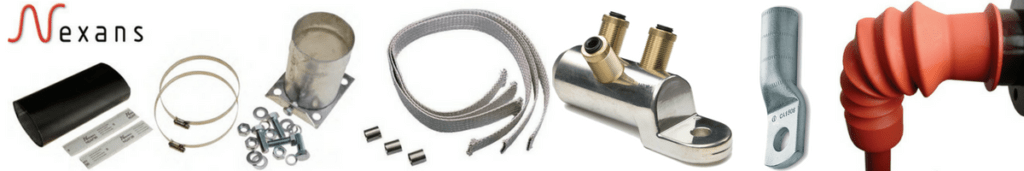

Cable Termination Components

Cable Termination Components | For air insulated cable box applications, the Nexans MONO termination can be combined with Nexans FB Bushing Boots (Universal & Cold Applied) to fit most types of busbar connection or switchgear bushings. Ancillaries include Bolt-on Top-Hat style SWA | AWA Glands, Solderless Earth Kits for Copper Taped Screen Cables, Lugs (Crimp or Shearbolt Mechanical).

➡ Watch Video | Nexans MONO MV Cable Terminations

Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages – including Euromold Connectors for energisation of medium/high voltage power cables.
