Nexans MONOi AI Heat Shrink MV Cable Terminations Indoor | Single Core Cable Polymeric Copper Wire Screen

Nexans MONOi AI Heat Shrink MV Cable Terminations Indoor | Single Core Cable Polymeric Copper Wire Screen

Thorne & Derrick | Distributed from Stock | Approved Supplier | UK & Export Sales

Cable Terminations

MV HV 11kV 33kV up to 42kV

The Nexans MONOi AI heat shrink cable terminations are specifically designed to connect and terminate single core medium voltage polymeric cables with XLPE or EPR insulation and copper wire screen up to 42kV, including 11kV and 33kV systems.

MONO terminations are fully Tested & Approved to Cenelec HD 629.1 & IEC 60502-4 for connection applications, 16-1200sqmm up to Umax 42kV with various screen types (CWS Copper Wire Screen, CTS Copper Tape Screen and Aluminium Foil).

MONO manufactured by Nexans are a single component cable termination; the termination features an integrated stress control field and anti-tracking insulating tube which can withstand humidity, extreme temperatures, UV radiation and heavy polluted environments – the short tail length delivers a compact termination with reduced shrinkage and scope for potential Jointer error.

Thorne & Derrick hold extensive stocks of 11kV 33kV 66kV Joints & Terminations suitable for XLPE, PILC and EPR cables, in both heat shrink and cold shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and Export customers.

Terminations are compatible with the following International Cable Standards: IEC 60502-2, BS6622 (PVC), BS7835 (LSZH Low Smoke Zero Halogen), BS7870-4.10 (Including Triplex), DIN VDE 0276 Part 620 (N2XS2Y / N2XS(F)2Y / N2XS(FL)2Y) Cables in the following medium voltage:

  • 6/10 (12)kV
  • 12/20 (24)kV
  • 18/30 (36)kV

Compact | Reduced cable preparation length, reduced shrinking work to terminate the medium voltage cable and improved compatibility with compact MV Switchgear.

Nexans MONO Cable Termination

Short Tail Length & Superior Performance Termination

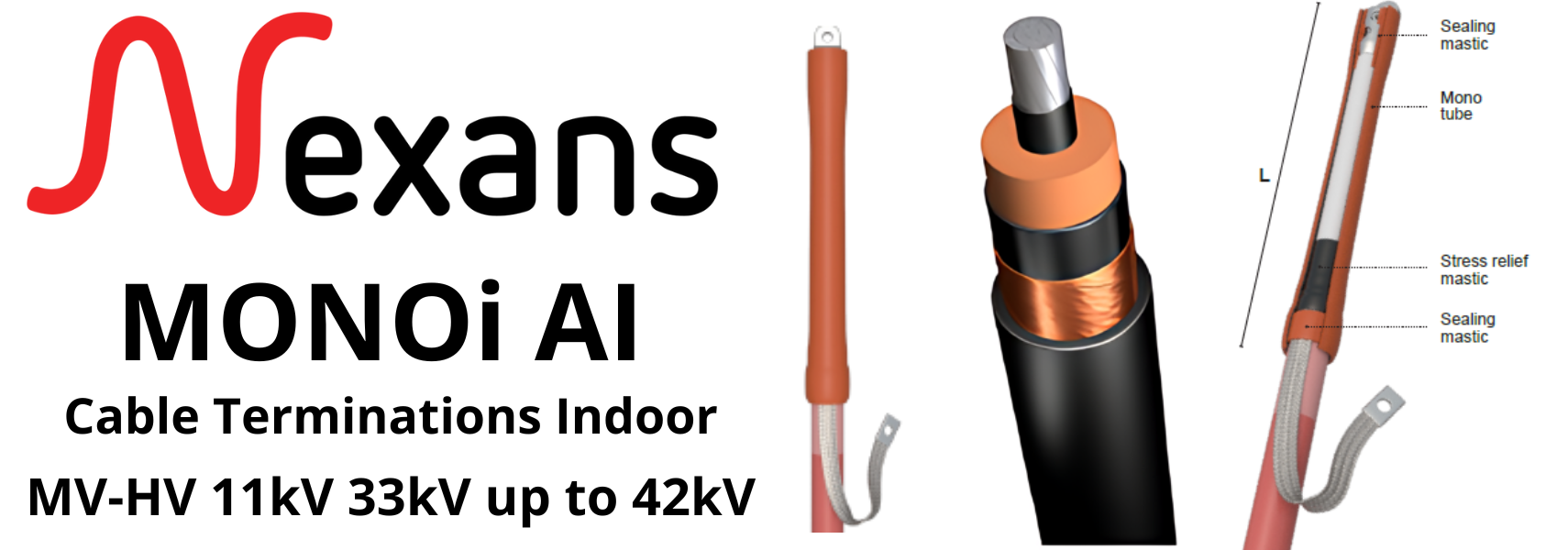

MONOi AI Indoor Cable Terminations for Medium Voltages

  • Easy, quick to install, reducing cable termination installation time and errors
  • Termination kit consists of a stress control mastic pad, a co-extruded dual wall tube and red anti-tracking sealing mastic
  • A solderless roll force spring and an earthing braid is included in the kit
  • MONO design accommodates various conductor lugs including mechanical shearbolt “GPH” type cable lugs
  • Sealing is provided by the anti-tracking mastics applied over the cable lug barrel and onto the outer sheath of the medium voltage cable

Both Nexans MONOi (Indoor Termination) and MONOe (Outdoor Termination) contain sufficient material to terminate 3 single core cables i.e. 3 phase cable termination kits.

Cable Terminations

Cable Terminations | Medium & High Voltage Power Cables

Selection Table MONOi AI Medium Voltage Cable Terminations from Nexans | Single Core Cables

➡ Should you require any technical support to enable the correct specification and selection of MV Terminations for medium voltage connection applications please do not hesitate to contact us.

Um (Kv) Termination Type Section (sqmm) DOI Insulation (mm) DOE Outer Sheath (mm) Termination Length min (mm)
12kV 3x12MONOi1.95Ai 25-95 12-20 20-34 300
3x12MONOi1.240Ai 70-240 16-30 24-40 300
3x12MONOi1.300Ai 95-300 18-32 26-44 300
3x12MONOi1.400Ai 185-400 22-36 28-48 350
3x12MONOi1.630Ai 400-630 26-42 36-54 350
3x12MONOi1.1000Ai 630-1000 34-52 42-58 400
3x12MONOi1.1200Ai 1000-1200 44-58 48-64 400
24kV 3x24MONOi1.95Ai 25-95 14-26 24-42 350
3x24MONOi1.240Ai 70-240 18-34 30-44 350
3x24MONOi1.300Ai 95-300 20-38 32-50 350
3x24MONOi1.400Ai 185-400 25-40 36-52 350
3x24MONOi1.630Ai 400-630 30-46 38-60 400
3x24MONOi1.1000Ai 630-1000 36-56 44-64 400
3x24MONOi1.1200Ai 1000-1200 46-60 52-66 450
36kV 3x36MONOi1.95Ai 25-95 20-32 30-44 450
3x36MONOi1.240Ai 70-240 22-38 36-52 450
3x36MONOi1.300Ai 95-300 24-42 38-54 450
3x36MONOi1.400Ai 185-400 28-46 42-60 450
3x36MONOi1.630Ai 400-630 32-52 44-66 500
3x36MONOi1.1000Ai 630-1000 42-60 48-70 500
3x36MONOi1.1200Ai 1000-1200 48-64 54-72 500
42kV 3x42MONOi1.95Ai 25-95 20-34 34-50 500
3x42MONOi1.240Ai 70-240 26-42 38-54 500
3x42MONOi1.300Ai 95-300 28-46 40-60 500
3x42MONOi1.400Ai 185-400 32-48 42-64 550
3x42MONOi1.630Ai 400-630 34-56 46-68 550
3x42MONOi1.1000Ai 630-1000 44-62 50-74 550
3x42MONOi1.1200Ai 1000-1200 50-66 56-76 550

Cable Termination Components

Cable Termination Components | For air insulated cable box applications, the Nexans MONO termination can be combined with Nexans FB Bushing Boots (Universal & Cold Applied) to fit most types of busbar connection or switchgear bushings. Ancillaries include Bolt-on Top-Hat style SWA | AWA Glands, Solderless Earth Kits for Copper Taped Screen Cables, Lugs (Crimp or Shearbolt Mechanical).

➡ Watch Video | Nexans MONO MV Cable Terminations

Nexans Joints Terminations Connectors

Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages – including Euromold Connectors for energisation of medium/high voltage power cables.

Cable Innovation Tools & Accessories for Low & High Voltage Power Systems | THORNE & DERRICK are Specialist Distributors of LV HV Cable Jointing, Earthing, Substation & Electrical Eqpt up to 66kV – this includes the most extensive range of Ex Stock Innovation Tooling to facilitate safe and reliable preparation, termination and installation of cables.
