Roxtec CF 16 EMC cable transit frames are a compact frame with built-in compression – the Roxtec frame is suitable for installation also around existing multiple or single pre-routed cables and pipes as well as for retrofit.

Roxtec rectangular cable transit frames are used to provide a reliable cable sealing ensuring safety, efficiency and long-term operational reliability – Roxtec cable seals protect against fire, gas, water, dusts, pests, blast load and electromagnetic interference.

➡ Visit Cable Transits to view the complete range of sealing systems for cable and pipe entries on cabinets, switchgear, electrical enclosures and substations (LV 11kV 33kV 66kV 132kV) – see Round Cable Seals for sealing round type cable ducts and pipe entries.

Roxtec CF 16 EMC Cable Transit Frame

Roxtec CF 16 EMC cable transit frames are available in power-coated mild steel or stainless steel AISI 304.

Installing Roxtec CF 16 EMC Cable Transit Frames

Contact T&D should you require support on the installation of Roxtec CF 16 EMC cable transit frames:

Roxtec CF 16 EMC Cable Transit Frame

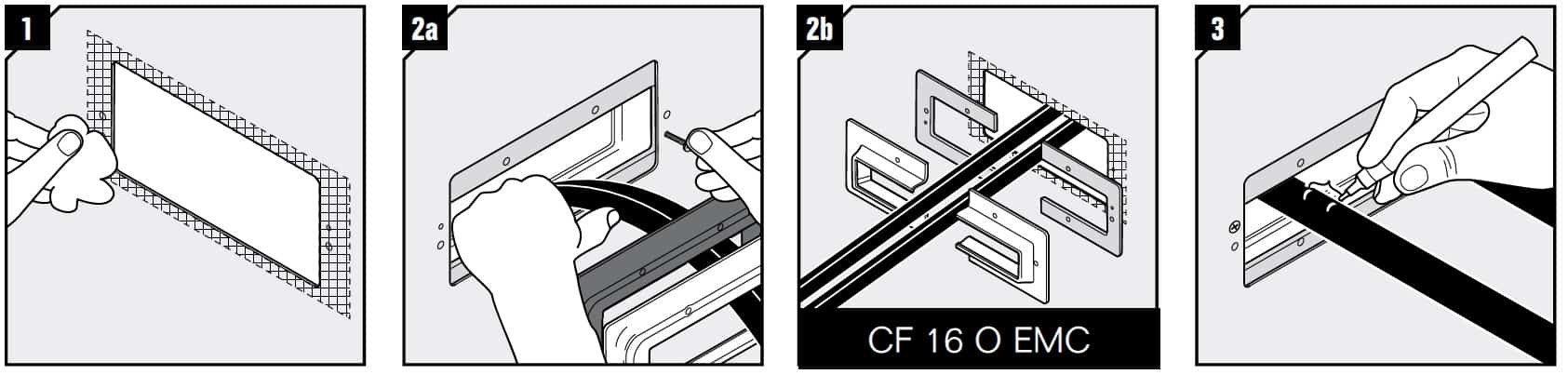

  • 1. Ensure good electric conductivity between the EMC plate and the structure. Clean the surface around the opening from inside and remove paint if necessary.
  • 2a. Feed the cable through the compression rubber and front plate. Install the back plate and the EMC plate inside the cabinet.
  • 2b. Install the back plate and the EMC plate around the cables inside the cabinet.
  • 3. On the cable, mark where to remove outer jacket and armor (min 25 mm).

Roxtec CF 16 EMC Cable Transit Frame

  • 4. Remove the outer jacket to uncover the conductive surface. Remove any protection tape or plastic.

Roxtec CF 16 EMC Cable Transit Frame

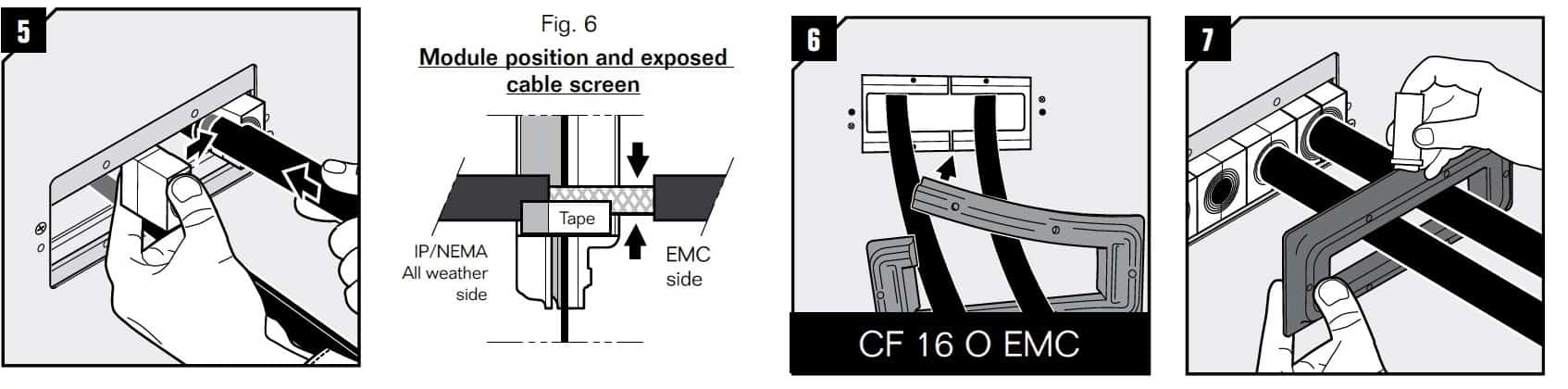

  • 5. Insert the Roxtec modules from the outside of the cabinet.
  • Fig 6. Cable and module position in the frame. Cable shall be installed so that eventual extra exposed cable screen runs into the cabinet.
  • 6. Fit the compression gasket around the cables by using the pre-opened long side.
  • 7. Thoroughly lubricate the compression rubber on both outside and inside surfaces with Roxtec Lubricant.

Roxtec CF 16 EMC Cable Transit Frame

  • 8. Position the compression rubber on the Roxtec sealing modules.
  • 9. Position the front plate on the compression rubber.
  • 10. Tighten the torx screws alternately when compression rubber is in place. Always start with the short sides. Recommended torque 8-10 Nm.
