Roxtec G Welded Ex Cable Transit Frame

Roxtec G Welded Ex Cable Transit Frame

Sealing Cables & Cable Ducts

Roxtec G Welded Ex cable transit frames are a metal frame with a flange available with a single opening or in combinations with several openings in width and/or height – the Roxtec frame is suitable for installation also around existing multiple or single pre-terminated cables and pipes in one opening. Roxtec G Welded Ex cable transit frames are approved for use in potentially explosive atmospheres and hazardous locations.

Roxtec rectangular cable transit frames are used to provide a reliable cable sealing ensuring safety, efficiency and long-term operational reliability – Roxtec cable seals protect against fire, gas, water, dusts, pests, blast load and electromagnetic interference.

➡ Visit Cable Transits to view the complete range of sealing systems for cable and pipe entries on cabinets, switchgear, electrical enclosures and substations (LV 11kV 33kV 66kV 132kV) – see Round Cable Seals for sealing round type cable ducts and pipe entries.

Installing Roxtec G Welded Ex Cable Transit Frames

Contact T&D should you require support on the installation of Roxtec G Welded Ex cable transit frames:

Roxtec G Welded Ex Cable Transit Frame

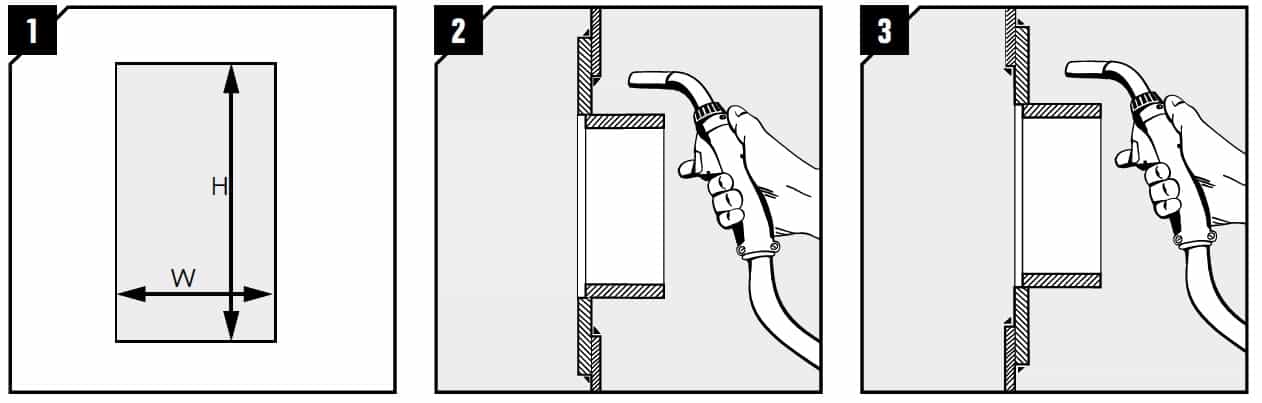

  • 1. Mark a rectangular opening according to frame type.
  • 2. Weld the frame to the cabinet/wall.
  • 3. Alternative frame installation
Sealing Cables Ducts

Sealing Cable Ducts With Roxtec – cable sealing modules consist of two halves with removable layers and a centre core which is removed to permit cable or pipe installation in medium/high voltage substations, hazardous areas and electrical infrastructure
