Roxtec CF 8/32 Cable Transit Frame

Roxtec CF 8/32 Cable Transit Frame

Sealing Cables & Cable Ducts

Roxtec CF 8/32 cable transit frames are constructed from cast aluminium – the Roxtec frame is suitable for installation also around existing multiple or single pre-terminated cables and pipes in one opening.

Roxtec rectangular cable transit frames are used to provide a reliable cable sealing ensuring safety, efficiency and long-term operational reliability – Roxtec cable seals protect against fire, gas, water, dusts, pests, blast load and electromagnetic interference.

➡ Visit Cable Transits to view the complete range of sealing systems for cable and pipe entries on cabinets, switchgear, electrical enclosures and substations (LV 11kV 33kV 66kV 132kV) – see Round Cable Seals for sealing round type cable ducts and pipe entries.

Roxtec CF 8 32 Cable Transit Frame

Roxtec CF 8/32 cable transit frames have an integrated compression unit within the frame and are supplied as ready made kits.

Installing Roxtec CF 8/32 Cable Transit Frames

Contact T&D should you require support on the installation of Roxtec CF 8/32 cable transit frames:

Roxtec CF 8/32 Cable Transit Frame

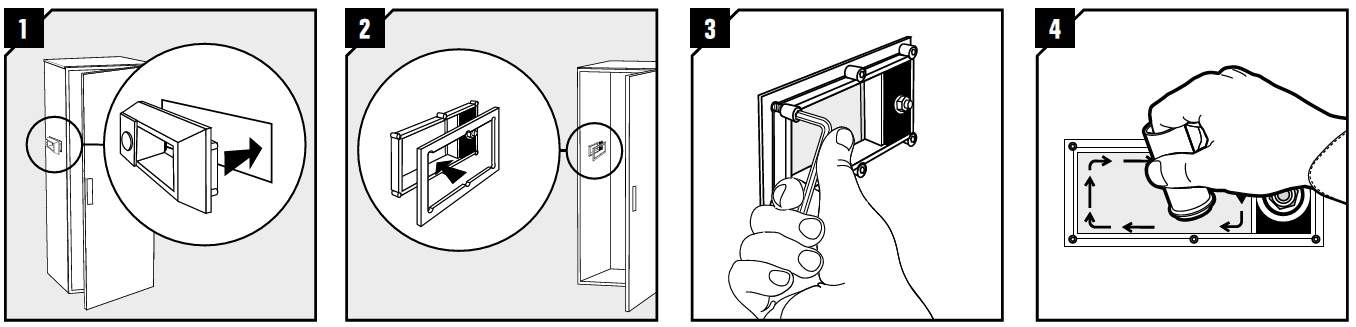

  • 1. Insert the CF frame from the outside
  • 2. Insert the counter frame from the inside.
  • 3. Fasten the hexagon nuts on the backside.
  • 4. Lubricate the inside surfaces of the frame with Roxtec Lubricant, especially into the corners.

Roxtec CF 8/32 Cable Transit Frame

  • 5. Insert the cables/pipes through the frame.
  • 6. Adapt modules which are to hold cables or pipes by peeling off layers until you reach the gap seen in pic. 7. The halves may not differ by more than one layer.
  • 7. Achieve a 0.1-1.0 mm gap between the two halves when held against the cable/pipe.
  • 8. Lubricate all modules for the frame thoroughly, both the inside and the outside surfaces.

Roxtec CF 8/32 Cable Transit Frame

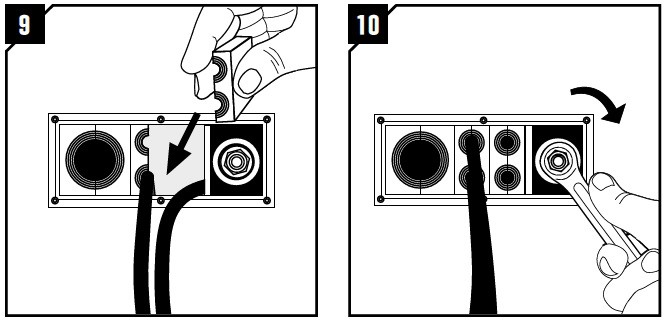

  • 9. Insert the modules according to your installation plan (transit plan). Start with the largest modules.
  • 10. Tighten the compression unit to seal the frame. Recommended torque 8-12 Nm.
Sealing Cables Ducts

Sealing Cable Ducts With Roxtec – cable sealing modules consist of two halves with removable layers and a centre core which is removed to permit cable or pipe installation in medium/high voltage substations, hazardous areas and electrical infrastructure

Roxtec Cable Transit Frames

Cable & Duct Sealing Transit Frames – T&D Approved Roxtec Distributor
