NEW Ripley Stripping Tools Improve Safety And Reliability
IMPROVE SAFETY AND RELIABILITY
Cable Stripping Tools

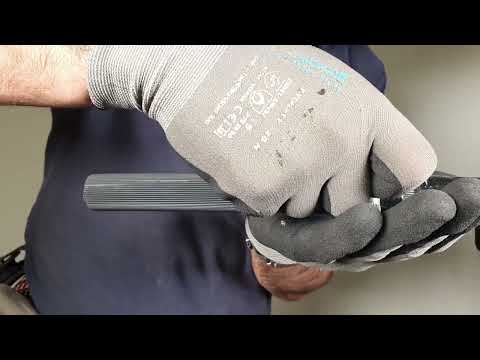

The following blog has been republished alongside the below video from Utility Service Agency, where they demo their favourite Utility Tool® tools for improving safety and reliability during cable preparation.
“What I like about this tool is that it’s very easy to see your blade when you’re doing your chamfer in the field.”
Improve reliability and safety at the same time; take the knife out of your hand and put the Ripley Tools in your hand.
Utility Tool from Ripley offer two by two and four by four cable strippers with bushings. The bushings on each side are specifically designed for the conductor sizes you need. “Take about a twelve to 14 inch cut of all those sizes, and send them off to Ripley tools to get your specifically sized bushing.”
“To use these tools, just run it down to your spot, I have my hand as a stopper. Perfect cut. No scoring. Safe. Good to go.”
For those that need more adjustability on the system, the WS 71 and WS 72 Series provides mid span. Just tighten it down and again, run it right down. If you want to take the WS 71 and 72 and make them into one tool, take the US07-7000.
This is new tool from Ripley is capable of doing end strips and also your midspan strips all in one tool. “We used to have two tools for your chamfering. Now we have one tool.”
We also have a US10 7000 which performs a 30 degree chamfer, and then we have a US10 7001 which performs a 45 degree chamfer. See below for further product specification.
US07 Series
Adjustable 600-1000V Secondary Cable Stripper
Introducing the new US07 Adjustable Cable Stripper that quickly and easily end strips or midspan strips cable insulation with no conductor damage on 8 to 1000 kcmil secondary cables. The tool utilizes a size adjustment clamping system to swiftly adjust and lock onto the insulation. Its compact, low friction, thermoplastic, impact-resistant polymer v-jaw and body provides a stable and precise clamping platform in any space.
Equipped with safe, recessed blade to prevent potential injury & blade damage
Quickly adjusts to suit THHN, XHHW & USE secondary cables with 0.3″ to 1.375″ (7.6 mm to 35 mm) cable diameters, eliminating the need for bushings
Easily adjusts with detent actuated knob & fine adjustment knob to match insulation thickness for fast stripping without conductor damage
Features a replaceable, machined & ground tool steel blade
Combines the end & mid-span strip performance of the UtilityTool® WS 71 & WS 72 with added features, stability & cable sizes
Durable bronze bushings provides longevity
US10 Series
URD Cable Insulation Chamfering Tool
The new innovative US10 Cable Insulation Chamfering Tool utilizes a size adjustment clamping system to quickly and easily adjust and lock onto the insulation. Its compact, low friction, thermoplastic V-jaw construction and PTFE-coated aluminium frame provides a stable and precise clamping platform in any space.
Easily adjusts to suit XLPE & EPR insulation materials on 0.5″ to 2.36″ (12.7 mm to 60 mm) cable diameters
30 degree or 45 degree angle bevel models perform with a factory-set chamfer depth of 0.075″ (1.905 mm), adjustable from 0″ to 0.150″ (0 mm to 3.81 mm); 15-35 kV
Equipped with safe, recessed blade to prevent potential injury & blade damage
Features a replaceable, machined & ground tool steel blade
See our complete range of Jointing Tools for the preparation and stripping of LV MV HV cable prior to the installation of joints, terminations and connectors.
Thorne & Derrick International are specialist distributors of LV, MV & HV Cable Installation, Jointing, Duct Sealing, Substation & Electrical Equipment – servicing UK and global businesses involved in cable installations, cable jointing, substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV.
PICOUP 250 Hydraulic Spiking and Cutting Tool | Stocked in the UK by Thorne & Derrick | Cable Spikers
Hydraulic Cable Spiking & Cutting Tools
Spiking Cable | Check Voltage Absence on LV & HV Power Cables
The PICOUP 250and PICOUP 400 2 in 1 hydraulic cable spiking and cable cutting tools are used to check for and ensure the absence of voltage on LV MV HV underground power cables.
After the cable spiking process is complete, these PICOUP tools supplied by Thorne & Derrick can also be used to cut the cable. These tools offer total security to the user during application according to NFC 18510 standards.
Cable Spiking Tool Features
2 actions combined into one single tool (spiking and cutting)
Enables the user to limit any resulting short circuit to a single-phase / ground fault when spiking multi-core cables. This cause any protective devices to trip before a 2 or 3 phases fault can be created
In the event of spiking a live cable, the spiking blade can be replaced easily (minimising cost impact)
No physical connection between the tool and the user
Damage to infrastructure is minimised when spiking as a single phase to earth fault is created using a dedicated, local 70mm² copper earthing cable
Cutting failure sensor
Indication on the remote at the end of cutting operation
Hydraulic over-pressure safety valve
Battery charge status indicator
Prevents the start of cutting if the battery is low
MOS INDUSTRIE : 20 years of expertise
PICOUP 250 Hydraulic Spiking & Cutting Tool
The PICOUP 250 hydraulic spiking and cutting tool is supplied with flexible copper cable and earthing rod, two 24V batteries and quick charger, blade removal tool, 1 spare spike, two 2m straps for gallery work, a flash protection mat, a heavy duty waterproof case with carrying strap and laminated operating instructions.
Part Code
PICOUP 250
Manufacturer
Mos Industrie
Description
Safety hydraulic cable spiking and cutting tool
Cutting Capacity
ø 100 mm
Metal Armour
all except round wires
Maximum Section
3 x 240mm² copper
Cutting Force
13 000 kg
Autonomy
20 cuts
Factory Tests
10,000 cycles
Dimensions L x W x H
628 x 165 x 328 mm
Weight
14 kg
Flash Protective Mat
0.7 m x 1m
Packaging External Dimensions L x W x H
687 x 528 x 376 mm
Total Weight (including packaging)
35 kg
PICOUP 400 Hydraulic Cable Spiking & Cutting Tool
PICOUP 400 Hydraulic Spiking & Cutting Tool
The PICOUP 400 hydraulic cable spiking and cable cutting tool is supplied with flexible copper cable and earthing rod, two 24V batteries and quick charger, blade removal tool, 1 spare spike, two 2m straps for gallery work, a flash protection mat, a heavy duty waterproof case with carrying strap and laminated operating instructions.
Part Code
PICOUP 400
Manufacturer
Mos Industrie
Description
Safety cable spiker and cutter
Cutting Capacity
ø 140 mm
Metal Armour
Round wires 4mm
Cutting Force
21 000 kg
Autonomy
20 cuts
Factory Tests
10,000 cycles
Dimensions L x W x H
628 x 165 x 328 mm
Weight
20 kg
Flash Protective Mat
0.7 m x 1m
Packaging External Dimensions L x W x H
687 x 528 x 376 mm
Total Weight (including packaging)
42 kg
PB WEIR – DISTRIBUTORS, STOCKISTS & SUPPLIERS
PB Weir Substation Earthing and Transmission Line Earthing Equipment include line end clamps, earth end clamps, portable earthing leads and operating poles for high voltage substations, overhead power line and transmission line applications – voltages include 11kV, 33kV, 66kV, 132kV up to 400kV.
Thorne & Derrick provide competitive prices and fast delivery from stock for the complete range of PB Weir substation earthing and transmission line earthing equipment.
In 2018 In 2018 PB Weir joined the Novarc group and re-branded as PBwel and now, through the ESP group of companies, we are able to supply, support and maintain a comprehensive range of Electrical Safety Equipmentwhich includes: Earthing, Insulated Tools, Arc Flash Protection, Personal Voltage Detection Helmets, Insulating Gloves, Voltage Detection, Operating Poles & Lock-Out Tag-out.
ALADIN| Improved electrical safety levels for workers operating near live equipment
Thorne & Derrick International are specialist distributors of LV, MV & HV Cable Installation, Jointing, Duct Sealing, Substation & Electrical Equipment – servicing UK and global businesses involved in cable installations, cable jointing, substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV.
Ripley Tools is proud to announce the new Miller® MA03 Advanced Fiber Optic Preparation Kits, packed with the latest and most trusted Miller® tools and essential for any fiber cable technician.
The professional-grade, heavy-duty kits are available with either a convenient hands-free tool pouch or a durable molded case with precision cut EVA foam to keep fiber tools organized and protected.
Inside are award-winning, patent-pending Miller® tools, including the ACS+ Slitterfor Armored Cable, MB04 FTTX Drop Cable Slitter, and the MSAT® 16 Mid-Span Access Tool with 16 unique cable diameter settings. The preparation kits would not be complete without a pair of precision Miller® fiber strippers, the KS-1 Kevlar® Shears, a compact FTS Buffer Tube Scorer, and a CA Series Cable Grip Tool.
The customized Miller® storage pouch is a must for the professional with its durable 1680D high-density oxford fabric construction for added wear and water resistance.
With 13 dedicated pockets and a large internal space, there’s room to keep all the essential Miller® tools and more. It features an ergonomic carry handle and a removable long adjustable strap that doubles as a shoulder or waist strap for hands-free use. The zippered lid keeps tools protected from debris, and a heavy-duty snap keeps the top open for quick access.
For the technicians that prefer a hard-sided tool case, the new double-walled molded case is a durable and lightweight option. Its EVA foam inserts are cut to fit each of the included Miller® products, protecting the precision tools from damage and saving time looking for tools. Robust, snap-fit latches keep the kit securely closed, and the molded ergonomic handle fits comfortably in either hand.
For decades, Ripley Tools has collaborated with cable manufacturers and professional installers to design and manufacture some of the industry’s most trusted tools under the Miller® brand name.
“Ripley has been a leading provider of custom kits to telecom operator and power utility professionals for decades,” says John Jutila, CEO Ripley Tools. Jutila adds, “With advice from our current customers, we tailored a quality Miller tool assortment and custom-built case to offer to all optical cable technicians at a competitive price as a standardized field kit covering a wide variety of installation applications.”
The Miller® MA03 Advanced Fiber Optic Tool Kits are just two of the many solutions launched by Ripley Labs, the global research development and innovation center at Ripley Tools.
Miller is a Ripley brand – the full product range of high quality LV-HV cable jointing tools and wire preparation for MV-HV Power Cables, Transmission & Distribution, CATV, Electrical and Telecommunications includes Miller, Utility Tool and Cablematic.
THORNE & DERRICK
Thorne & Derrick are national distributors of LV, MV & HV Cable Installation, Jointing, Substation & Electrical Equipment – servicing businesses involved in cabling, jointing, substation, earthing, overhead line and electrical construction at LV, 11kV, 33kV, 66kV and EHV. Supplying a complete range of power cable accessories to support the installation and maintenance of low/medium and high voltage power and fibre cable systems:
Uploaded by Chris Dodds - Thorne & Derrick Sales & Marketing Manager
Cembre HT131-C
Thorne & Derrick International are Main UK Stockists and Suppliers of Cembre tools including crimping and cutting types for all constructions of LV MV HV cable including medium/high voltage 11kV/33kV power cables.
The following short article provides useful information about maintaining optimum performance of the Cembre model HT131-C crimping tool.
Cembre HT131-C crimping tool is lightweight and ideal for LV-HV cable jointing, crimping, splicing and terminating applications.
The hydraulic crimping tool features spring loaded handles allowing the Cembre die sets to be advanced with one hand – the other hand free to position the electrical connector or cable lugs prior to crimping.
For competitive prices, stock availability and technical advice about the Cembre HT131-C tool please do not hesitate to contact us.
Maintaining Crimping Tool Optimum Performance – Model Cembre HT131-C
The Cembre HT131-C hydraulic crimping tool is robust and requires very little daily maintenance – ensuring you follow the instructions below will help to maintain the optimum performance of the tool:
Accurate Crimping Tool Cleaning
Dust, sand and dirt are a danger for any hydraulic device. It is essential that after every use the crimping tool should be wiped with a clean cloth removing all residue paying special attention to pivots and moveable joints
Tool Storage
Cembre HT131-C is supplied with VAL P3 plastic case.
When not in use, the HT131-C tool should be stored and transported in the plastic case to prevent damage.
The plastic case (Type VAL P3) has the following dimensions 620x380x135mm (height) and weighs 2.5 kg.
Air in the hydraulic circuit may affect the performance of the crimping tool. For example no lower die advancement, slow advancement of the lower die and lower die pulsating would all cause issues. If this is the case proceed as follows:
To Purge Air Bubbles From Hydraulic Circuit
Fig 4 – HT131-C Crimping Tool Position For Maintenance Operations
a – Hold tool upright in a vice with handles open (Fig 4)
b – By an hexagonal 2.5 mm key, remove screw (65) and main handle (04) to expose oil reservoir (03).
c – Remove reservoir cap (01).
d – Operate three or four times the moveable handle (56), to advance the ram (28).
e – Depress pressure release pin (73) until ram is fully retracted.
f – Repeat points (d – e) at least five times,to ensure all air bubbles in the hydraulic circuit are purged into the reservoir.
g – If the oil level is low top as described below
h – Remove all air from reservoir and fit cap (01).
i – Assemble main handle (04), and holding screw (65).
If the tool continues to malfunction return the tool for service.
Oil Top Up
Every six months check the oil level in the reservoir. If necessary, top up the oil level to the upper lip of the reservoir and remove all air from the reservoir (as described above).
Hydraulic or Battery Operated Crimping Tools
Cembre B1300-CE battery crimping tool is an 18.0V cordless hydraulic crimping tool which can be operated with one hand and is balanced for greater control – this tool is the battery operated version of the Cembre HT131-C with a crimping and compression range up to 400sqmm for LVand MV cables up to 33kV.
